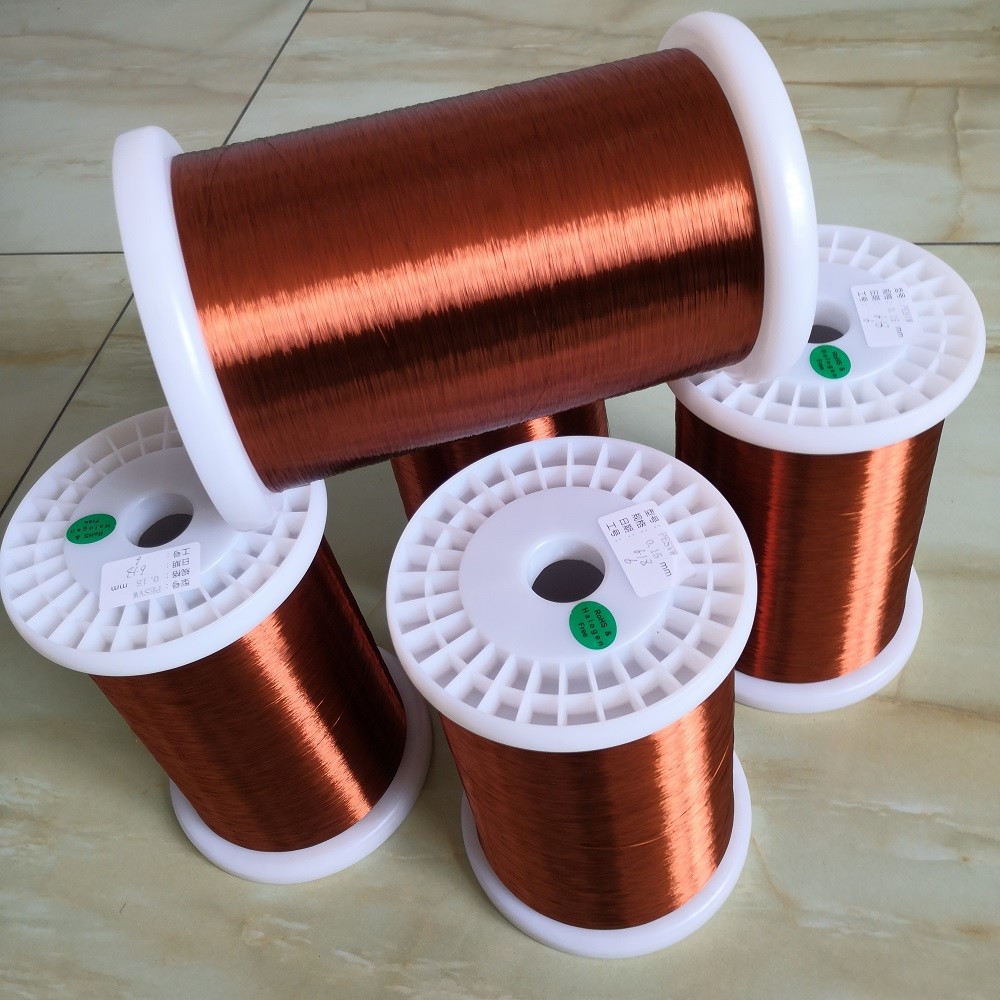

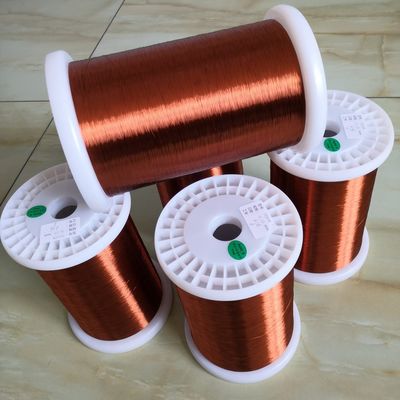

0.075mm Polyesterimide Enameled Copper Wire Ultra Fine Self Bonding Enamelled Wire
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30013550075 | Product Name | 0.075mm Self Bonding Enamelled Wire |
|---|---|---|---|
| Thermal Grade | 180-200 | Standard | IEC,NEMA,JIS |
| Material | High Purity Copper | AWG | 46-19 |
| Color | Red/Green/Blue Or According To Customers | Self Adhesive Layer | Hot Wind/Solvent |
| High Light | 0.075mm Polyesterimide Enameled Copper Wire,CHINGCUNG self bonding copper wire,class200 Polyesterimide Enameled Copper Wire |
||
Product Description
Polyesterimide Enameled Copper Wire 0.075mm Ultra-Fine Self Bonding Enamelled Wire
Features and benefits:
1.Superior "Q" characteristics at high frequencies.
2. Proved high quality and stability
Enameled wire is a main kind of winding wire, which is composedof conductor and insulating layer.The bare wire is annealed and softened, then painted and baked for many times.As a special kind of enameled wires, self bonding enameled wireis easy to be made into coils because of its special processability.The winding coil can be bonded to form after heating or solventtreatment. So the self-bonding enameled wire is very popularand widely used in the manufacturing of various complex or frameless electromagnetic coils.
We supply various types of special self-bonding enameled wiresmainly, including copper-clad aluminum self-bonding wires,alloyself-bonding wires, self-bonding stranded wires, silver-platedwires,240 grade high temperature self-bonding wires,etc. Weproduce all kinds of alloy self-bonding wires of 0.02mm-0.10mm,as well as copper-clad aluminum ultra-high tension self-bonding wires and copper self-bonding wires of 0.04mm-0.90mm.
Specification:
| Model Number | Insulation Material | Conductor Diameter(mm) | Bonding Method |
| EISVWY3-1B/200 | Polyesterimide | 0.04-0.90 | Hot Air |
| EISVWY3-2B/200 | Polyesterimide | 0.04-0.90 | Hot Air |
| EISVWY3-GB/200 | Polyesterimide | 0.04-0.90 | Hot Air |
| EISVWY3-1B/180 | Polyesterimide | 0.04-0.90 | Hot Air |
| EISVWY3-2B/180 | Polyesterimide | 0.04-0.90 | Hot Air |
| EISVWY3-GB/180 | Polyesterimide | 0.04-0.90 | Hot Air |
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.
Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.
Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
