0.12mm Polyesterimide Enameled Copper Wire Class 200 Self Bonding Enameled Wires
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30013550120 | Product Name | Bonding Enameled Copper Wire |
|---|---|---|---|
| Certification | UL/SGS | Diameter | 0.12mm |
| Thermal Class | 180/200 | Coating | Polyesterimide |
| High Light | 0.12mm Polyesterimide Enameled Copper Wire,Class 200 Self Bonding Enameled Wires,CHINGCUNG 1B Polyesterimide Enameled Copper Wire |
||
Product Description

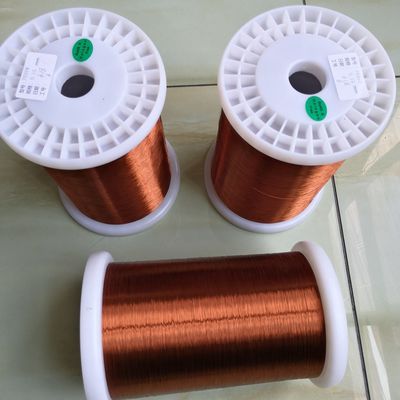

0.12mm Polyesterimide Enamelled Round Copper Class 200 Self Bonding Enameled Wires
Main Applications:
Can be used to make winding wire demanding light material, high electricity conductivity and good heat dispersing performance, especially for the winding wire for transferring high frequency signal, such household appliances as degaussing coil, high frequency transformer, common transformer and small electric motor.
We supply various types of special self-bonding enameled wiresmainly, including copper-clad aluminum self-bonding wires,alloyself-bonding wires, self-bonding stranded wires, silver-platedwires,240 grade high temperature self-bonding wires,etc. Weproduce all kinds of alloy self-bonding wires of 0.02mm-0.10mm,as well as copper-clad aluminum ultra-high tension self-bonding wires and copper self-bonding wires of 0.04mm-0.90mm.
At the same time,we can also customize various.types ofself-bonding enameled wires to meet different national standardsfor customers, according to the technical parameters provided by customers.
Our factory is equipped with automatic manufacturing facilitiesand advanced testing and inspection equipments. We have anumber of patent certificates,strong technical strength.At thesame time, we also have perfect production management system and quality assurance system to maintain the stability and reliability of our products.
Specification:
| Model Number | QZYN-2B/200 | QZYN-2B/180 | EISVWY3-2B/200 | EISVWY3-2B/180 |
| Conductor Diameter(mm) | 0.04-0.90 | 0.04-0.90 | 0.04-0.90 | 0.04-0.90 |
| Thermal Class | 200 | 180 | 200 | 180 |
| Film Grade | 2B | 2B | 2B | 2B |
FAQ:
Q1:What's self-bonding enamelled copper wire?
A:Self-bonding enamelled copper wire is a special type of enamelled wire with an additional adhesive enamel overcoat such as thermoplastic resin. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of self bonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.
Q2:Do you have your own R&D team?
A:Yes, we can customize products as your requirements.
Q3:What's the main market of your company?
A:We have customers all over the world.
Q4:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance, balance before shippment.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
