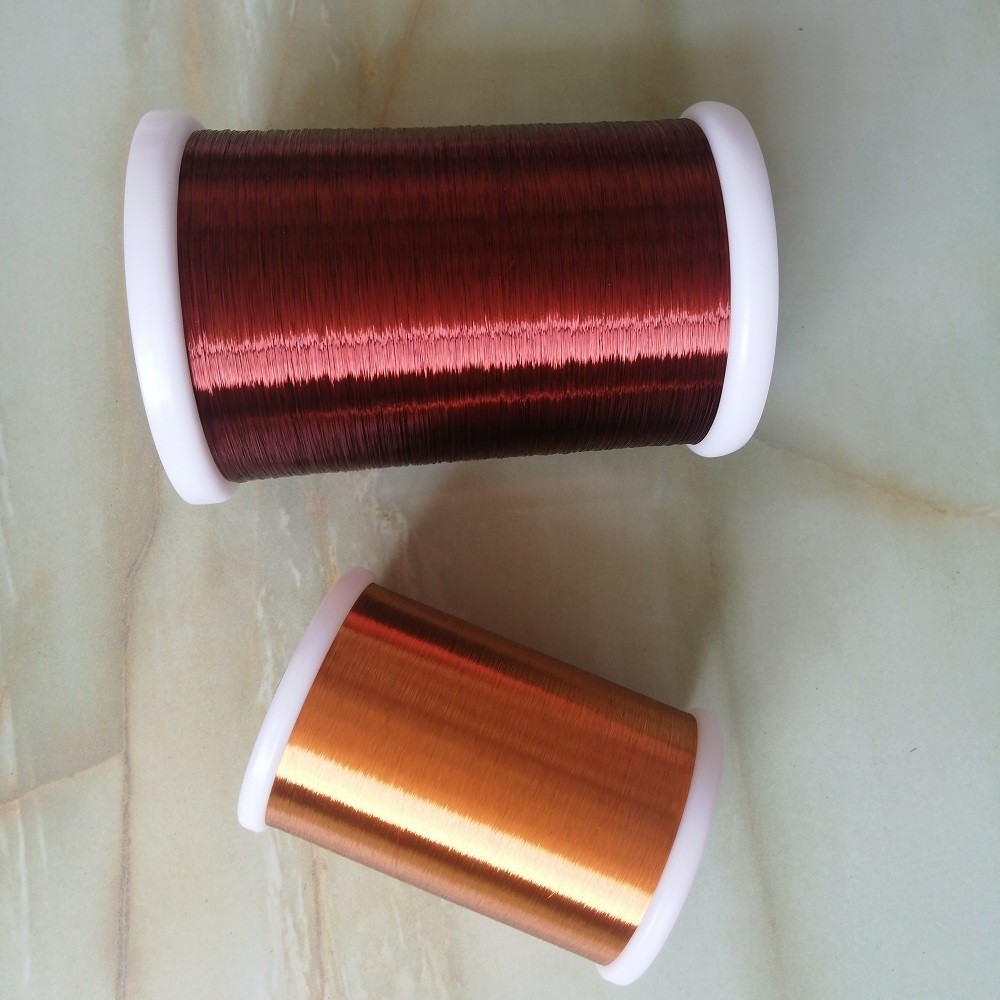

0.12mm Self Bonding Polyurethane Enameled Copper Wire IEC NEMA

  • 0.12mm Self Bonding Polyurethane Enameled Copper Wire IEC NEMA
  • 0.12mm Self Bonding Polyurethane Enameled Copper Wire IEC NEMA
  • 0.12mm Self Bonding Polyurethane Enameled Copper Wire IEC NEMA
Place of Origin Zhejiang, China
Brand Name CHINGCUNG
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number PUSHW-1B/180-0.12
Minimum Order Quantity 30 Kg
Price USD 12.57/Kg
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Order No. 30011380120 Name Enameled Copper Wire
Diameter Of Single Wire 0.12mm Style Solderability
Class 180 Insualtion Polyurethane
High Light

Polyurethane Enameled Copper Wire IEC

,

Round Copper Wires NEMA

,

0.12mm Polyurethane Enameled Copper Wire
Leave a Message
Product Description

0.12mm Self Bonding Solderable Polyurethane Enameled Round Copper Wires IEC NEMA Standard

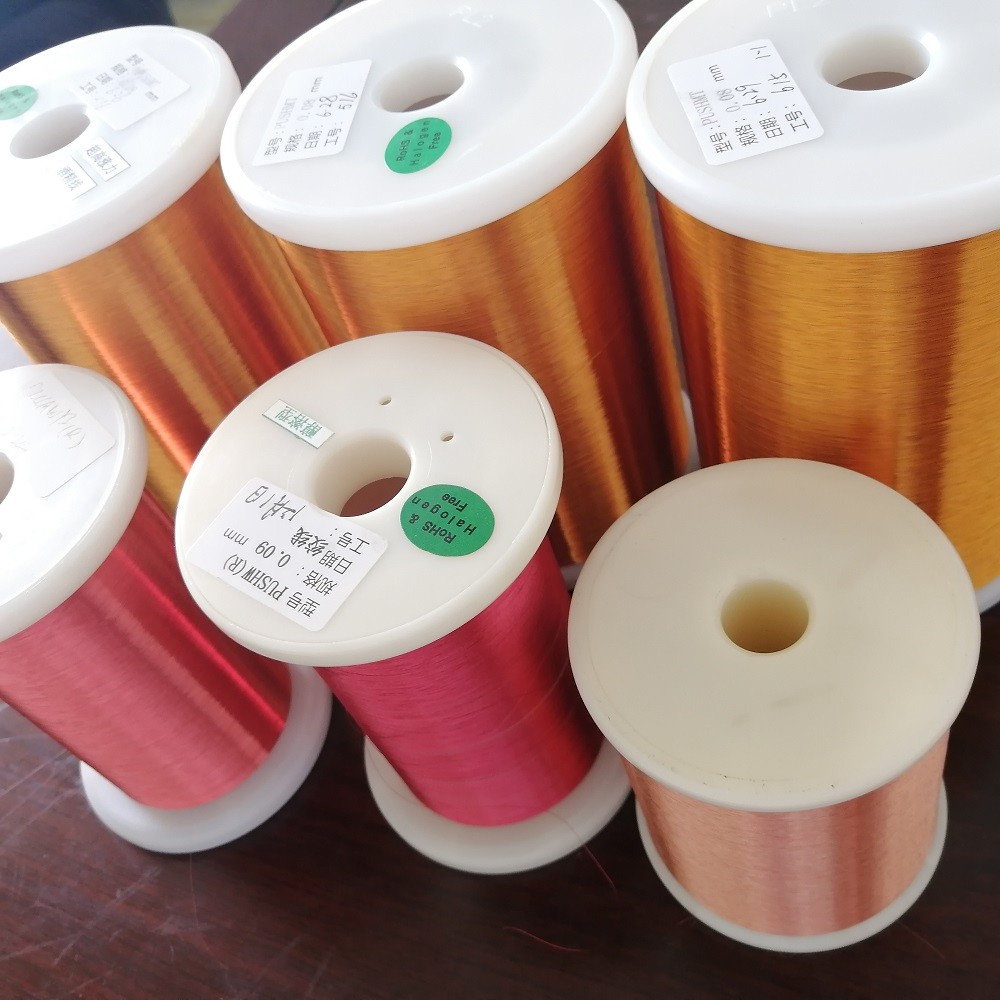

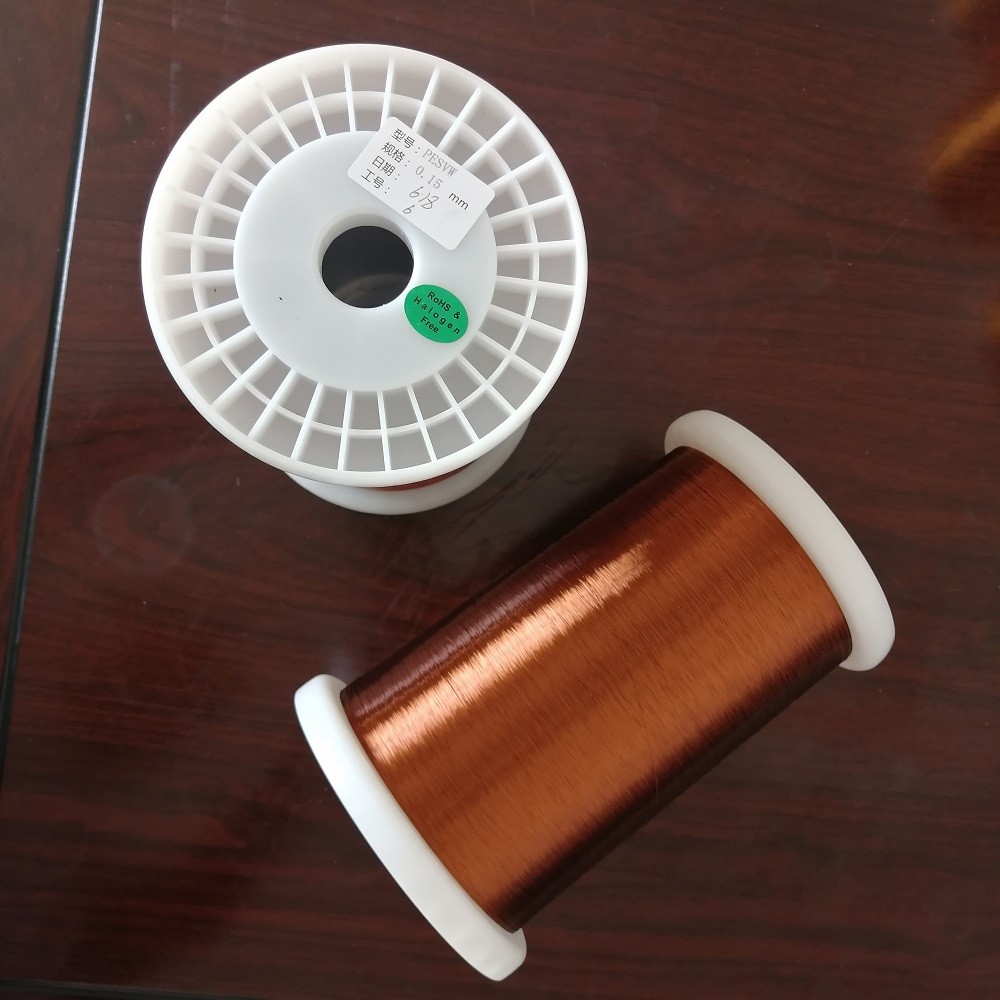

Product Display:
The insulated wire is enameled wire, in itegral molded inductor, SMD inductor, it needs high temperature self bonding wire with hot wind or solvent bonding method



Applications:
Speaker coil, such as microphone, earphone, speaker, hearing aid,Bluetooth audio, speakers, etc.;High-temperature voice coils,such as car audio, home theater, high-power speakers, etc. High-sensitivity voice coils, such as headphone speakers and high-temperature-resistant voice coils;micro vibration motor



Sample testing:
For enameled wire customers, we can provide sample quality testing to ensure that our products can fulfill the customer's production needs before the customer orders.
Product quality:
The production process is subject to fine-meshed control of all product and process parameters. The effectiveness of the quality assurance measures has been confirmed by external auditors repeatedly in numerous certificates.
International certification:
Our products are all up to the international certification standards, and customers who need certification can provide international certification."



Specification(0.180-2.000mm):

Conductor
Diameter
(mm)		 Tolerance±(mm) Min. Increase of Diameter(mm)
Grade1B Grade2B
0.180 0.003 0.013 0.025
0.200 0.003 0.014 0.027
0.224 0.003 0.015 0.029
0.250 0.004 0.017 0.032
0.280 0.004 0.018 0.033
0.315 0.004 0.019 0.035
0.355 0.004 0.020 0.038
0.400 0.005 0.021 0.040
0.450 0.005 0.022 0.042
0.500 0.005 0.024 0.045
0.560 0.006 0.025 0.047
0.630 0.006 0.027 0.050
0.710 0.007 0.028 0.053
0.800 0.008 0.030 0.056
0.900 0.009 0.032 0.060
1.000 0.010 0.034 0.063
1.120 0.011 0.034 0.065
1.250 0.013 0.035 0.067
1.400 0.014 0.036 0.069
1.600 0.016 0.038 0.071
1.800 0.018 0.039 0.073
2.000 0.020 0.040 0.075



FAQ:
Q1:What can we buy from you?
A:Self Bonding Enamelled CCA Wire, Self Bonding Enamelled Aluminum Wire, Self Bonding Enamelled Copper Wire, etc.



Q2:What services can you provide?
A:Accepted Delivery Terms: FOB, CFR, CIF, EXW, DAP;
Accepted Payment Currency: USD, EUR, GBP,CNY;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal.
Language Spoken:English,Chinese



Q3:How long is your delivery time?
A:Generally it is 5-7 days if the goods are in stock, or it is 10-15 days if the goods are not in stock. It also depends on the order quantity.



Q4:How can you guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment.



Q5:How’s the package?
A:Normally are cartons, but also we can pack it according to your requirements.
