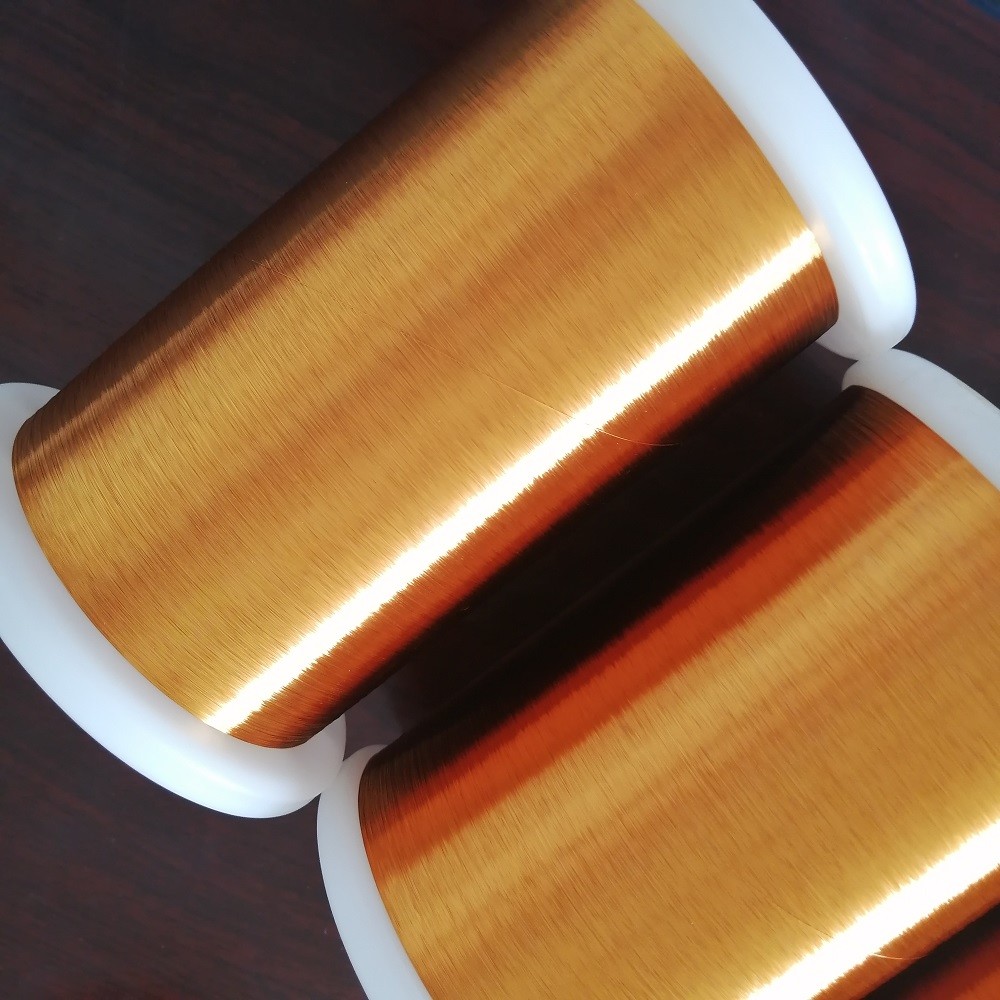

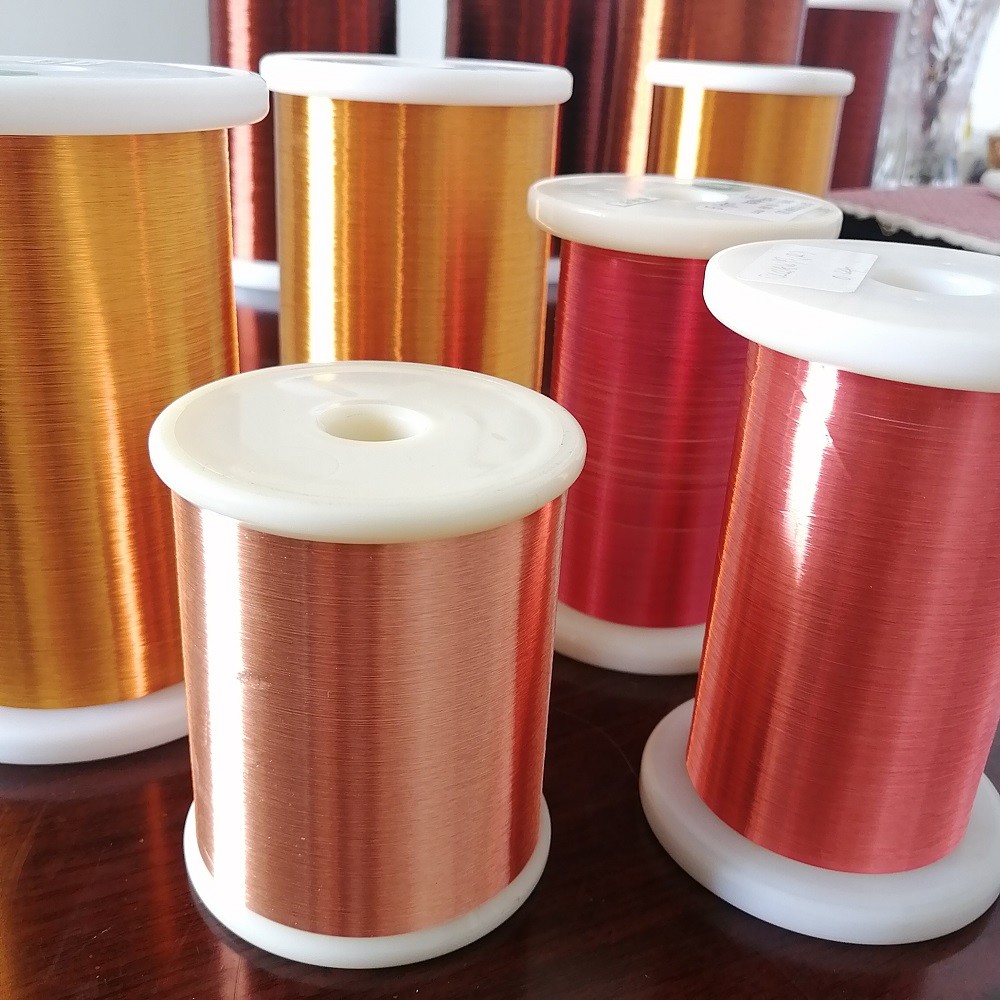

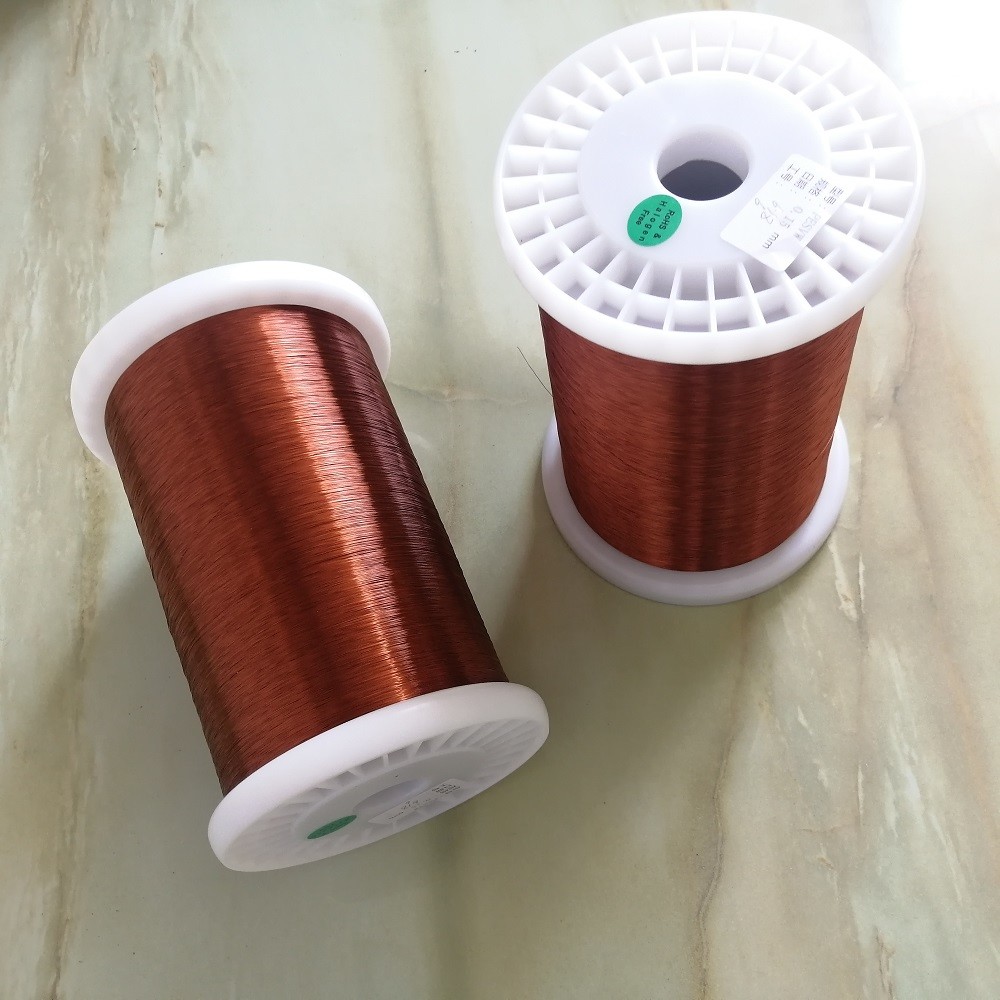

CCA Self Bonding Wires With Polyester Insulation For Magnetic Induction Coils
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | PECCAW-GB/155-0.075 |
| Minimum Order Quantity | 30 Kg |
| Price | USD 222.22/Kg |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30021452075 | Conductor | High Purity Copper/CCA |
|---|---|---|---|
| Bonding Way | Hot Air/Alcohol Soluble | Outer Diameter | 0.075mm |
| Advantage | High Tension Strength | Temperature | Class 155 |
| High Light | CCA Self Bonding Wires,Polyester enamel insulated wire,0.075mm CCA Self Bonding Wires |
||
Product Description
CCA Self Bonding Enameled Wires With Polyester Insulation For Magnetic Induction Coils
Applications of enameled copper clad aluminum wire for coils and windings :
1. High-frequency transformers, general transformers;
2. Induction coils, magnetic coils;
3. Electromotors including household electromotors, a variety of micro-motors, compressors, and other electromotors with high environment requirements.
Features:
By making the micrograph of the section of the test coil, it can be observed that the interturns of the self-adhesive enameled wire coil are firmly glued together after forming.Because of composite self-adhesive coating enameled wire is heated, its outer layer can melt solidification painting, the turn-to-turn bonding layer permeability interact with each other, each other to make wire surface more viscous layer coating, there is no obvious adhesion interface between conductor, it also reduce wire bonding between the parts of stress concentration, to enhance the bond strength.
With the assistance of our advanced technology, we offer quality range of Copper Strips. Manufactured using finest grade of raw material our array is widely used in numerous industries for excellent finish, corrosion resistance and durability. We even custom design these strips and flats as per client specific requirement.
Specification:
| Model Number | PECCAW-1B/155 | PECCAW-2B/155 | PECCAW-GB/155 | PECCAWY3-1B/155 | PECCAWY3-2B/155 | PECCAWY3-GB/155 |
| Conductor Material | Copper Clad Aluminum | Copper Clad Aluminum | Copper Clad Aluminum | Copper Clad Aluminum | Copper Clad Aluminum | Copper Clad Aluminum |
| Film Grade | 1B | 2B | GB | 1B | 2B | GB |
| Bonding Method | Alcohol Soluble | Alcohol Soluble | Alcohol Soluble | Hot Air | Hot Air | Hot Air |
| Insulation Material | modified polyester | modified polyester | modified polyester | modified polyester | modified polyester | modified polyester |
| Shape | Round | Round | Round | Round | Round | Round |
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
