Polyurethane Round Self Bonding Copper Wire High Tension Class 155
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | PUCCAW-GB/155-0.075 |
| Minimum Order Quantity | 30 Kg |
| Price | USD 244.44/Kg |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30021492075 | Size | Customized |
|---|---|---|---|
| OEM | Support | Conductor | Solid |
| Color | Natural Or Pink | Applications | Motor Welding Wire |
| High Light | CHINGCUNG Round self bonding copper wire,0.075mm soldering enameled wire,self bonding copper wire Class 155 |
||
Product Description

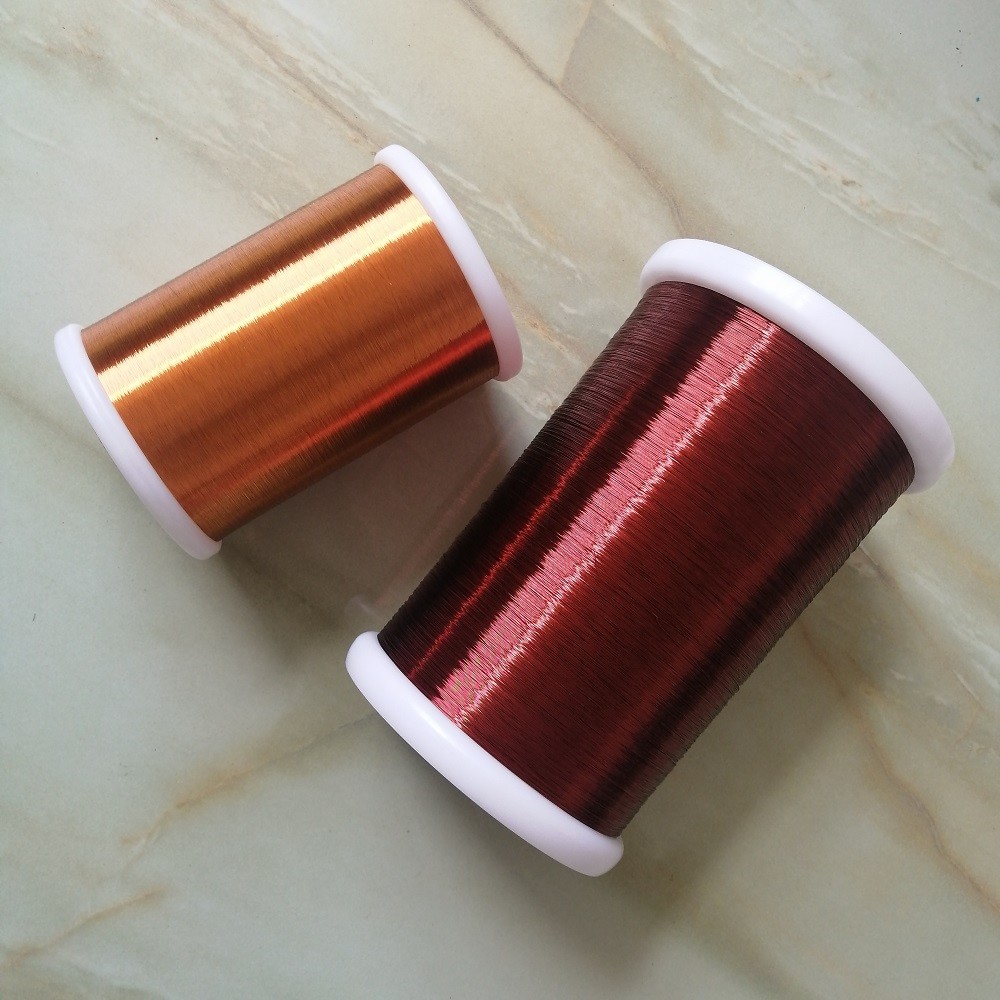

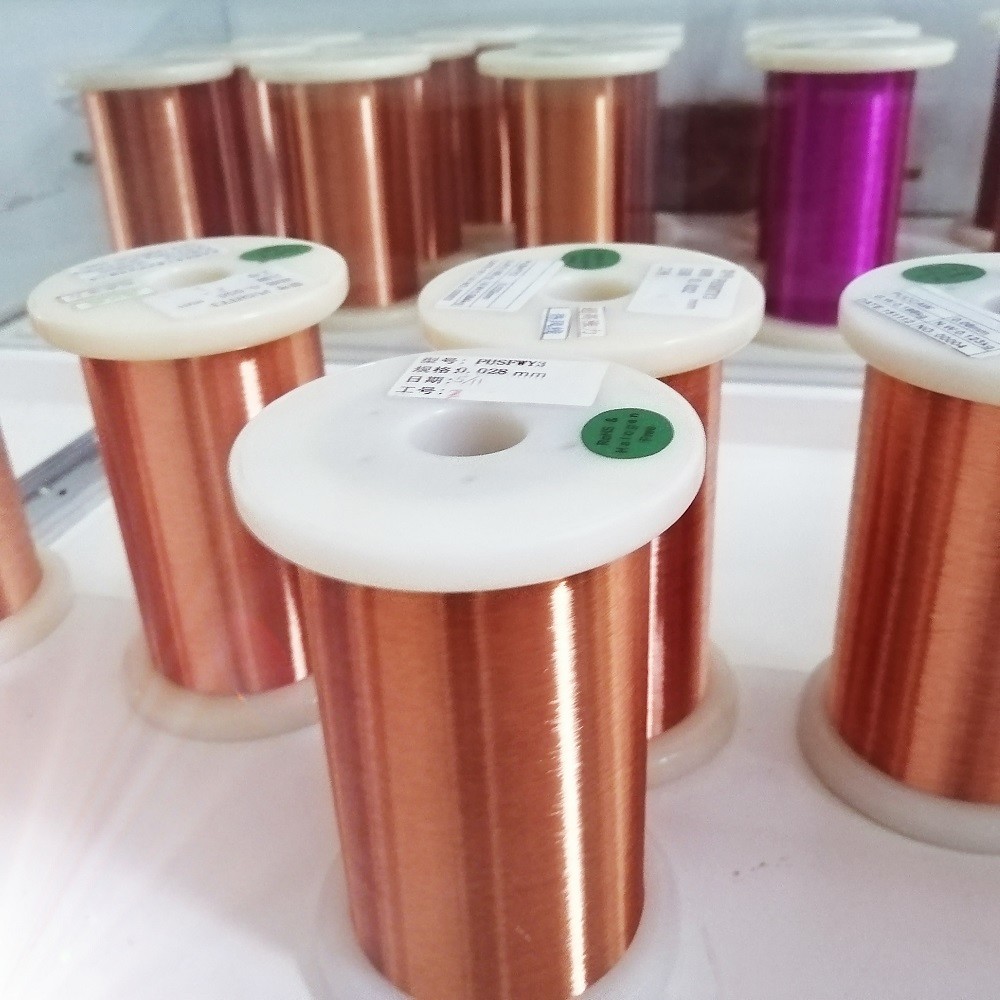

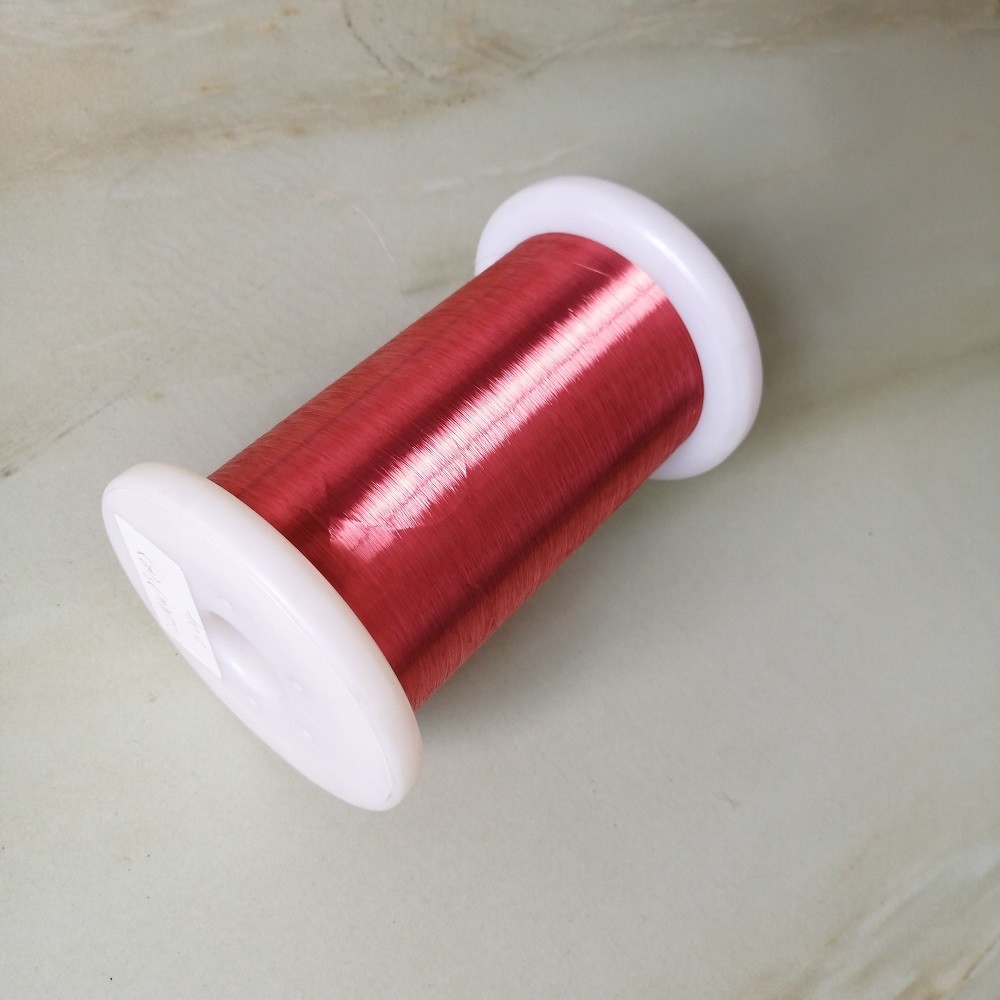

Solderable Polyurethane Round Copper-Clad Aluminium Self Bonding Enameled Wire High Tension Class 155
product presentation:
Enameled wire is a copper or aluminium wire coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.
Product Application
Small transformers, linear motors, relays, solenoids, small motors, clock coils, watch coils,magnetic headsMicrowave transformers;
Windings with light weight, high conductivity, good heat resistance;
Winding used for high frequency signal transmission
Enamelled wire used in small-motor rotor winding .etc.
Magnet wires used in monitor deflection coil;
Magnet wires used in degaussing coil;
Other special magnet wire.
Automotive sensors and coils as relais and ignition coils
Generators,dry-type or oil-immersed
Anti-explosion motor,air-conditioner compressor,washing machine,Magnetic wire used in High Frequency
transformer, common transformer, inductance coils, electromotors, household electromotors and micro-motors;
Military and space applications
Specification:
| Characteristics | Technical requests | Test Results | ||||
| Min. | Ave. | Max. | ||||
| Conductor Diameter | 0.120± | 0.002 | 0.12 | 0.12 | 0.12 | |
| 0.002 | ||||||
| (Basecoat dimensions) | Max. 0.146 mm | 0.144 | 0.144 | 0.145 | ||
| Overall dimensions | ||||||
| Insulation Film Thickness | Min. 0.011 mm | 0.013 | 0.013 | 0.013 | ||
| Bonding Film Thickness | Min. 0.010 mm | 0.011 | 0.011 | 0.012 | ||
| Continulty of covering | Max.60 pcs | Max. 0 | ||||
| Flexibility | / | / | ||||
| Adherence | no crack | Good | ||||
| Breakdown Voltage | Min.3000 V | Min. 4865 | ||||
| Resistance to Softening(Cut through) | Continue 2 times pass | 200℃/Good | ||||
| Solder test(390±5℃) | Max.2s | Max.1.5s | ||||
| Bonding Strength | Min.20g | 35g | ||||
| Electrical Resistance(20℃) | Max.1550Ω/km | 1508 | 1508 | 1509 | ||
| Elongation | Min.26% | 29% | 30% | 30% | ||
| Breaking Load | Min. | / | / | / | ||
| Surface appearance | Smooth | Good | ||||
| Test Result | OK | Conclusion | Approved | |||
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
