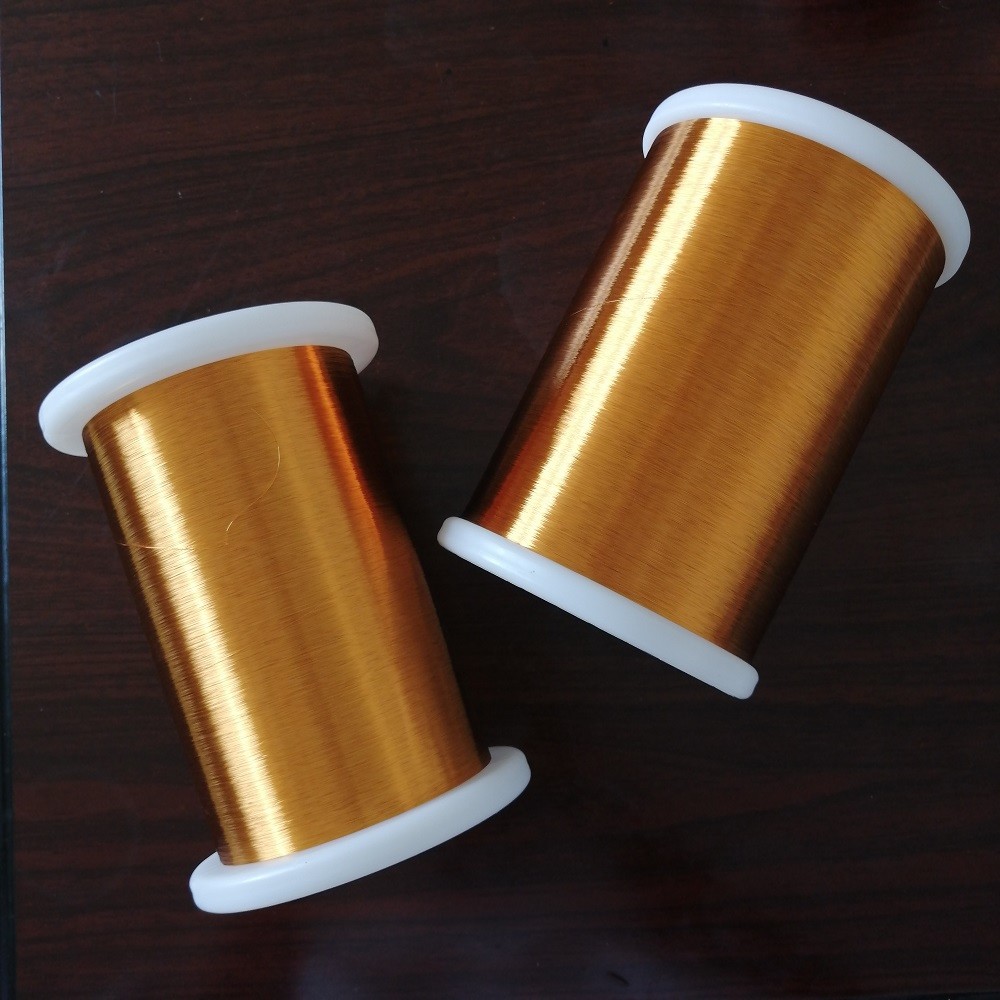

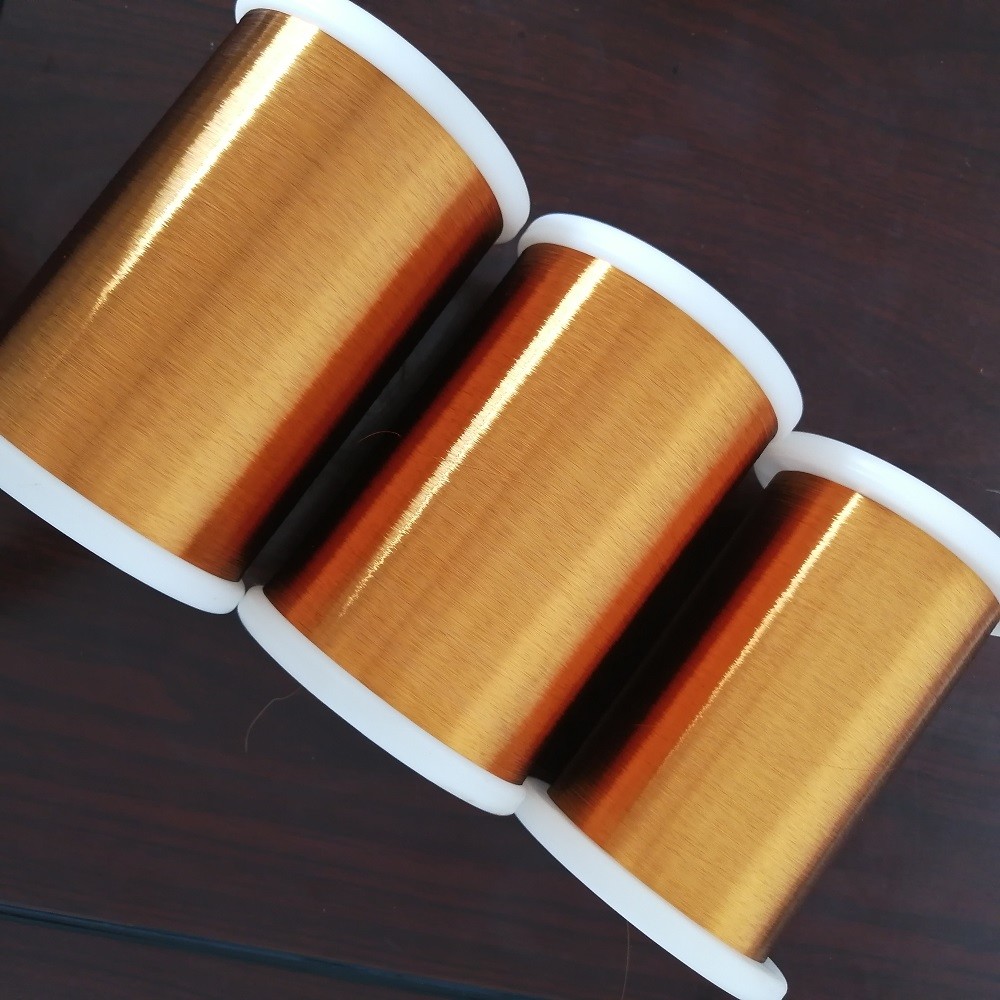

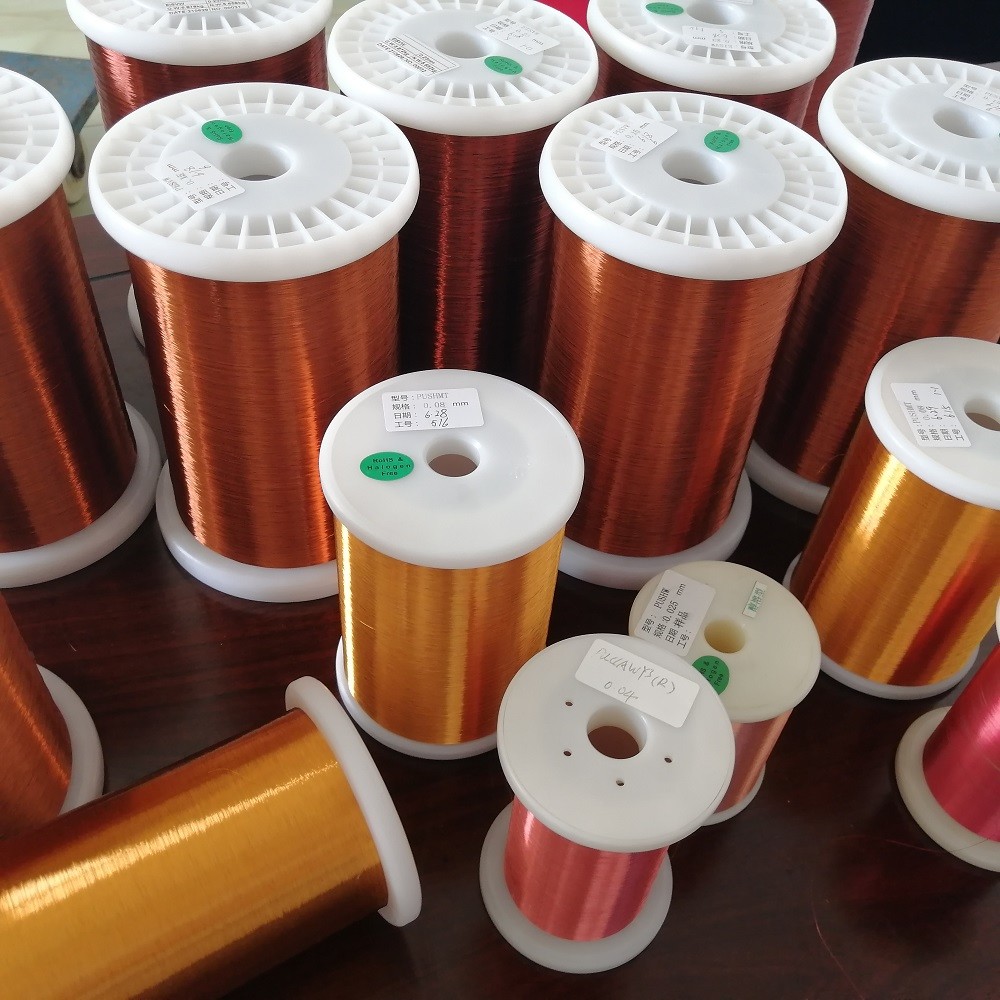

Self Adhesive Polyurethane CCA Enameled Round Copper Wire 0.085mm Class 130/155

  • Self Adhesive Polyurethane CCA Enameled Round Copper Wire 0.085mm Class 130/155
  • Self Adhesive Polyurethane CCA Enameled Round Copper Wire 0.085mm Class 130/155
  • Self Adhesive Polyurethane CCA Enameled Round Copper Wire 0.085mm Class 130/155
Place of Origin Zhejiang, China
Brand Name CHINGCUNG
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number PUCCAW-GB/155-0.085
Minimum Order Quantity 30 Kg
Price USD 170/Kg
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Order No. 30021492085 Product Name Solderable Enameled Copper Clad Aluminum Wire
Size Range 0.012 - 0.8mm Application Speaker Voice Coil
Type Hot Air/Alcohol Soluble Insualtion Type UEW
High Light

CHINGCUNG enameled round copper wire 0.085mm

,

Polyurethane CCA wire

,

enameled round copper wire Class 130
Leave a Message
Product Description

Self Adhesive Polyurethane CCA Enameled Round Wire 0.085mm Class 130/155



FEATURES:
1. Temperature Rate: 155/180/220℃
2. Twotypes of self-bonding materials and can be processed with either alcohol,heat or electric methods. The alcohol must be removed from the coil to ensure the long term insulation degradatoin does not occur. The wire has unifor lubrication and good winding property
3. We also provider solderable wires to save process time for customers
4. Size range:0.015-0.6mm



Why do enamelled aluminium wires fail to bond properly?
During the use of enameled aluminum wire, cracking, patent leather or cracking may occur, it collectively referred to as adhesion problems for the following reasons:
1. The first coat of paint is too thin
2. The thickness of the paint is not uniform, one side is thick, the other side is thin.
3. Paint film thickness uneven at different courses.
4. The speed of the machine is not suitable, resulting in insufficient curing or over curing
5. The material problem of the insulating paint itself.
6.The diameter of enameled aluminum wire is not round.
That is all the reasons we often meet with the unqualified adhesion of enameled aluminum wire.





Specification:

Nominal Diameter mm Tolerance Min. Increase of Diameter Max. Overall Diameter Breakdown Voltage Elongation Pin Hole Electrical Resistance

mm ≥ V ≥% ≤Default/5m Ω/km (20℃)
  Mandrel Method Twisted Method     Min. Max.
0.4 ±0.004 0.025 0.437 ---- 2900 27 5 132.2 140
0.41 ±0.004 0.025 0.447 ---- 2900 27 5 125.9 133.2
0.44 ±0.004 0.025 0.477 ---- 2900 27 5 109.5 115.5
0.45 ±0.004 0.025 0.487 ---- 2900 27 5 104.7 110.4
0.47 ±0.004 0.026 0.508 ---- 3100 27 5 96.05 101.1
0.5 ±0.004 0.026 0.539 ---- 3100 27 5 84.96 89.23
0.55 ±0.004 0.027 0.59 ---- 3300 28 5 70.31 73.64
0.6 ±0.005 0.027 0.64 ---- 3500 28 5 58.96 62.01
0.65 ±0.005 0.027 0.69 ---- 3500 28 5 50.3 52.77
0.7 ±0.005 0.029 0.742 ---- 3500 28 5 43.42 45.45
0.75 ±0.005 0.03 0.794 ---- 3800 28 5 37.86 39.55
0.8 ±0.005 0.032 0.846 ---- 3800 28 5 33.3 34.73



FAQ:
Q1:What can we buy from you?
A:Self Bonding Enamelled CCA Wire, Self Bonding Enamelled Aluminum Wire, Self Bonding Enamelled Copper Wire, etc.



Q2:What services can you provide?
A:Accepted Delivery Terms: FOB, CFR, CIF, EXW, DAP;
Accepted Payment Currency: USD, EUR, GBP,CNY;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal.
Language Spoken:English,Chinese



Q3:How long is your delivery time?
A:Generally it is 5-7 days if the goods are in stock, or it is 10-15 days if the goods are not in stock. It also depends on the order quantity.



Q4:How can you guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment.



Q5:How’s the package?
A:Normally are cartons, but also we can pack it according to your requirements.
