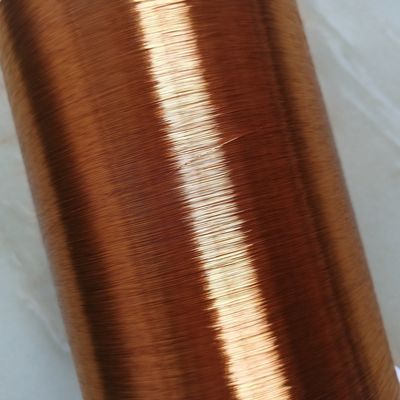

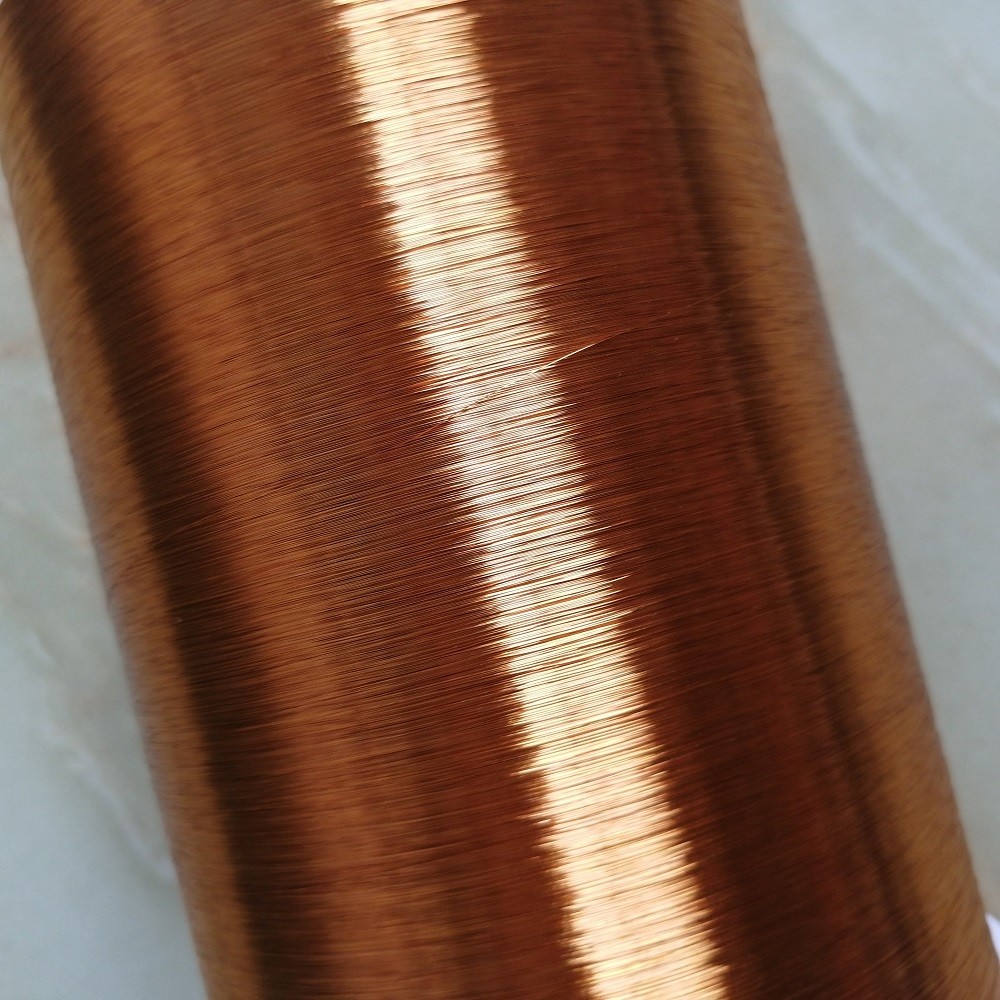

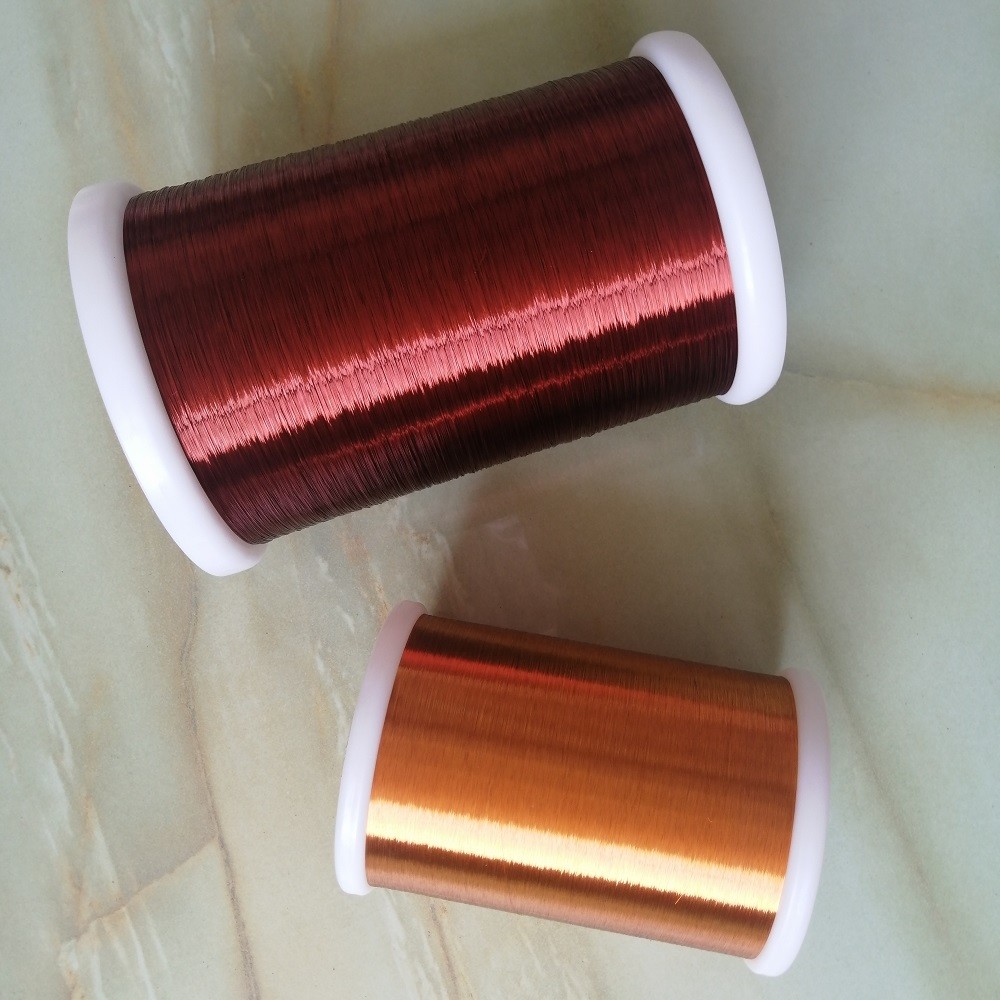

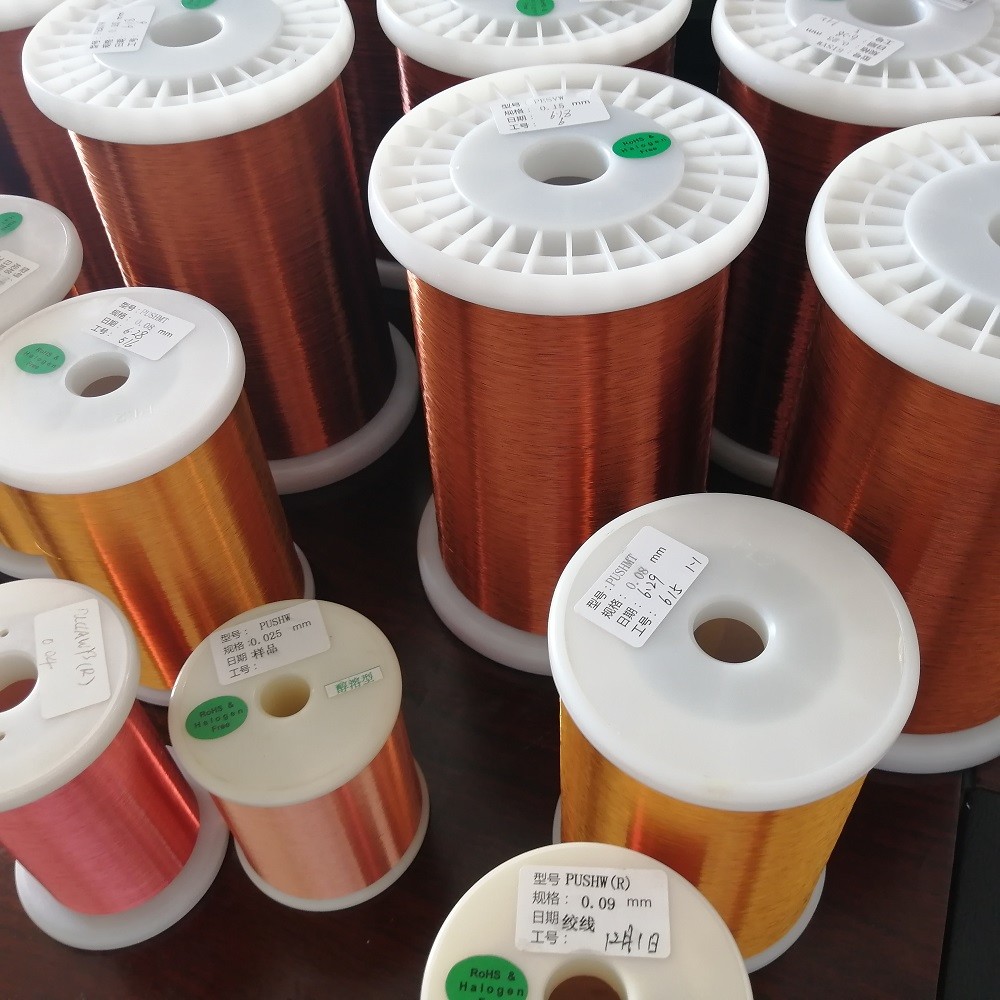

0.1mm Self Bonding Wire Hot Air Solderable Enameled Copper Wire IEC NEMA
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | PUCCAW-GB/155-0.1 |
| Minimum Order Quantity | 30 Kg |
| Price | USD 128.89/Kg |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30021492100 | Product Name | Solderable Polyurethane Clad Aluminum Wires |
|---|---|---|---|
| Self Adhesive Layer | UEW | Shape | Round |
| MOQ | 5kg And Above | Advantage | Excellent Film Adhesion |
| High Light | 0.1mm Self Bonding Wire,CHINGCUNG 38 awg magnet wire IEC,Self Bonding Wire NEMA |
||
Product Description
0.1mm Self Bonding Wire Hot Air Solderable Enameled Copper Wire IEC NEMA Standard
product presentation:
Enamelled aluminum round wire is a type of winding wire made by electric round aluminum rod which drawn by dies with special size, then over coated with enamel repetitiously.
A special type of enamelled wire is self bonding wire. Self bonding wire is an enamelled wire with an additional adhesive enamel overcoat. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil.
Our main application fields incude:
High temperature resistant self-bonding wires for aviation; Self-bonding wires for speakersin cars, voice coils, telephones and computers; Self-bondingwires for motors in medical instruments, precision instruments,electric tools, household appliances and robots, etc.
At the same time,we can also customize various.types ofself-bonding enameled wires to meet different national standardsfor customers, according to the technical parameters provided by customers.
Our factory is equipped with automatic manufacturing facilitiesand advanced testing and inspection equipments. We have anumber of patent certificates,strong technical strength.At thesame time, we also have perfect production management system and quality assurance system to maintain the stability and reliability of our products.
SPECIFICATION:
| Name | UEW Ultra Thin Copper Wire Enameled Copper Wire Self Bonding Wire |
| Type | QA-1-2/130, QA-1-2/155, QA-1-2/180 |
| Diameter | ф0.018mm--ф2.500mm (QA-1-2/130) |
| ф0.040mm--0.450mm (QA-1-2/130) | |
| ф0.018mm--ф1.500mm (QA-1-2/155) | |
| ф0.020mm--ф1.000mm (QA-1-2/180) | |
| Thermal class | B 130 ºC, F 155 ºC, H 180 ºC |
| Standard | GB/T6109.1-2008 |
| GB/T6109.10-2008 | |
| GB/T6109.2-2008 | |
| IEC6031-20, NEMA, JIS C3202 available. | |
| Application | 1.Applicable to the production of higher temperature motor. 2.Electrical winding coil. Can be used for relays, micro-motor, small |
| transformers, ignition coil, water valve, communication equipment with the coil. | |
| 2. Due to direct welding property,widely applied | |
| to electrical and communications equipment which with more welding hear operating and complex circuit . The enameled wire of the | |
| special thick film can be used for vertical and low voltage coils in color TV. Applicable to relays, micro-motors, small | |
| transformers and communications equipment. | |
| Feature | 1.Has good flexibility |
| 2.Excellent insulation properties | |
| 3.Direct welding performance | |
| 4.High frequency performance, good moisture | |
| resistance. | |
| 5.Can be colored. |
FAQ:
Q1:What's self-bonding enamelled copper wire?
A:Self-bonding enamelled copper wire is a special type of enamelled wire with an additional adhesive enamel overcoat such as thermoplastic resin. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of self bonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.
Q2:Do you have your own R&D team?
A:Yes, we can customize products as your requirements.
Q3:What's the main market of your company?
A:We have customers all over the world.
Q4:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance, balance before shippment.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
