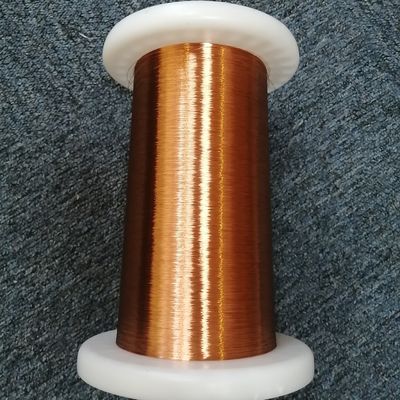

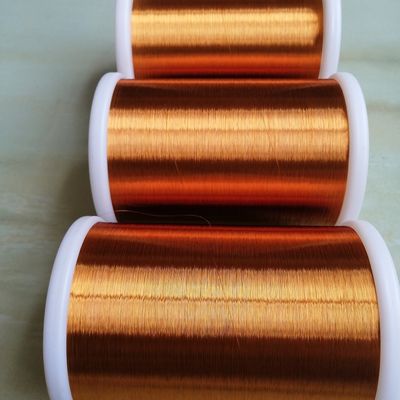

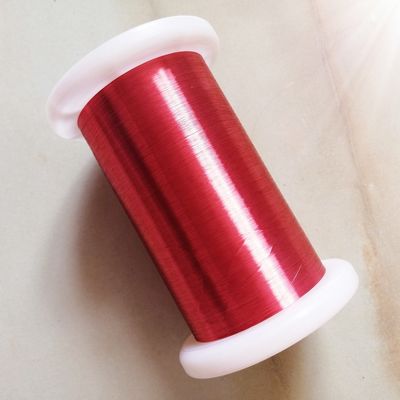

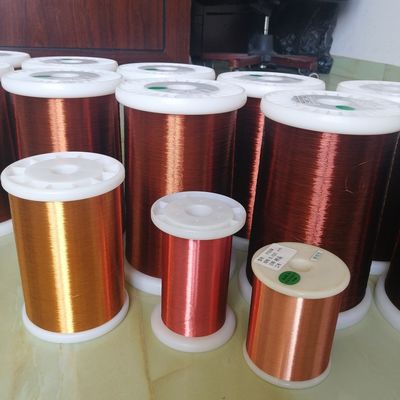

0.05mm Enamelled Copper Wire With Self Bonding Layer Class 200/220 For Small Motor

  • 0.05mm Enamelled Copper Wire With Self Bonding Layer Class 200/220 For Small Motor
  • 0.05mm Enamelled Copper Wire With Self Bonding Layer Class 200/220 For Small Motor
  • 0.05mm Enamelled Copper Wire With Self Bonding Layer Class 200/220 For Small Motor
  • 0.05mm Enamelled Copper Wire With Self Bonding Layer Class 200/220 For Small Motor
Place of Origin Zhejiang, China
Brand Name CHINGCUNG
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number AISVW-1B/200-0.05
Minimum Order Quantity 30 Kg
Price Negotiation
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Order No. 30011210050 Coating Polyamideimide Composite Polyester
Type Magnet Copper Wire Bond Coat Alcohol Soluble
Advantage Factory Supplies Standard IEC
High Light

0.05mm Enamelled Copper Wire

,

Small motor 44 awg magnet wire

,

Class 200 Enamelled Copper Wire
Leave a Message
Product Description

                                         Enamelled Copper Wire With Self Bonding Layer 0.05mm Class 200/220 For Small Motor


Product :
Self bonding wire can be supplied with different conductor materials such as selfbonding copper clad aluminum wire, selfbonding aluminum wire etc.

We supply various types of special self-bonding enameled wiresmainly, including copper-clad aluminum self-bonding wires,alloyself-bonding wires, self-bonding stranded wires, silver-platedwires,240 grade high temperature self-bonding wires,etc. Weproduce all kinds of alloy self-bonding wires of 0.02mm-0.10mm,as well as copper-clad aluminum ultra-high tension self-bonding wires and copper self-bonding wires of 0.04mm-0.90mm.
At the same time,we can also customize various.types ofself-bonding enameled wires to meet different national standardsfor customers, according to the technical parameters provided by customers.
Our factory is equipped with automatic manufacturing facilitiesand advanced testing and inspection equipments. We have anumber of patent certificates,strong technical strength.At thesame time, we also have perfect production management system and quality assurance system to maintain the stability and reliability of our products.

Specification(0.180-2.000mm):

Conductor
Diameter
(mm)		 Tolerance±(mm) Min Increase of Diameter With Bonding Film(mm) Overall diameter(mm)
Grade1B Grade2B
0.180 0.003 0.010 0.220 0.233
0.200 0.003 0.011 0.243 0.256
0.224 0.003 0.012 0.270 0.284
0.250 0.004 0.013 0.300 0.316
0.280 0.004 0.013 0.331 0.348
0.315 0.004 0.014 0.369 0.387
0.355 0.004 0.015 0.413 0.432
0.400 0.005 0.016 0.461 0.481
0.450 0.005 0.016 0.514 0.536
0.500 0.005 0.017 0.568 0.590
0.560 0.006 0.017 0.630 0.654
0.630 0.006 0.018 0.704 0.729
0.710 0.007 0.019 0.788 0.815
0.800 0.008 0.020 0.882 0.911
0.900 0.009 0.020 0.987 1.017
1.000 0.010 0.021 1.091 1.123
1.120 0.011 0.022 1.214 1.247
1.250 0.013 0.022 1.346 1.379
1.400 0.014 0.023 1.499 1.533
1.600 0.016 0.023 1.702 1.738
1.800 0.018 0.024 1.905 1.942
2.000 0.020 0.025 2.108 2.146



FAQ:
Q1:What's self-bonding enamelled copper wire?
A:Self-bonding enamelled copper wire is a special type of enamelled wire with an additional adhesive enamel overcoat such as thermoplastic resin. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of self bonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.



Q2:Do you have your own R&D team?
A:Yes, we can customize products as your requirements.



Q3:What's the main market of your company?
A:We have customers all over the world.



Q4:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance, balance before shippment.



Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
