0.07mm Enamelled Round Copper Wire Self Adhesive Polyamideimide Composite Polyester
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30011210070 | Diameter | 0.04-0.90mm |
|---|---|---|---|
| Conductor Material | High Purity Copper | Type | Insulated |
| Standard | JIS/IEC/NEMA | Color | Natural And More |
| Usage | Winding Wire | Class | 200 |
| High Light | 0.07mm Enamelled Round Copper Wire,class 200 enamel coated copper wire,1B Enamelled Round Copper Wire |
||
Product Description

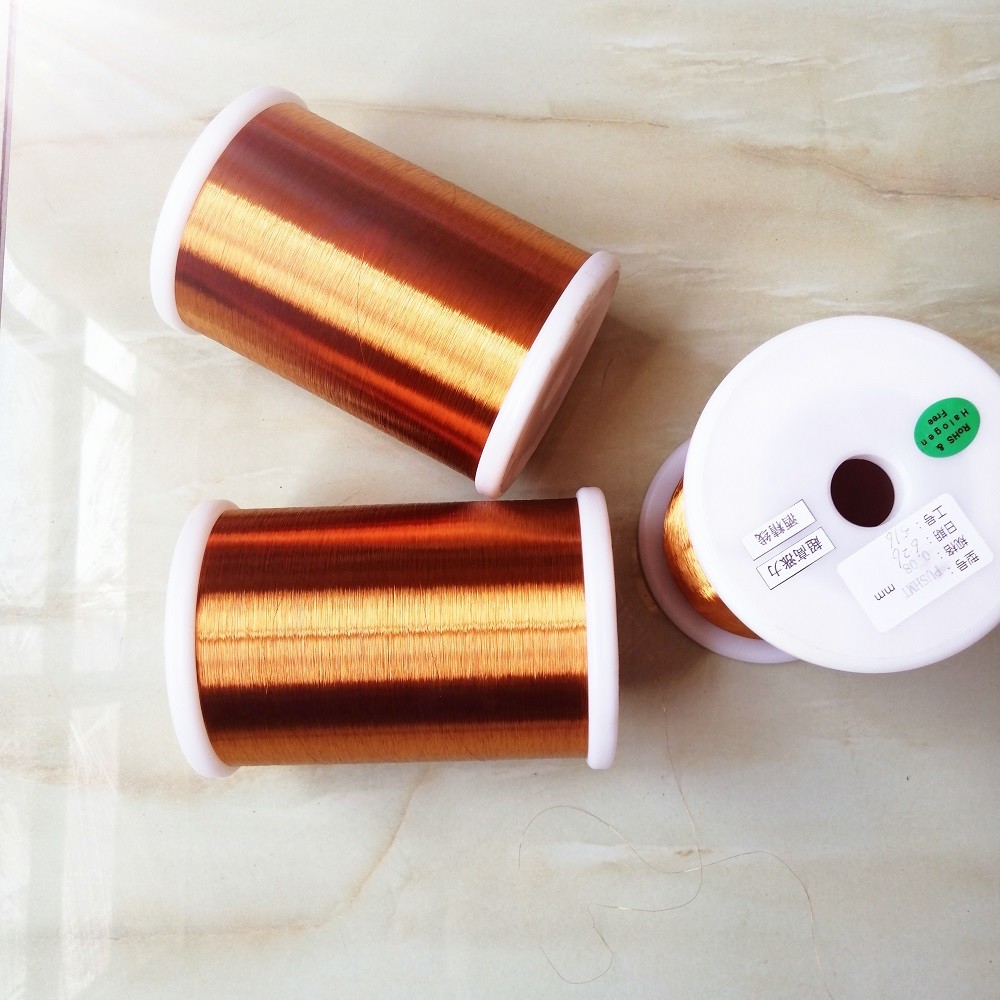

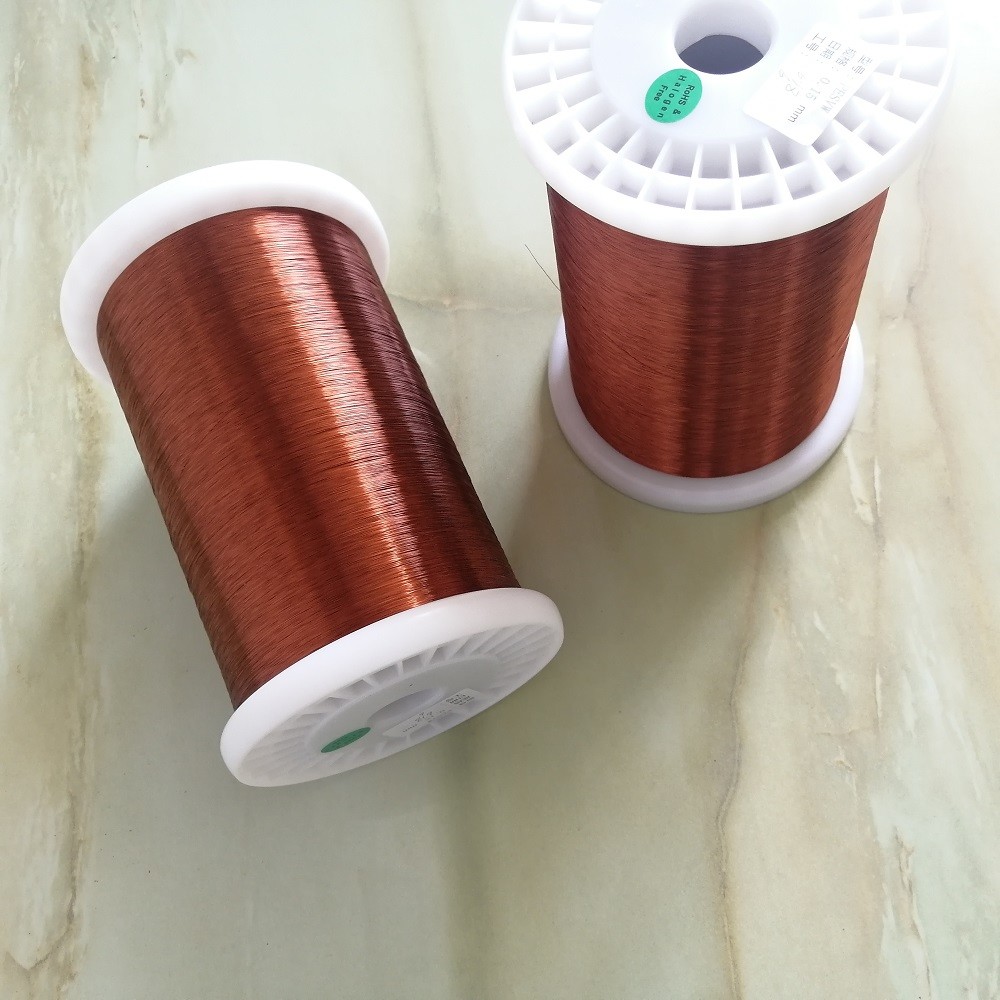

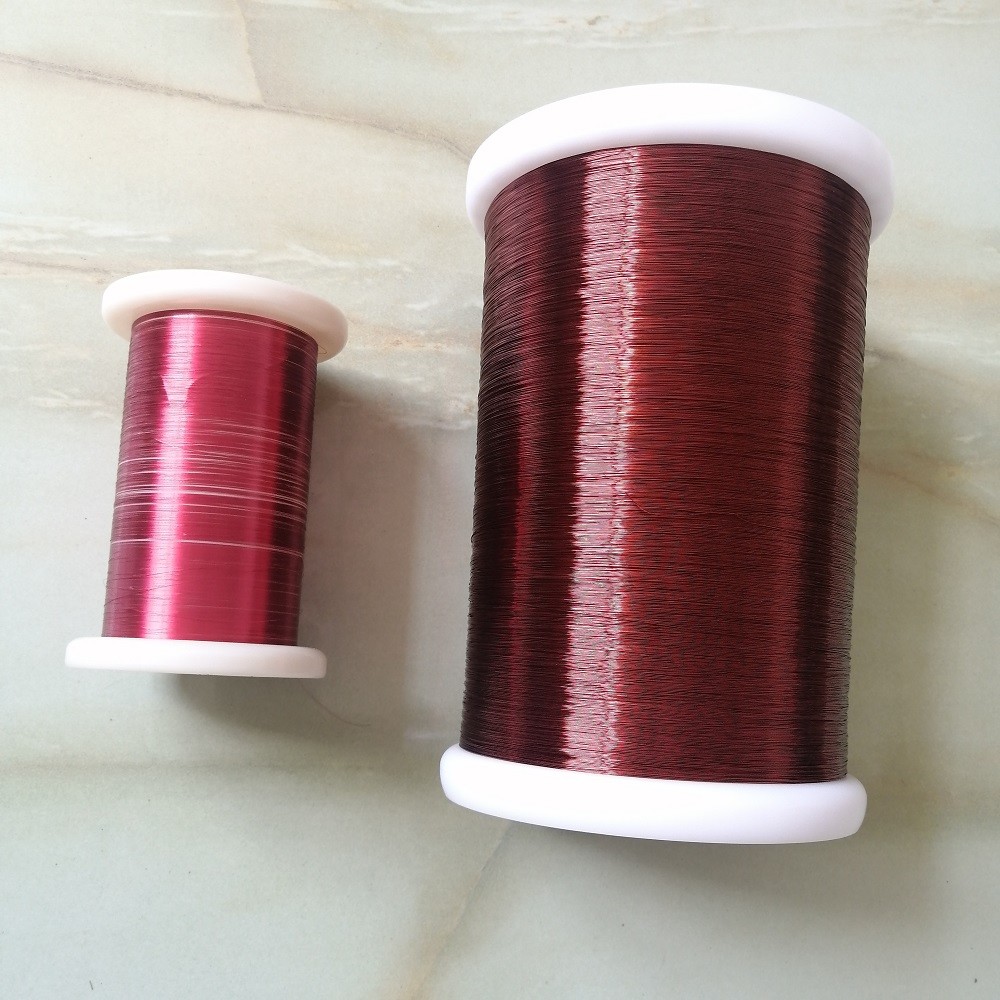

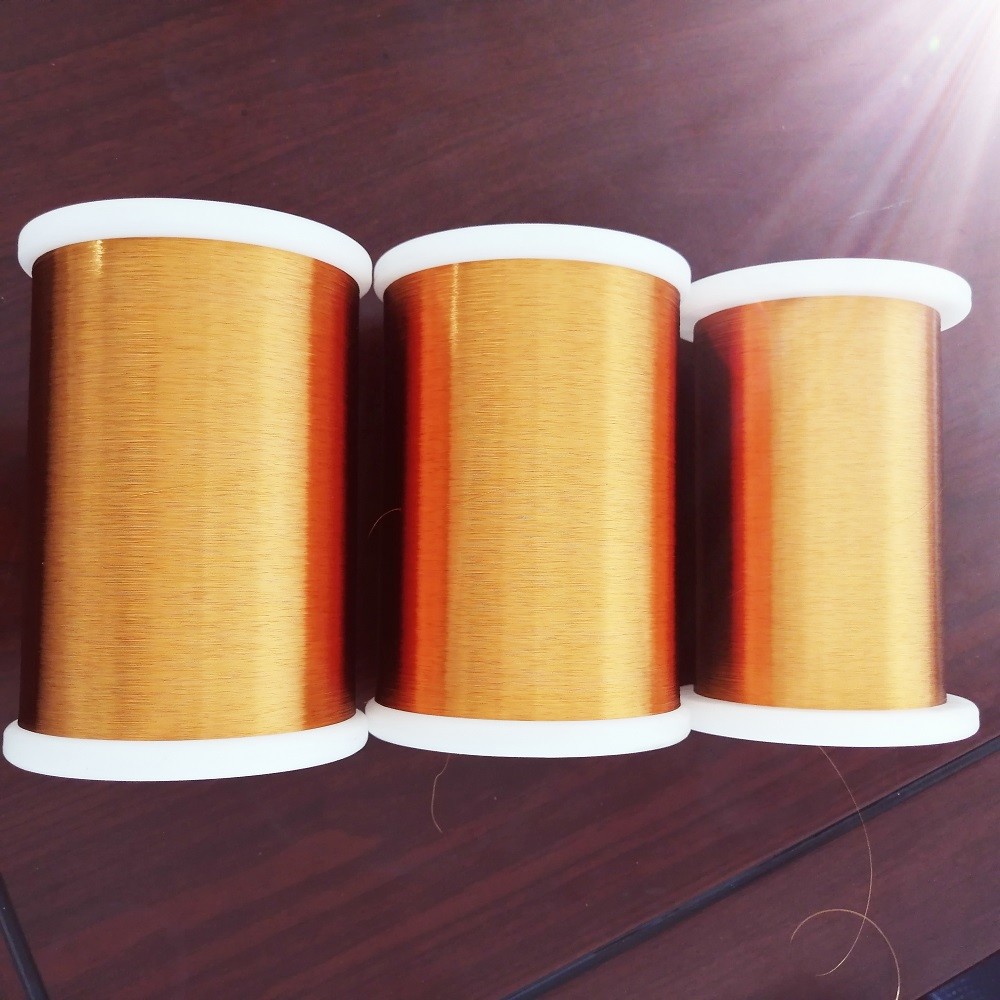

Enamelled Round Copper Wire Self Adhesive polyamideimide composite polyester 0.07mm
FEATURES:
1. Size range:0.04-0.9mm
2. Two types of self-bondnig maetrials and ca be processed with either alcohol,heat or electric methods.
3. Temperature Rate: 155/180/220℃
4. We also provider solderable wires to save process time for customers
Applications:
This product has excellent properties of solvent resistance,mechanical property, heat resistance, cut through testing and easy coloring,widely used in special motors.electrial apparatus and household electrical appliances.4. We also provider solderable wires to save process time for customers
Specification:
| Model Number | Conductor Diameter(mm) | Bonding Method | Thermal Class |
| AISVWY3-1B/200 | 0.04-0.90 | Hot Air | 200 |
| AISVWY3-2B/200 | 0.04-0.90 | Hot Air | 200 |
| AISVWY3-GB/200 | 0.04-0.90 | Hot Air | 200 |
| AISVWY3-1B/220 | 0.04-0.90 | Hot Air | 220 |
| AISVWY3-2B/220 | 0.04-0.90 | Hot Air | 220 |
| AISVWY3-GB/220 | 0.04-0.90 | Hot Air | 220 |
FAQ:
Q1:What can we buy from you?
A:Self Bonding Enamelled CCA Wire, Self Bonding Enamelled Aluminum Wire, Self Bonding Enamelled Copper Wire, etc.
Q2:What services can you provide?
A:Accepted Delivery Terms: FOB, CFR, CIF, EXW, DAP;
Accepted Payment Currency: USD, EUR, GBP,CNY;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal.
Language Spoken:English,Chinese
Q3:How long is your delivery time?
A:Generally it is 5-7 days if the goods are in stock, or it is 10-15 days if the goods are not in stock. It also depends on the order quantity.
Q4:How can you guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q5:How’s the package?
A:Normally are cartons, but also we can pack it according to your requirements.
