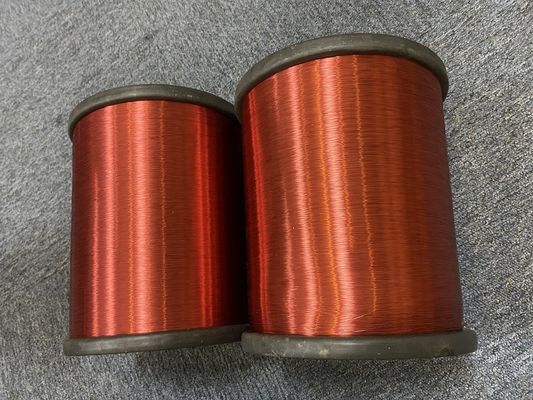

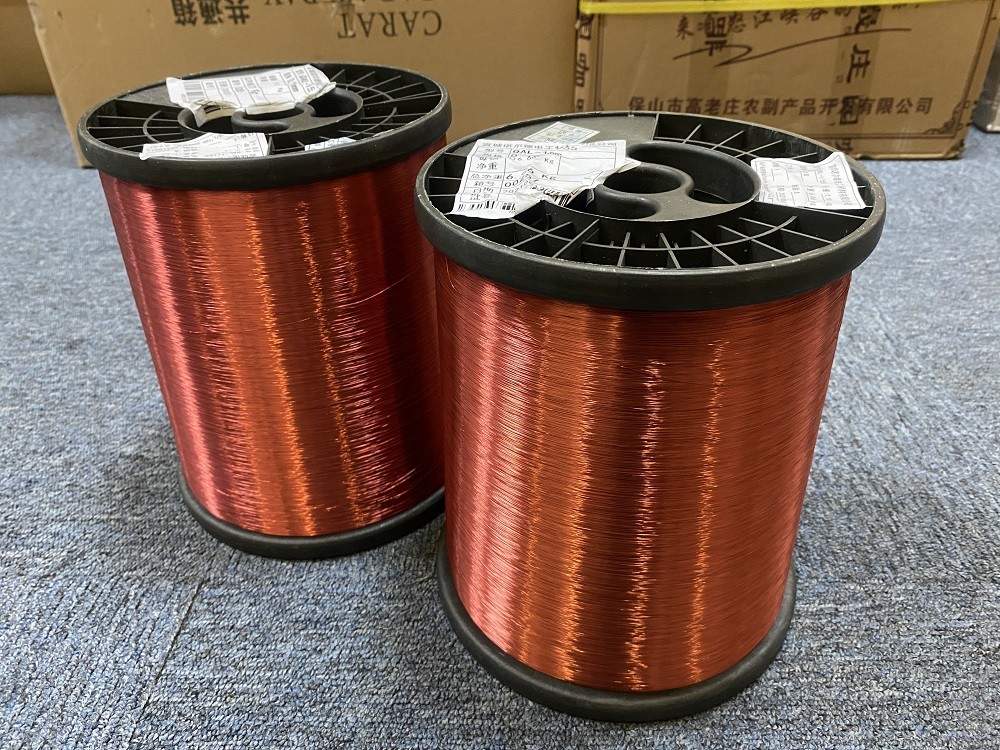

Solvent EIW Self Bonding Enameled Copper Wire For Magnetic Induction Coils
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30013550200 | Product Name | 200° EIW Self Adhesive Enamelled Wires |
|---|---|---|---|
| Size | 0.20mm | Standard | NEMA IEC JIS GB |
| Usage | Coils, Windings, Voice Coils | Feature | High Breakdown Voltage |
| Color | Red/Green/Blue/Normal | Film Grade | 1B 2B GB |
| High Light | Solvent EIW Enameled Copper Wire,0.20mm enamel insulated copper wire,CHINGCUNG Self Bonding Enameled Copper Wire |
||
Product Description
Solvent EIW Self Bonding Enameled Copper Wire For Magnetic Induction Coils
Product Description:
Self-adhesive enameled wire is a kind of more than two coating and composite coating enameled wire, at present, since the glue line is widely used in the tube, acoustics, micro motor, induction cooker, etc., according to different requirements and purposes, the selection and matching of the paint is very important, at the end of most current with polyurethane (PU) coating, modified polyester (M - PE), polyester imide (PEI).
Our main application fields incude:
High temperature resistant self-bonding wires for aviation; Self-bonding wires for speakersin cars, voice coils, telephones and computers; Self-bondingwires for motors in medical instruments, precision instruments,electric tools, household appliances and robots, etc.
At the same time,we can also customize various.types ofself-bonding enameled wires to meet different national standardsfor customers, according to the technical parameters provided by customers.
Specification:
| Test Items | Requirements | Test Data | |
| 1st Sample | 2nd Sample | ||
| Appearance | Smooth & Clean | OK | OK |
| Conductor Diameter | 0.045mm ±0.001mm | 0.045 | 0.045 |
| Thickness of Insulation | ≥ 0.006 mm | 0.009 | 0.008 |
| Overall Diameter | ≤ 0.056 mm | 0.054 | 0.053 |
| DC Resistance | ≤ 11.339 Ω/m | 10.74 | 10.698 |
| Elongation | ≥ 11% | 22 | 20 |
| Breakdown Voltage | ≥350 V | 1764 | 1567 |
| Pin Hole | ≤ 5(faults)/5m | 0 | 0 |
| Adherence | No cracks visible | OK | OK |
| Cut-through | 200℃ 2min No breakdown | OK | OK |
| Heat Shock | 175±5℃/30min No cracks | OK | OK |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK |
| Insulation Continuity | / | / | / |
FAQ:
Q1:What can we buy from you?
A:Self Bonding Enamelled CCA Wire, Self Bonding Enamelled Aluminum Wire, Self Bonding Enamelled Copper Wire, etc.
Q2:What services can you provide?
A:Accepted Delivery Terms: FOB, CFR, CIF, EXW, DAP;
Accepted Payment Currency: USD, EUR, GBP,CNY;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal.
Language Spoken:English,Chinese
Q3:How long is your delivery time?
A:Generally it is 5-7 days if the goods are in stock, or it is 10-15 days if the goods are not in stock. It also depends on the order quantity.
Q4:How can you guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
