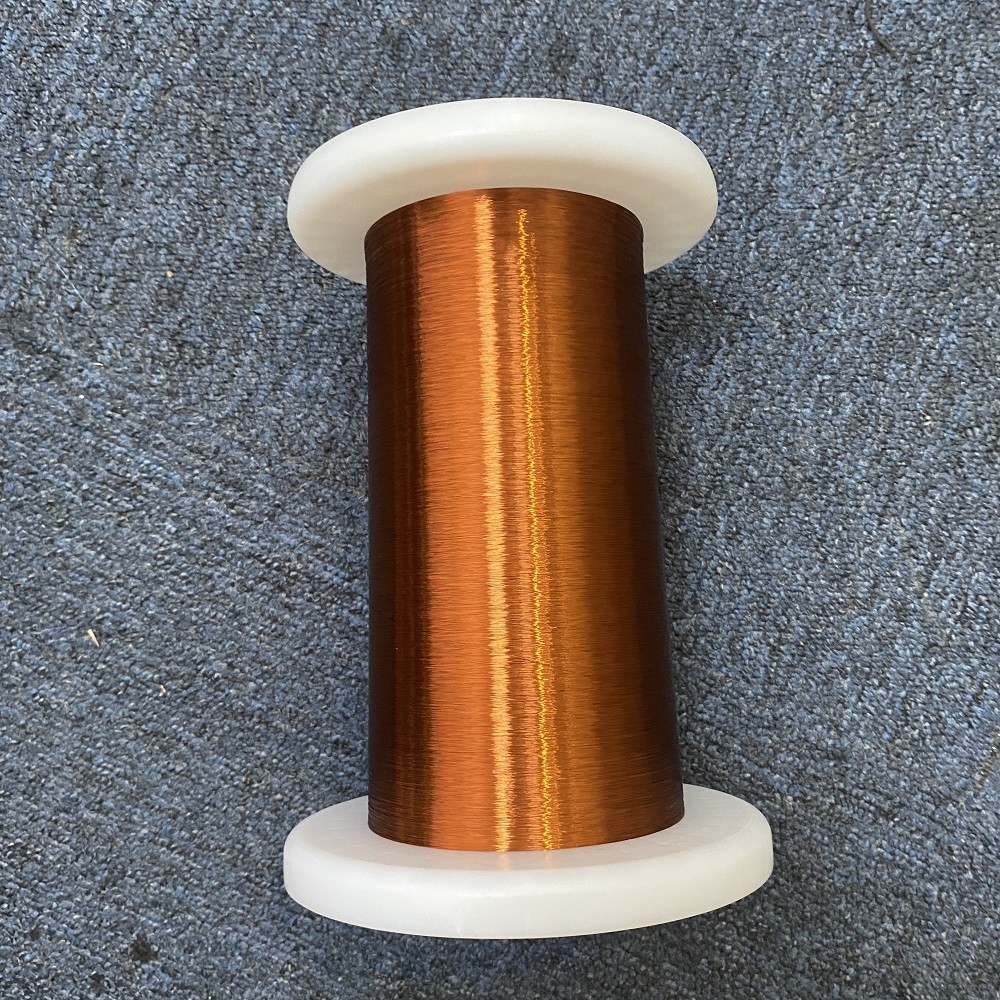

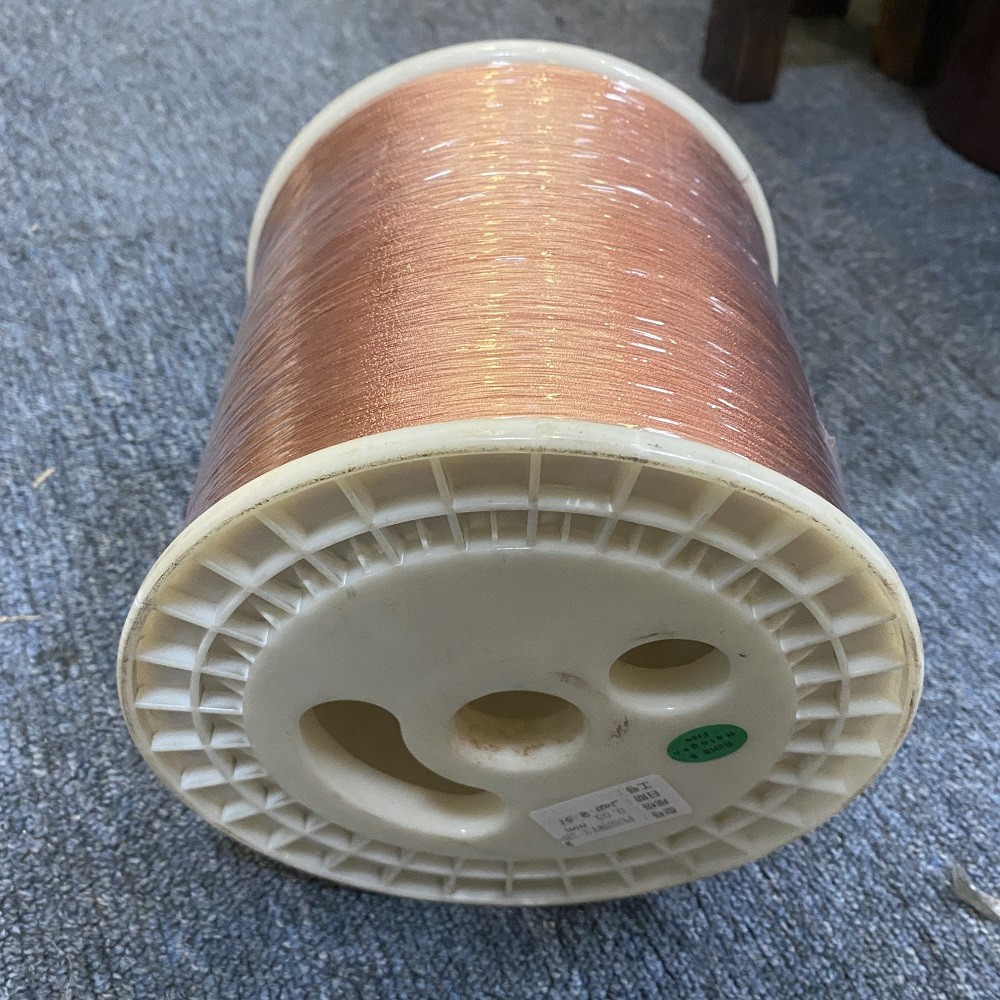

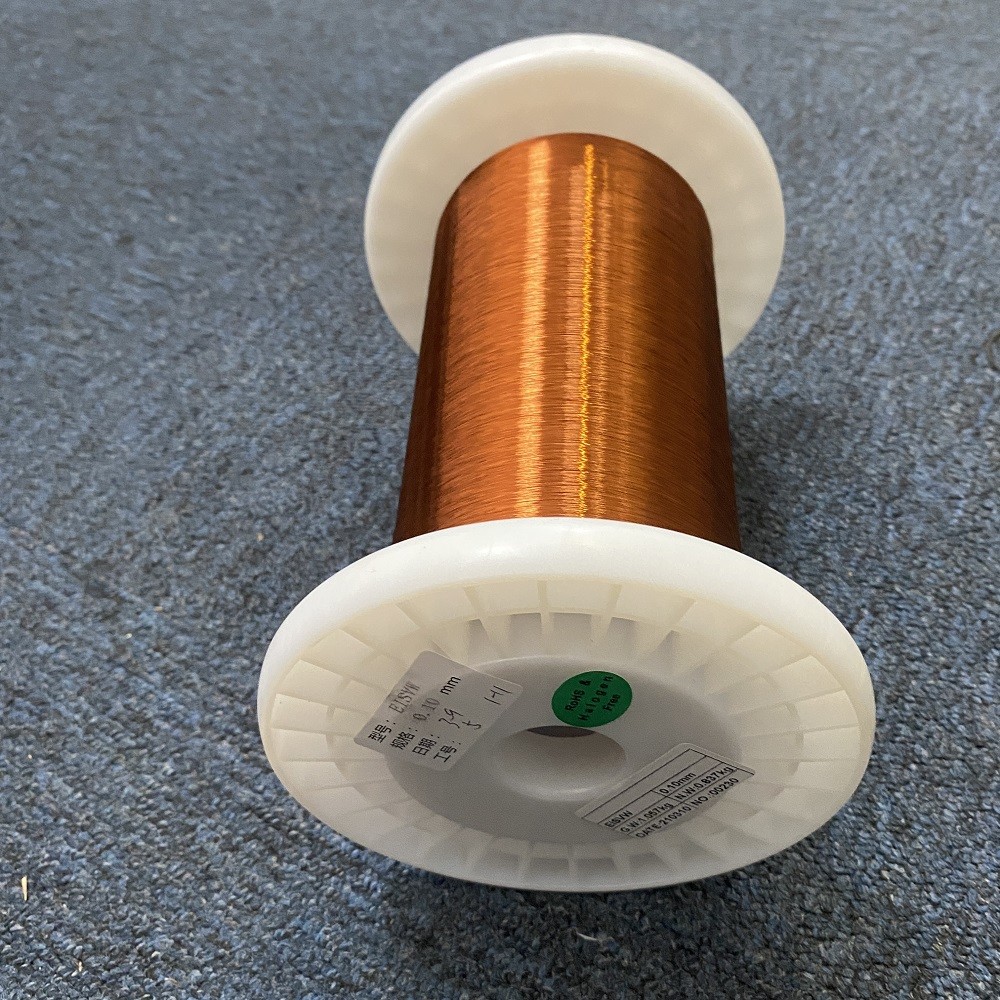

0.21mm Polyesterimide Enameled Copper Wire Class 180/200

  • 0.21mm Polyesterimide Enameled Copper Wire Class 180/200
  • 0.21mm Polyesterimide Enameled Copper Wire Class 180/200
  • 0.21mm Polyesterimide Enameled Copper Wire Class 180/200
Place of Origin Zhejiang, China
Brand Name CHINGCUNG
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number QZYN-1B/200-0.21
Minimum Order Quantity 30 Kg
Price USD 10.35/Kg
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Order No. 30013550210 Product Name EIW Self Adhesive Enamelled Round Copper Wires
AWG 31 Bonding Method Alcohol Soluble
Usage Coils, Windings, Voice Coils Feature High Breakdown Voltage
Color Red/Green/Blue/Normal Film Grade 1B 2B GB
High Light

0.21mm Polyesterimide Enameled Copper Wire

,

CHINGCUNG 0.21mm round magnet wire

,

1B Polyesterimide Enameled Copper Wire
Leave a Message
Product Description

0.21mm Special Magnet Wires Polyesterimide Enameled Copper Wire Class 180/200



Product Description:

As a special type of enameled wire, self-adhesive enameled wire is easy to manufacture because of its special processing performance.After heating or solvent treatment, the winding coil can be bonded to form, forming method is simple, light widely used in all kinds of complex shape or no skeleton electromagnetic coil manufacturing.



Features:

Our factory is equipped with automatic manufacturing facilitiesand advanced testing and inspection equipments. We have anumber of patent certificates,strong technical strength.At thesame time, we also have perfect production management system and quality assurance system to maintain the stability and reliability of our products.



Specification:

Conductor Overall diameter(mm) Conductor Resistance Elongation Breakdown Voltage(V)
Diameter Grade 2 (20℃ Ω/m) (%) Grade 2
  Upper limit Lower limit     Lower limit
0,012 0,017 0,018 151,14 3 150
0,014 0,019 0,020 111,04 4 175
0,016 0,021 0,022 85,02 5 200
0,018 0,023 0,024 67,18 5 225
0,019 0,024 0,026 60,29 6 240
0,020 0,025 0,027 54,41 6 250
0,025 0,032 0,034 34,82 7 300
0,028 0,035 0,038 27,76 7 325
0,030 0,038 0,041 24,18 8 350
0,040 0,050 0,054 13,60 10 475
0,045 0,056 0,061 10,750 12 550
0,050 0,061 0,066 8,706 14 600
0,060 0,073 0,079 6,046 16 680
0,063 0,077 0,083 5,484 16 700
0,070 0,084 0,090 4,442 17 700
0,071 0,085 0,091 4,318 17 700
0,080 0,095 0,101 3,401 17 850




FAQ:

Q1:What can we buy from you?

A:Self Bonding Enamelled CCA Wire, Self Bonding Enamelled Aluminum Wire, Self Bonding Enamelled Copper Wire, etc.



Q2:What services can you provide?
A:Accepted Delivery Terms: FOB, CFR, CIF, EXW, DAP;
Accepted Payment Currency: USD, EUR, GBP,CNY;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal.
Language Spoken:English,Chinese



Q3:How long is your delivery time?
A:Generally it is 5-7 days if the goods are in stock, or it is 10-15 days if the goods are not in stock. It also depends on the order quantity.



Q4:How can you guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment.



Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.

Tags:

1B Polyesterimide Enameled Copper Wire

Class 200 Self Bonding Enameled Wires

EIW Polyesterimide Enameled Copper Wire
