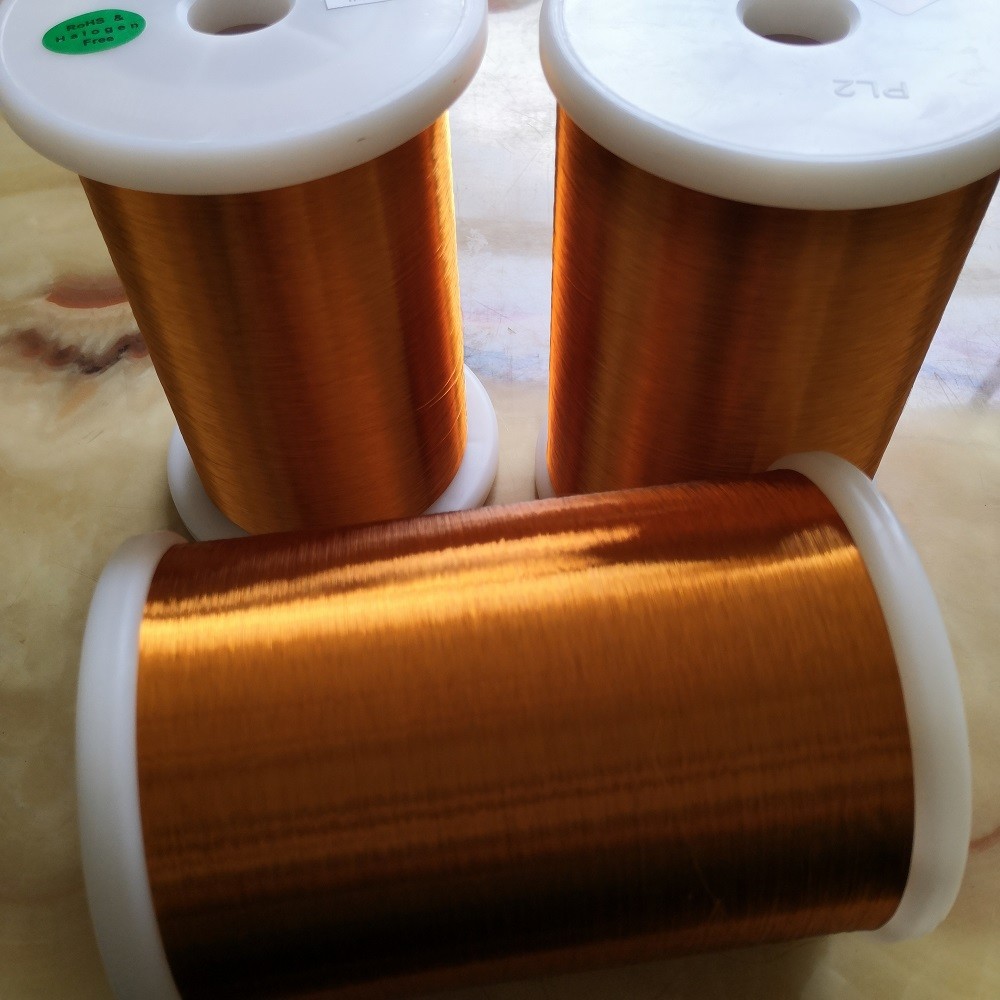

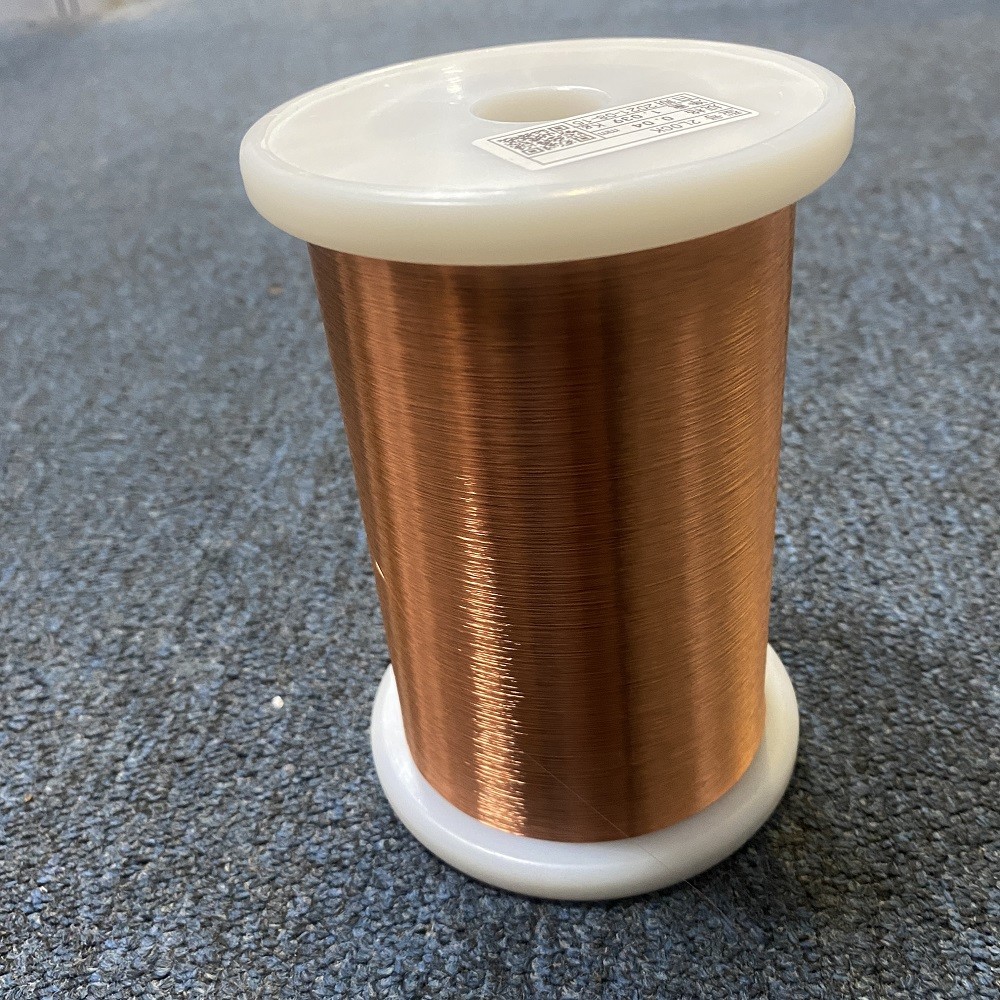

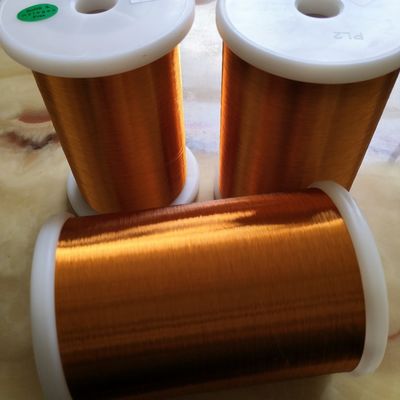

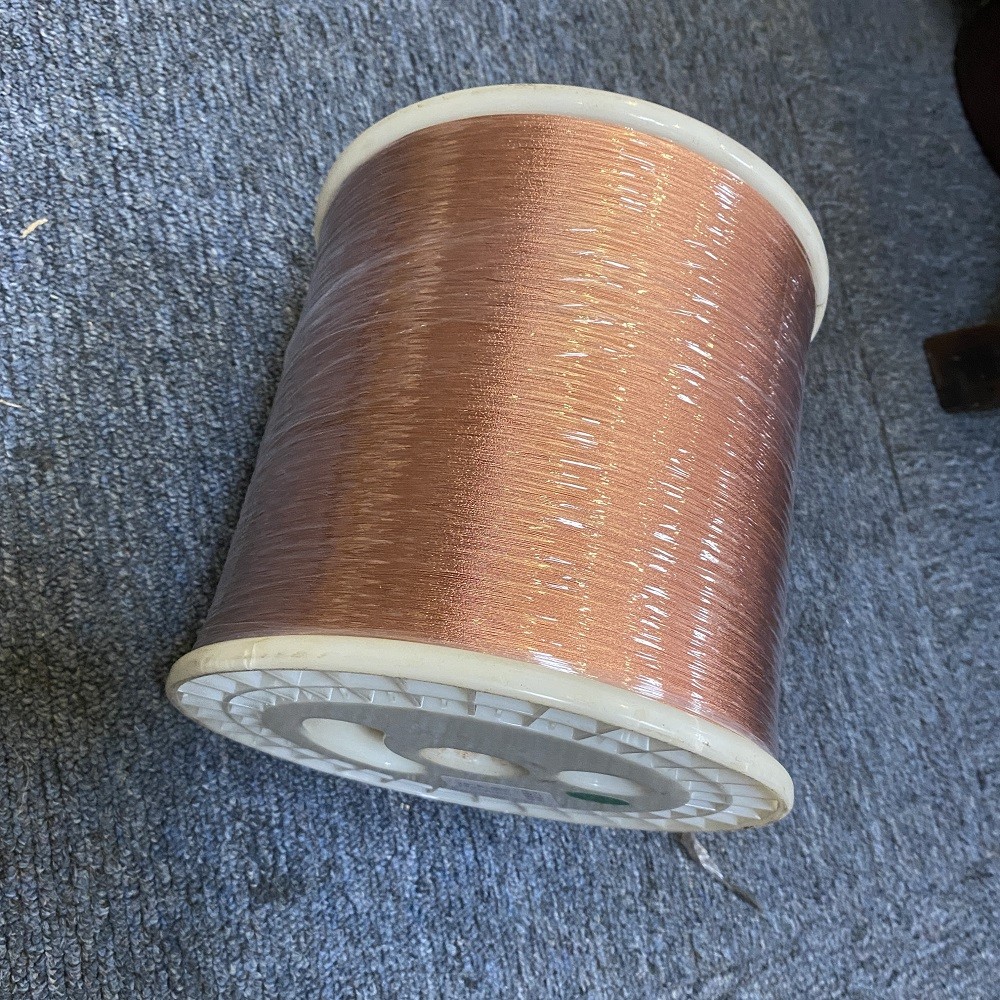

UWE Solderable Polyurethane Enameled Copper Wire Class 180

Class155/180 UWE Solderable Polyurethane Enameled Copper Wires For Magnetic Induction Coils

Composition and reaction mechanism of self-adhesive direct welding paint:
1),polyester resin, in order to ensure both self-adhesive direct welding, and a certain physical, mechanical and electrical insulation properties, the introduction of ether chain in the polyester molecule, so that the molecular chain has flexibility, and control the resin has a certain hydroxyl, so that crosslinking curing, reaction mechanism with polyester paint. 2), closed polyurethane resin, containing closed isocyanate base and polyurethane resin with a certain hydroxyl group, so that the film not only has direct weldability, but also can cross link curing in the self-adhesive process, reaction mechanism is the same as polyurethane paint. 3) ,Self-adhesive curing process: see the diagram of change of self-adhesive direct welding paint base (omitted). 4) , the key to paint: the active group in the paint base must be adjusted properly, if the content of carbamate is insufficient, the direct welding is not good;Hydroxyl content is insufficient, self-adhesive is not good;Therefore, the OH: -NCO in the paint base is generally controlled in the range of 1:0.4 ~ 1:0.85.

Sample testing:
For enameled wire customers, we can provide sample quality testing to ensure that our products can fulfill the customer's production needs before the customer orders.

Specification:

FAQ:
Q1:What's diameters available of the products?

A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.

Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.

Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!

Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.

Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
