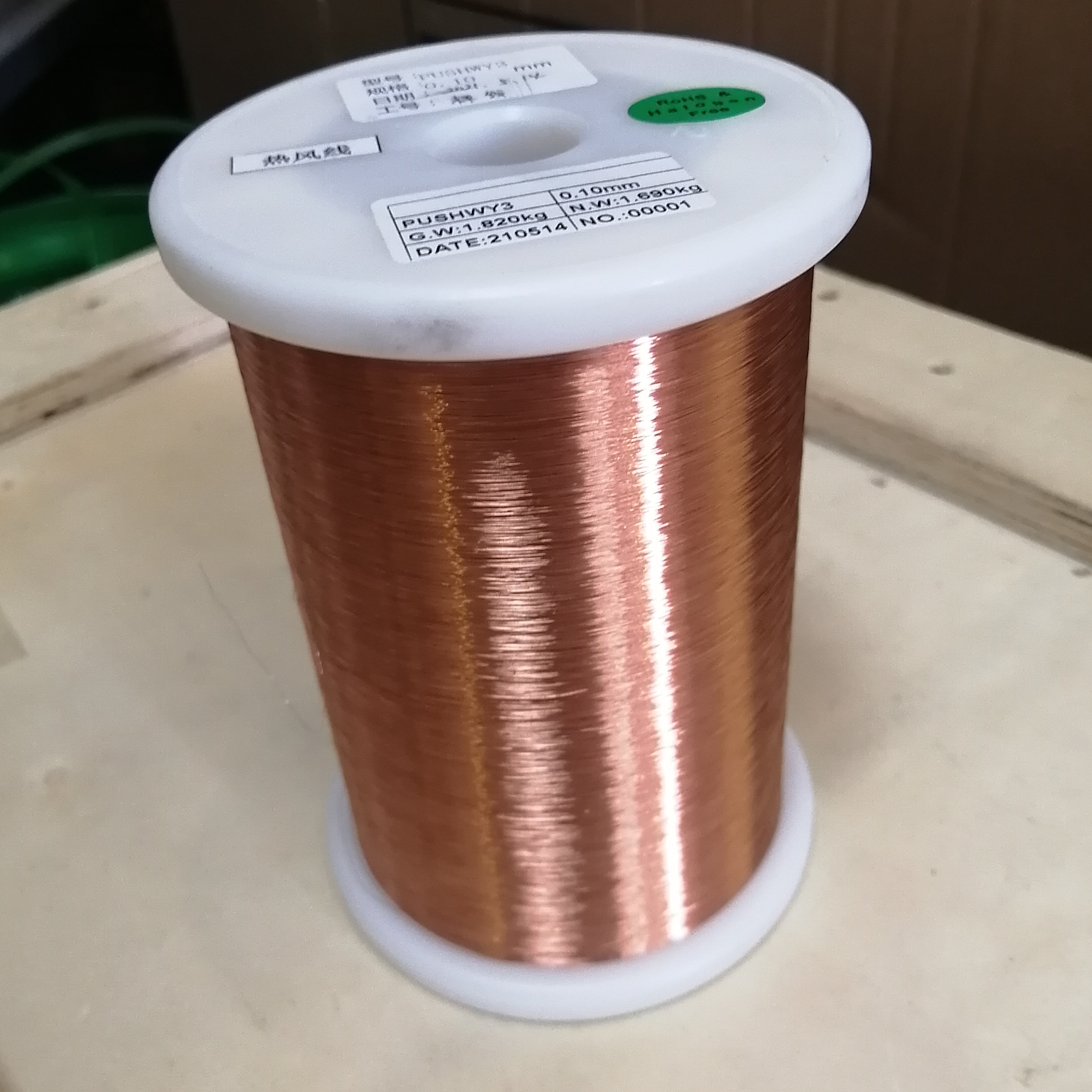

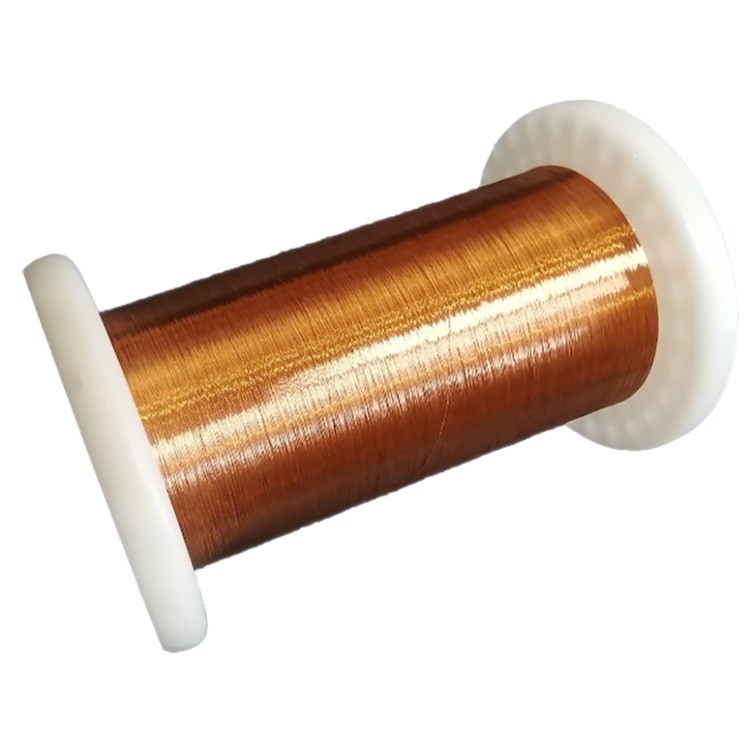

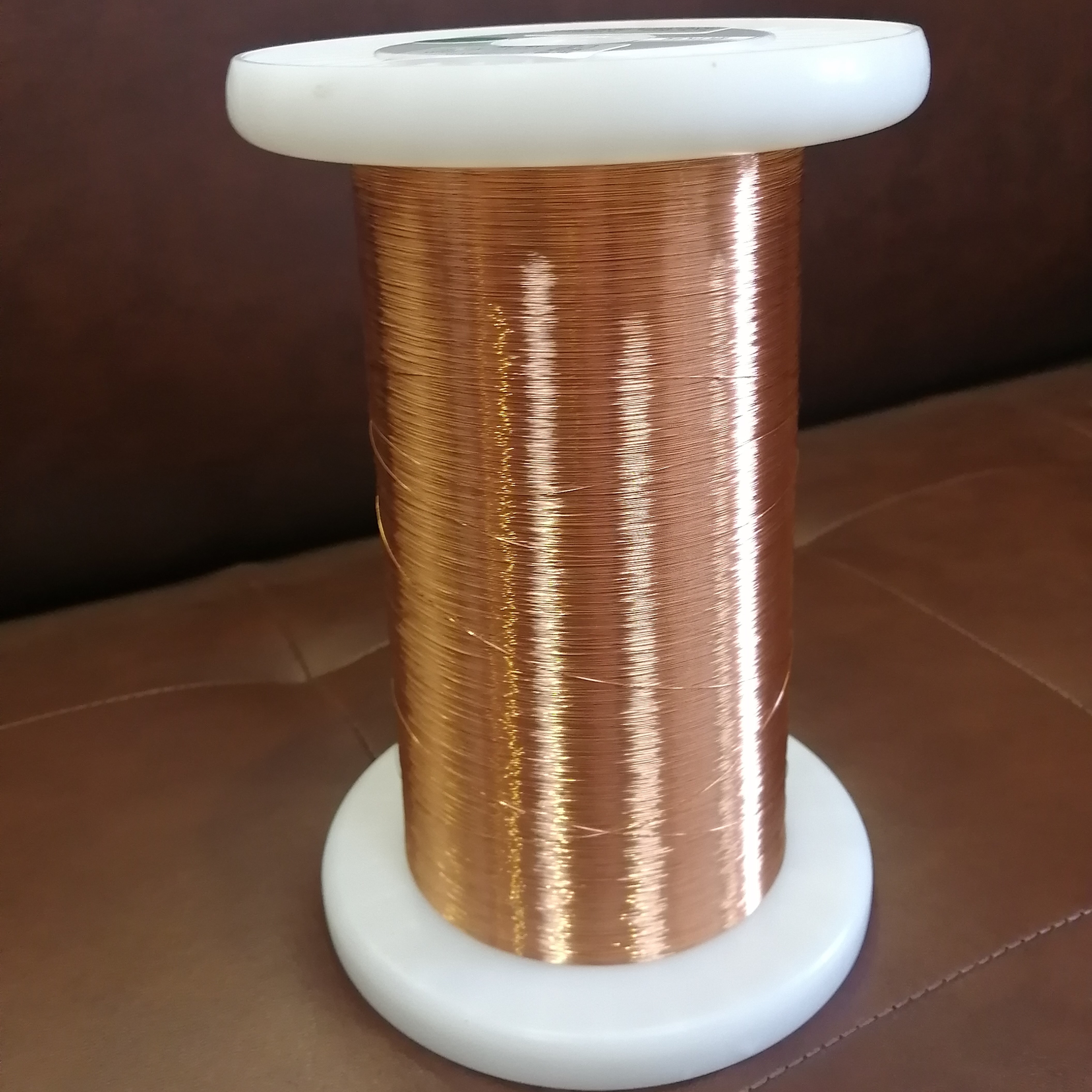

Polyester Enameled Copper Clad Aluminum Wire 0.13mm For Inductance Coils
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | PECCAW-GB/155-0.13 |
| Minimum Order Quantity | 30 Kg |
| Price | USD 77.78/Kg |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30021452130 | Product Name | Class 155 Copper Clad Aluminum Wires |
|---|---|---|---|
| Insualtion | PEW | Bonding Method | Hot Wind |
| Delivery Time | 5-7 Work Days | Certification | ISO9001/ISO14001/UL/SGS |
| Application | Heating,Transformer,motor,windings | Color | Natural |
| High Light | Polyester Enameled Copper Clad Aluminum Wire,Class 155 copper clad aluminum wires,Enameled Copper Clad Aluminum Wire 0.13mm |
||
Product Description
Self Adhesive Modified Polyester Enameled Copper Clad Aluminum Wires 0.13mm For Inductance Coils
Polyester resin, in order to ensure both self-adhesive direct welding, but also has a certain physical, mechanical and electrical insulation properties, in the introduction of ether chain in the polyester molecule, so that the molecular chain has flexibility, and control of the resin has a certain hydroxyl, so that crosslinking curing, can make the resin heat resistance grade accordingly improved.But the resistance of polyester paint heat impact performance is poorer, and in airtight oil, polyester resin is very fast aging, decomposition, the defect of these properties limited the application range of polyester resin.To expand the scope of use of polyester resin, so the modified polyester, its heat resistance and other performance has been greatly improved, such as BDZ-M and APB two kinds of enamelized line, its primer insulation layer is three (2- hydroxyethyl) isocyanurate ester (THEIC) modified polyester, intermediate layer is polyamide imide, outer layer is self adhesive polyester.The bottom coating THEIC modified polyester has high heat resistance, thermoplastic flow resistance, and superior adhesion and flexibility;Polyamideimide intermediate coating has good heat shock resistance, moisture resistance, scratch resistance and chemical resistance;The outer coating is self-adhesive modified polyester to make the whole winding turn and turn between the firm adhesion, do not need to use the method of dipping or heating treatment.
Copper clad aluminum is more malleable than copper wire, and it does not produce insulating oxides like aluminum, so it is easier to process and has better conductivity.
Specification:
| Model Number | Conductor Material | Conductor Diameter (mm) | Bonding Method | Thermal Class | Film Grade | Brand Name |
| PECCAW-1B/155 | Copper Clad Aluminum | 0.04-0.90 | Alcohol Soluble | 155 | 1B | CHINGCUNG |
| PECCAW-2B/155 | Copper Clad Aluminum | 0.04-0.90 | Alcohol Soluble | 155 | 2B | CHINGCUNG |
| PECCAW-GB/155 | Copper Clad Aluminum | 0.04-0.90 | Alcohol Soluble | 155 | GB | CHINGCUNG |
| PECCAWY3-1B/155 | Copper Clad Aluminum | 0.04-0.90 | Hot Air | 155 | 1B | CHINGCUNG |
| PECCAWY3-2B/155 | Copper Clad Aluminum | 0.04-0.90 | Hot Air | 155 | 2B | CHINGCUNG |
| PECCAWY3-GB/155 | Copper Clad Aluminum | 0.04-0.90 | Hot Air | 155 | GB | CHINGCUNG |
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.
Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.
Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
