0.13mm Solderable Polyurethane Enameled Round Copper Clad Aluminum Wires CCA Wires
Place of Origin | Zhejiang, China |
---|---|
Brand Name | CHINGCUNG |
Certification | UL/ISO9001/ISO14001/RoHS/Reach |
Model Number | PUCCAW-GB/155-0.13 |
Minimum Order Quantity | 30 Kg |
Price | USD 83.33/Kg |
Packaging Details | 5 Kgs each roll, cartons. |
Delivery Time | 5-7 work days |
Payment Terms | T/T |
Supply Ability | 50 tons per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOrder No. | 30021492130 | Diameter | 0.04 - 0.9mm |
---|---|---|---|
Class | 130/155/180 | Color | Red/Green/Blue And More |
Film Grade | GB | Advantage | Factory Supplies |
Application | Winding Wire | Type | Direct Weldable |
High Light | PUCCAW-GB Copper Clad Aluminum Wires,0.13mm Enameled Round CCA Wires,0.13mm Copper Clad Aluminum Wires |

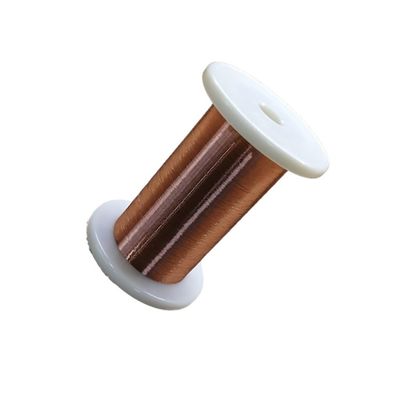

0.13mm Solderable Polyurethane Enameled Round Copper Clad Aluminum Wires CCA Wires
Product Description:
CCA wire possesses the characteristics of both Copper wire and Aluminium wire: low density from Aluminium wire and good conductor from copper wire. CCA wire is widely used in different electrical applications requiring the conductivity of copper while retaining much of the weight advantages of Aluminium.
Our factory is equipped with automatic manufacturing facilitiesand advanced testing and inspection equipments. We have anumber of patent certificates,strong technical strength.At thesame time, we also have perfect production management system and quality assurance system to maintain the stability and reliability of our products.
Specification:
Model Number | Conductor Material | Conductor Diameter(mm) | Bonding Method | Thermal Class | Film Grade | Brand Name |
PUCCAW-1B/130 | Copper Clad Aluminum | 0.04-0.90 | Alcohol Soluble | 130 | 1B | CHINGCUNG |
PUCCAW-2B/130 | Copper Clad Aluminum | 0.04-0.90 | Alcohol Soluble | 130 | 2B | CHINGCUNG |
PUCCAW-GB/130 | Copper Clad Aluminum | 0.04-0.90 | Alcohol Soluble | 130 | GB | CHINGCUNG |
PUCCAW-1B/155 | Copper Clad Aluminum | 0.04-0.90 | Alcohol Soluble | 155 | 1B | CHINGCUNG |
PUCCAW-2B/155 | Copper Clad Aluminum | 0.04-0.90 | Alcohol Soluble | 155 | 2B | CHINGCUNG |
PUCCAW-GB/155 | Copper Clad Aluminum | 0.04-0.90 | Alcohol Soluble | 155 | GB | CHINGCUNG |
PUCCAW-1B/180 | Copper Clad Aluminum | 0.04-0.90 | Alcohol Soluble | 180 | 1B | CHINGCUNG |
PUCCAW-2B/180 | Copper Clad Aluminum | 0.04-0.90 | Alcohol Soluble | 180 | 2B | CHINGCUNG |
PUCCAW-GB/180 | Copper Clad Aluminum | 0.04-0.90 | Alcohol Soluble | 180 | GB | CHINGCUNG |
PUCCAWY3-1B/130 | Copper Clad Aluminum | 0.04-0.90 | Hot Air | 130 | 1B | CHINGCUNG |
PUCCAWY3-2B/130 | Copper Clad Aluminum | 0.04-0.90 | Hot Air | 130 | 2B | CHINGCUNG |
PUCCAWY3-GB/130 | Copper Clad Aluminum | 0.04-0.90 | Hot Air | 130 | GB | CHINGCUNG |
PUCCAWY3-1B/155 | Copper Clad Aluminum | 0.04-0.90 | Hot Air | 155 | 1B | CHINGCUNG |
PUCCAWY3-2B/155 | Copper Clad Aluminum | 0.04-0.90 | Hot Air | 155 | 2B | CHINGCUNG |
PUCCAWY3-GB/155 | Copper Clad Aluminum | 0.04-0.90 | Hot Air | 155 | GB | CHINGCUNG |
PUCCAWY3-1B/180 | Copper Clad Aluminum | 0.04-0.90 | Hot Air | 180 | 1B | CHINGCUNG |
PUCCAWY3-2B/180 | Copper Clad Aluminum | 0.04-0.90 | Hot Air | 180 | 2B | CHINGCUNG |
PUCCAWY3-GB/180 | Copper Clad Aluminum | 0.04-0.90 | Hot Air | 180 | GB | CHINGCUNG |
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.
Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.
Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
