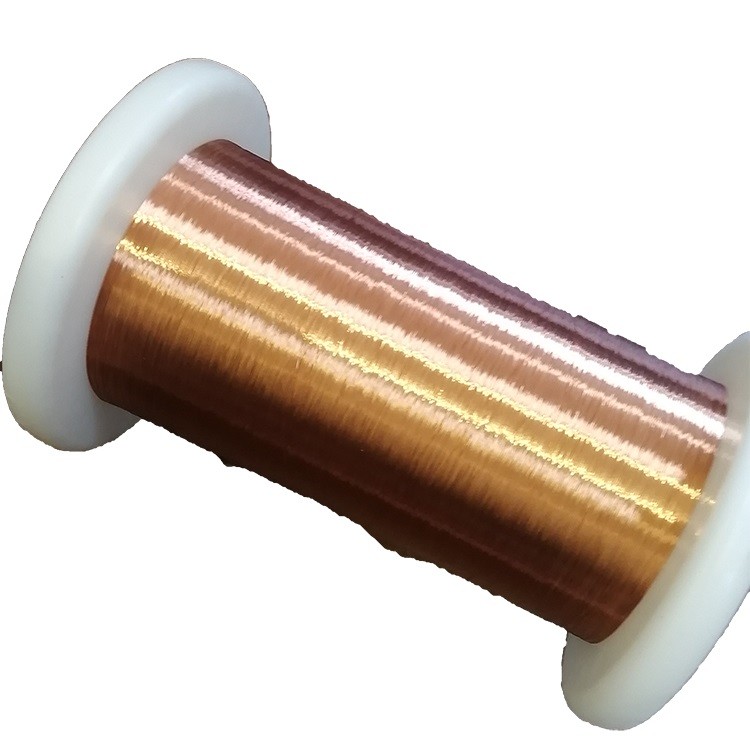

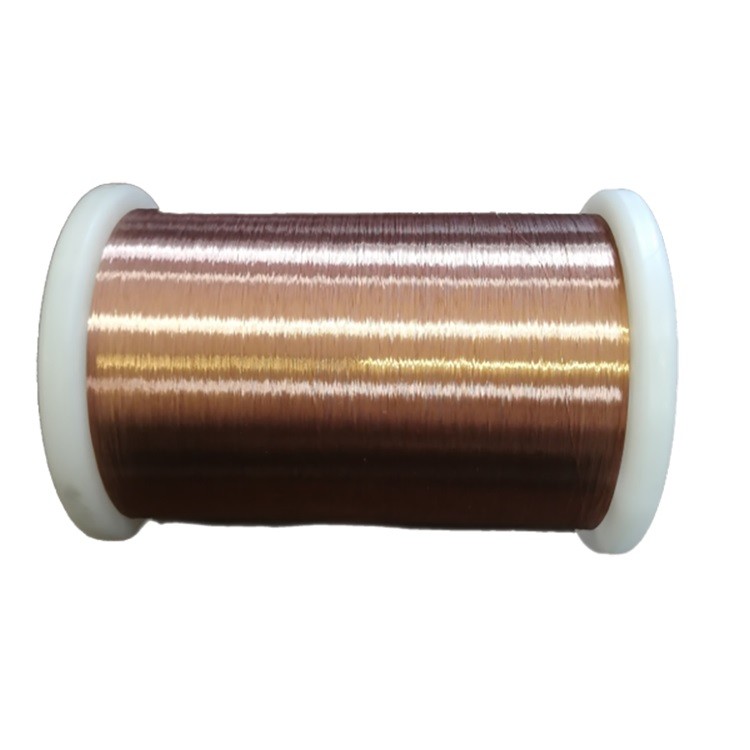

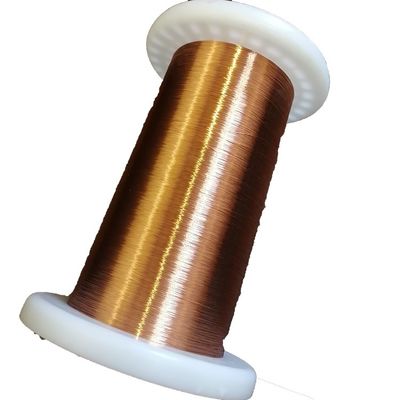

0.16mm Self Bonding Wire Enameled Copper Clad Aluminum Wire UEW Solderable Wire
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | PUCCAW-GB/155-0.16 |
| Minimum Order Quantity | 30 Kg |
| Price | USD 64.44/Kg |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30021492160 | Product Name | UEW/polyurethane Self Adhesive Enamelled Copper Wires |
|---|---|---|---|
| Thermal Class | 130-180 | Bonding Way | Alcohol Soluble |
| Film Grade | 1B/2B/GB | Advantage | Factory Supplies |
| Application | Transformer Coils | Type | Direct Weldable |
| High Light | 0.16mm Self Bonding Wire,CHINGCUNG copper coated aluminium wire,PUCCAW GB Self Bonding Wire |
||
Product Description
0.16mm Self Bonding Enameled Copper Clad Aluminum Wire UEW Solderable Wire
Copper Clad Aluminum(CCA)
Due to the constant miniaturization of the electronic products, the fine diameter of the micro electromagnetic wire put forward higher request, not only for light weight, small diameter, also requires power increases, and considering the fine line in the winding process of brittle characteristics, in order to improve the safe, tension and other features, consider using mixed with other ingredients on the processed material copper alloy security tension increased significantly,At the same time, the decrease of conductivity is also large, this alloy conductor with copper as the main body is the high tension enameled wire conductor, it not only has all the properties of copper, but also has high strength, good toughness and excellent audio characteristics.
Our company mainly produces various types of 0.04-0.90mm specifications and special enameled wire, its products meet the applicable standards of the industry (IEC60317, GB6109.JlSC 3202, NEMA MW1000), and on this basis, according to different product needs and winding characteristics,Develop special enameled wire standards suitable for electromagnetic relay, micro special motor, transformer for smart meter, clock coil, solenoid valve, high voltage package and so on.The types of self-adhesive enameled wire are polyester line, polyurethane line, polyamide imide line, polyester imide line and so on.
Specification:
| item | value | ||
| Place of Origin | Zhejiang,China | ||
| Brand Name | CHINGCUNG | ||
| Certification | ISO9001/ISO14001/UL/SGS | ||
| Product Type | Self adhesive | ||
| Feature | Good Solderability Flexibility | ||
| Conductor Material | CCA | ||
| Insulation Material | polyurethane | ||
| solderable | Yes | ||
| Temperature | 130/155/180 | ||
| Size(AWG) | 46-19 | ||
| Package | Plastic Spool/carton | ||
| OEM | Support | ||
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.
Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.
Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
