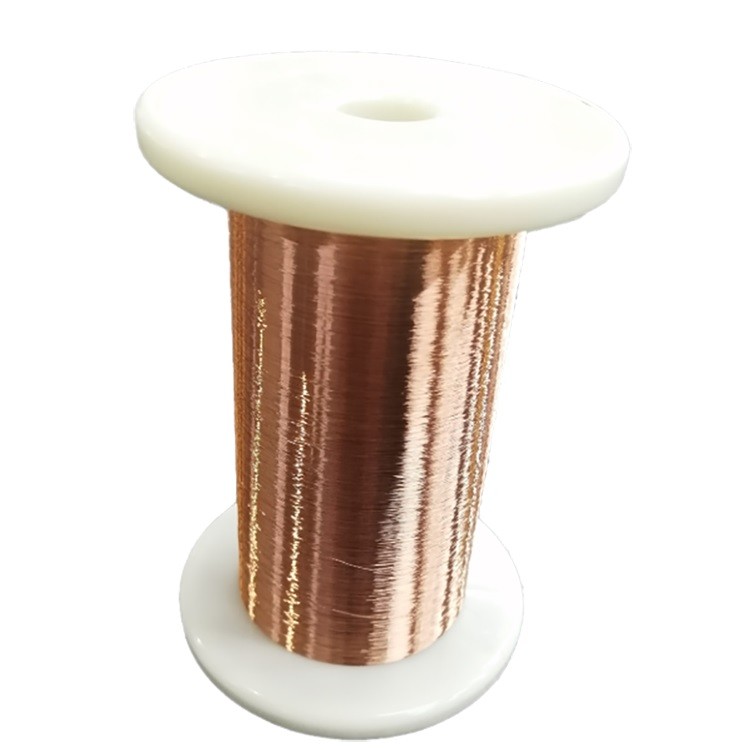

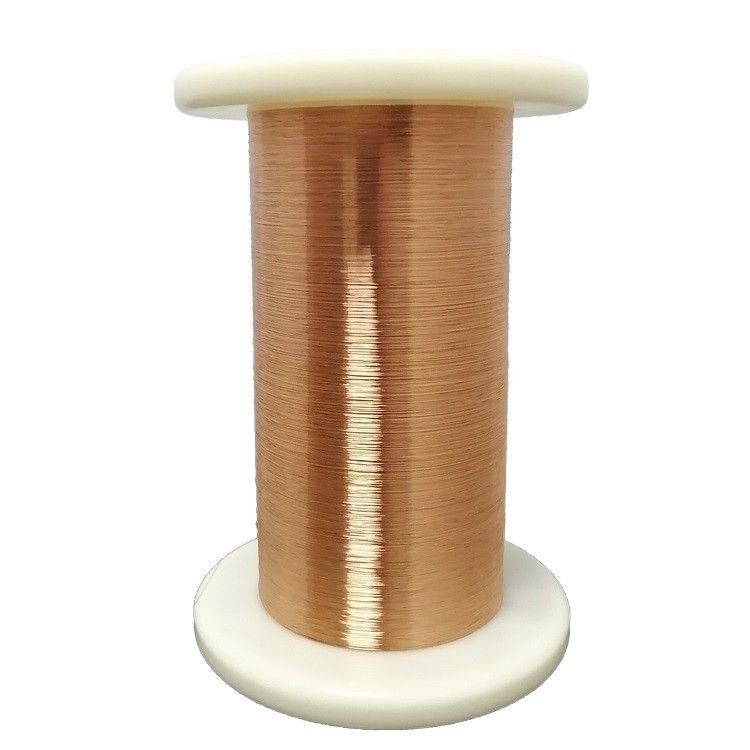

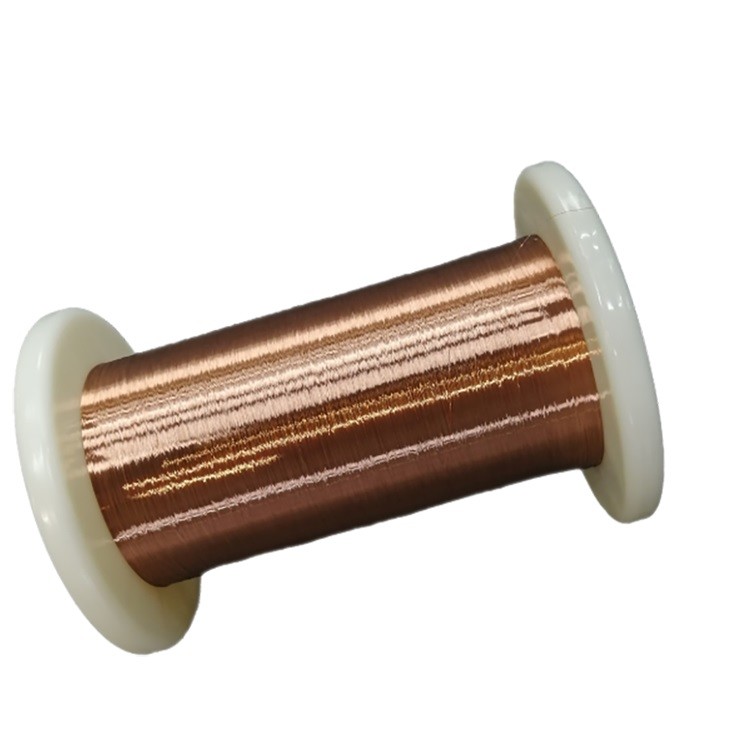

Alcohol Soluble UEW Solderable Enameled Copper Clad Aluminum Wire For Motor
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | PUCCAW-GB/155-0.17 |
| Minimum Order Quantity | 30 Kg |
| Price | USD 57.78/Kg |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30021492170 | Product Name | UEW/polyurethane Self Adhesive Enamelled Copper Wires |
|---|---|---|---|
| Thermal Class | 130,155,180 | Diameter | 0.17mm |
| Film Grade | 1B/2B/GB | Advantage | Factory Supplies |
| Color | Red | Type | Direct Weldable |
| High Light | CHINGCUNG enameled copper clad aluminum wire,2B motor magnet wire,0.17mm enameled copper clad aluminum wire |
||
Product Description
Alcohol Soluble UEW Solderable Enameled Copper Clad Aluminum Wire For Motor
Copper Clad Aluminum:
The conductor is Aluminum wire in the middle, and the surface is covered with a layer of Copper. The advantage is that the quality is lighter, the response speed is fast, and the sound quality is excellent (medium and high frequency are more textured), which is suitable for the voice coil design of advanced earphones.
Our company mainly produces various types of 0.04-0.90mm specifications and special enameled wire, its products meet the applicable standards of the industry (IEC60317, GB6109.JlSC 3202, NEMA MW1000), and on this basis, according to different product needs and winding characteristics,Develop special enameled wire standards suitable for electromagnetic relay, micro special motor, transformer for smart meter, clock coil, solenoid valve, high voltage package and so on.The types of self-adhesive enameled wire are polyester line, polyurethane line, polyamide imide line, polyester imide line and so on.
Specification:
| Test Certificate for Enamelled Wire | ||||||
| Product Name:P155 Self-bonding hot melting wire | ||||||
| Product Type:2LOCKCS0.10(N) | Bare Copper Diameter Nom. Φ 0.10mm | |||||
| Enamel Type:mod.Polyurethane/P155 | Thermal class :F((155°C) | |||||
| Item | Tolerance | Test Values | ||||
| Unit | Min | Max | Min | x | Max | |
| Bare Dia. | mm | 0.098 | 0.102 | 0.099 | 0.1 | 0.101 |
| Thickness of Insulation | mm | 0.005 | 0.012 | 0.006 | 0.007 | 0.007 |
| Overall diameter | mm | 0.117 | 0.123 | 0.119 | 0.12 | 0.121 |
| Surface apperance | ok | ok | ||||
| Elongation | % | 19 | 23 | 24.5 | 26 | |
| Tens. Strength | N/mm² | 25 | 59 | 62 | 65 | |
| 1% yield | N/mm² | 20 | 53 | 57 | 60 | |
| Adh.& flex. | OK | OK | ||||
| Spooling | OK | OK | ||||
| D.C. Resistance(20°C) | Ω/m | 2.111 | 2.241 | 2.14 | 2.2 | 2.25 |
| BDV cyl. | V | 1300 | 1600 | 1725 | 1850 | |
| BDV cyl. V/μm | V/μm | 200 | 270 | 280 | 300 | |
| Pinholes 3%,12V | Faults/6m | 0 | 8 | 0 | 0 | 0 |
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.
Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.
Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
