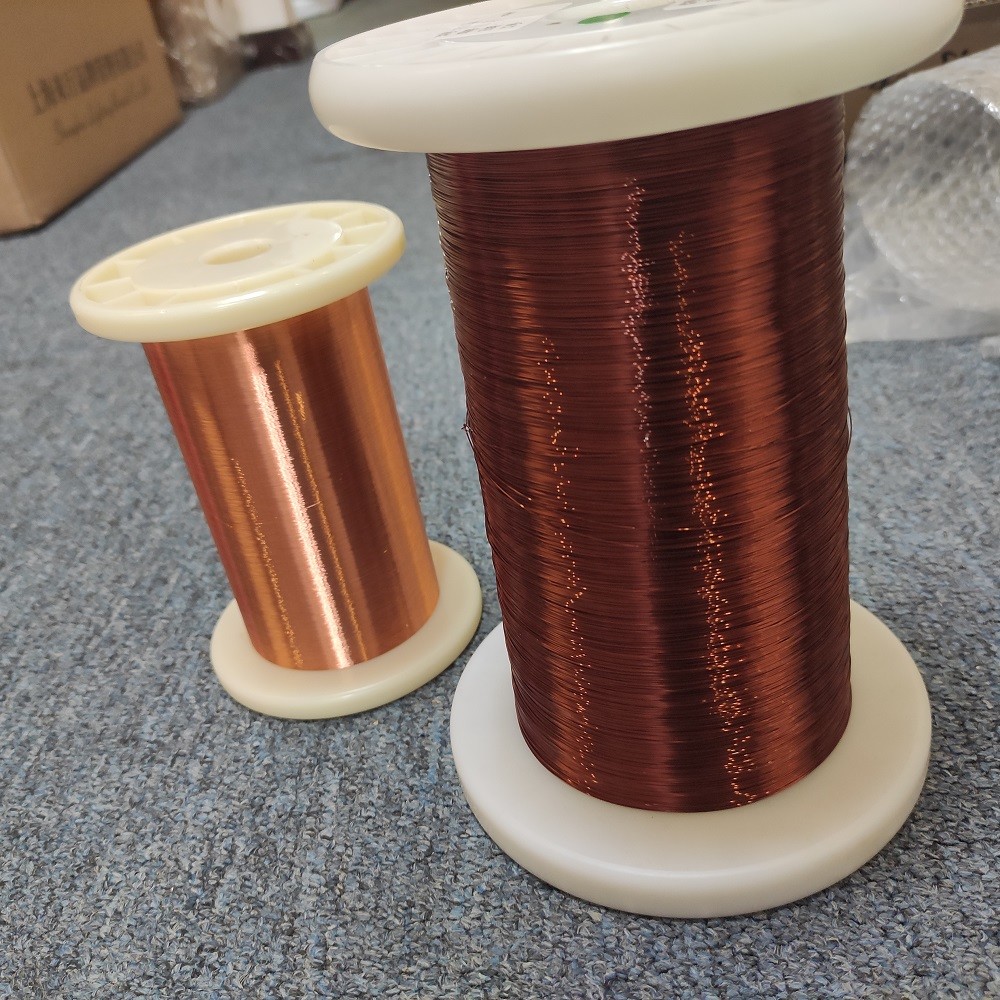

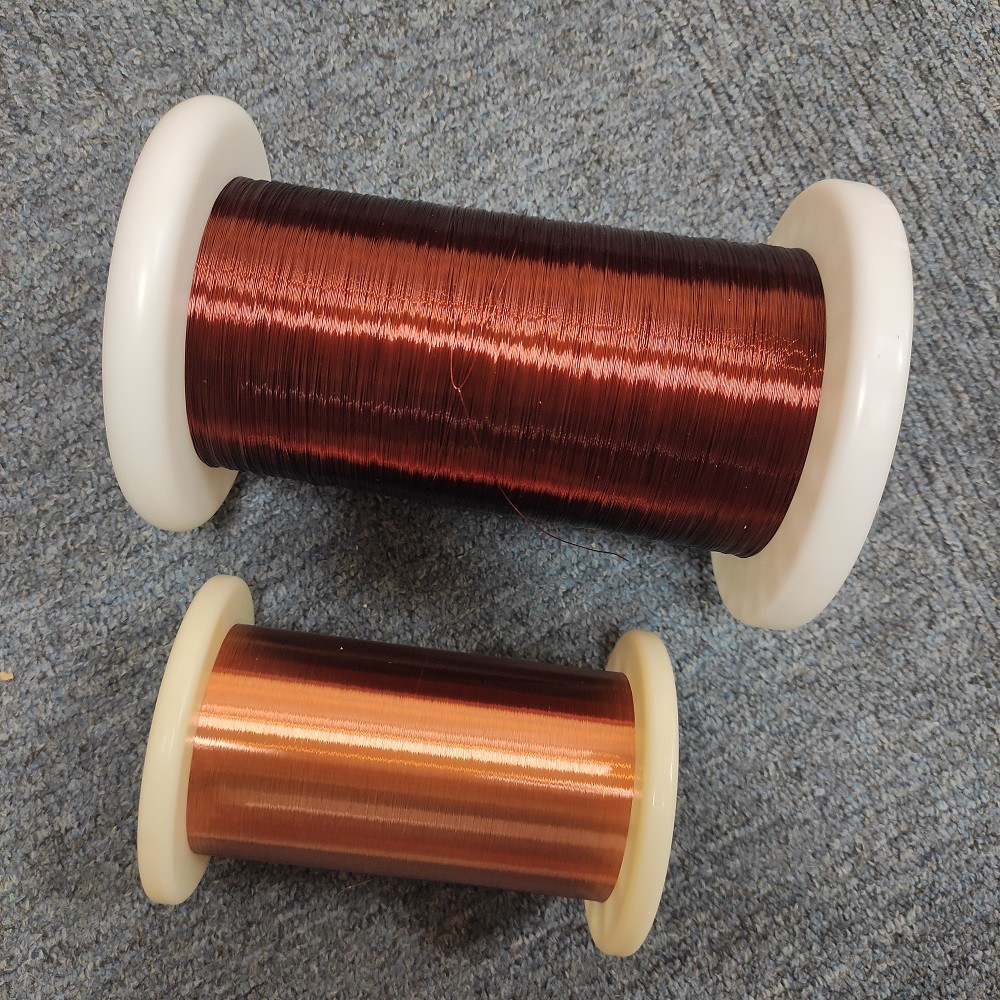

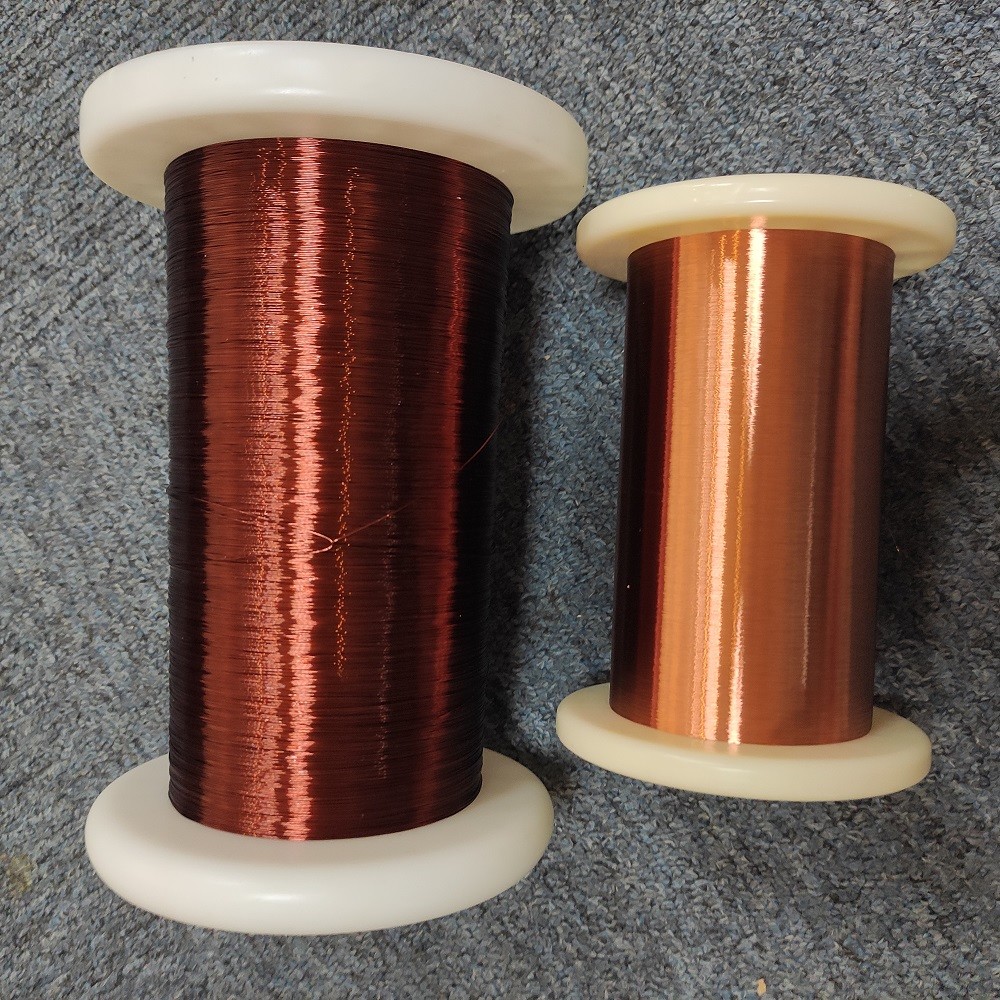

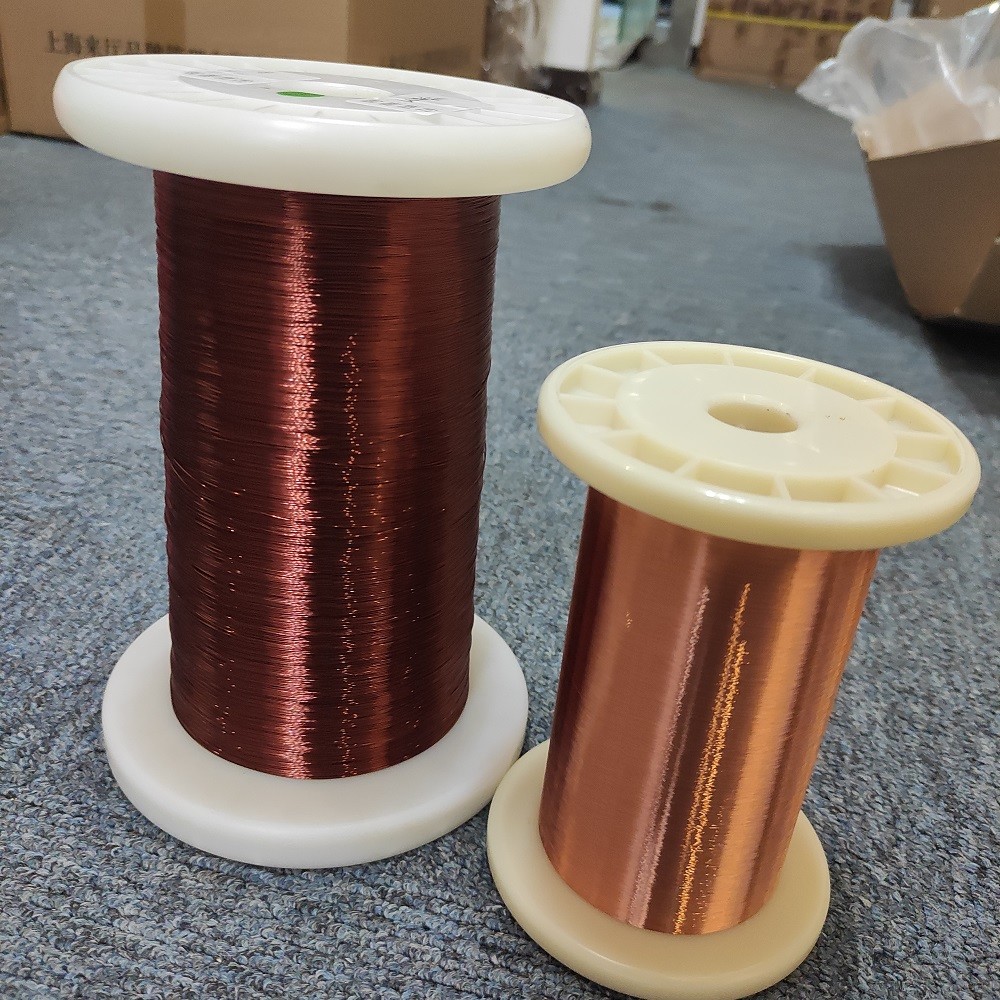

Class 200 Self Bonding Enameled Copper Magnet Wire For Frameless Coil
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | AISVWY3-GB/200-0.09 |
| Minimum Order Quantity | 20 Kg |
| Price | Negotiation |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No | 30011222090 | Product Name | Self Adhesive High Temperature Enameled Wire |
|---|---|---|---|
| Bonding Layer | Hot Air | Conductor Diameter | 0.09mm |
| Insulation Material | PE/AIW | Thermal Class | 200 |
| Advantage | High Breakdown Voltage | Shape | Round |
| High Light | Self Bonding Copper Magnet Wire,Class 200 Copper Magnet Wire,AIW Frameless Coil Copper Magnet Wire |
||
Product Description
Class 200 Self Bonding Enameled Round Copper Wires For Frameless Coil
Softening temperature:
softening temperature refers to the temperature at which the coil with a certain bonding force is lost after being treated in a certain baking condition.It is of practical significance to examine the heat resistance of adhesive layer of self-adhesive enameled wire.The re-softening temperature is higher than the corresponding heat grade temperature.
The application of self-adhesive enameled wire in motor windings shows that the motor windings made by self-adhesive enameled wire can meet the technical requirements of the corresponding motor and have reliable performance.Self-adhesive enameled wire can be used to manufacture motor windings, which can omit the process of soaking, save energy, eliminate pollution and reduce labor intensity. It has good technical and economic effect and is worthy of popularization and application.
We supply various types of special self-bonding enameled wiresmainly, including copper-clad aluminum self-bonding wires,alloyself-bonding wires, self-bonding stranded wires, silver-platedwires,240 grade high temperature self-bonding wires,etc. Weproduce all kinds of alloy self-bonding wires of 0.02mm-0.10mm,as well as copper-clad aluminum ultra-high tension self-bonding wires and copper self-bonding wires of 0.04mm-0.90mm.
Specification:
| Product Name | Self adhesive high temperature enameled wire |
| Model Number | AISVWY3-GB/200-0.09 |
| Insulation Material | Polyamideimide composite polyester or polyesterimide enameled |
| Conductor Diameter | 0.09mm |
| Bonding Method | Hot Air |
| Thermal Class | 200 |
| Film Grade | GB |
| Application | Voice coils,Winding Wire,speaker coils |
FAQ:
Q1:What can we buy from you?
A:Self Bonding Enamelled CCA Wire, Self Bonding Enamelled Aluminum Wire, Self Bonding Enamelled Copper Wire, etc.
Q2:What services can you provide?
A:Accepted Delivery Terms: FOB, CFR, CIF, EXW, DAP;
Accepted Payment Currency: USD, EUR, GBP,CNY;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal.
Language Spoken:English,Chinese
Q3:How long is your delivery time?
A:Generally it is 5-7 days if the goods are in stock, or it is 10-15 days if the goods are not in stock. It also depends on the order quantity.
Q4:How can you guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q5:How’s the package?
A:Normally are cartons, but also we can pack it according to your requirements.
