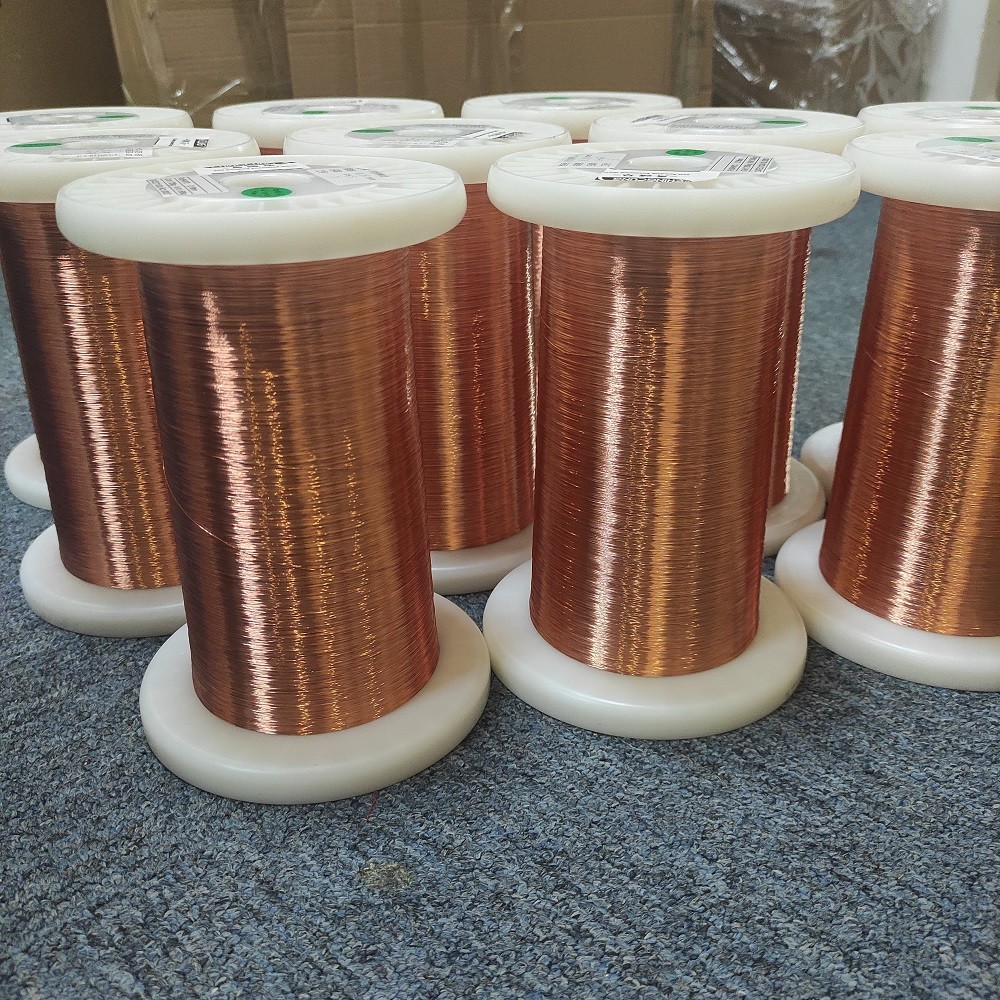

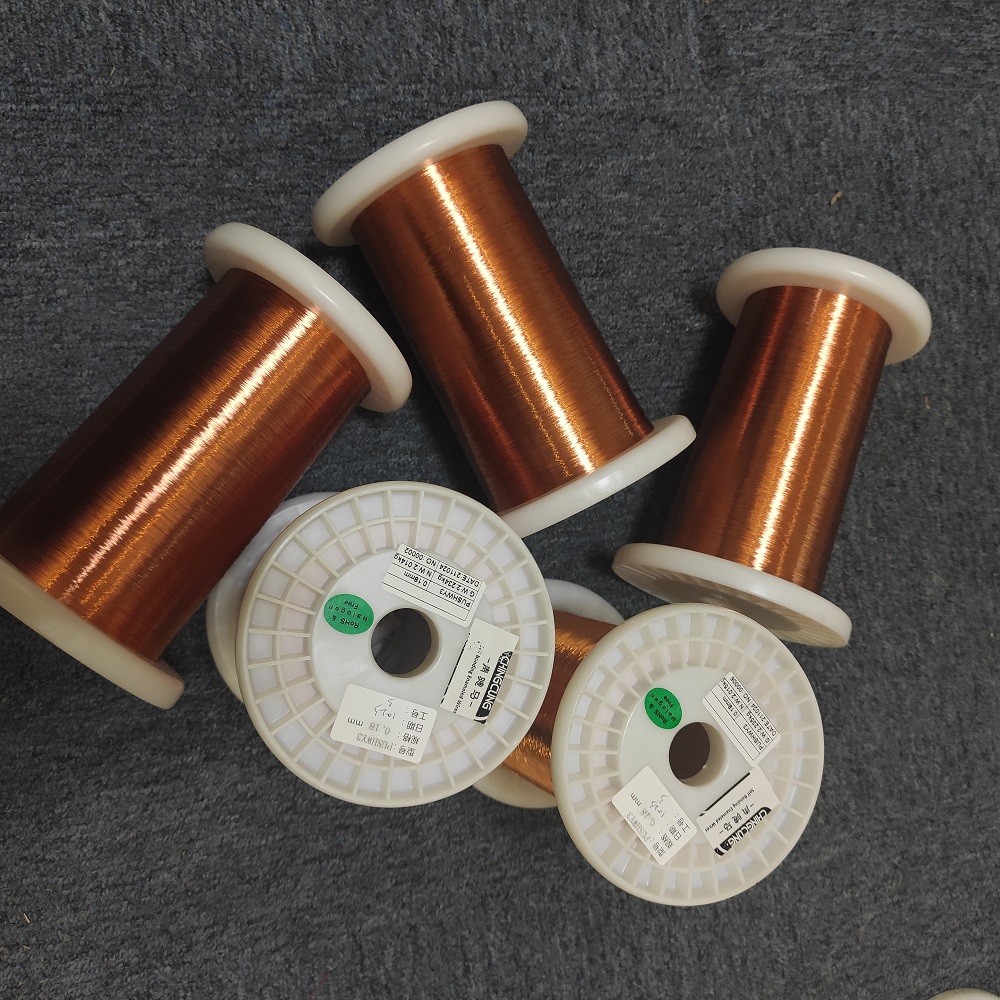

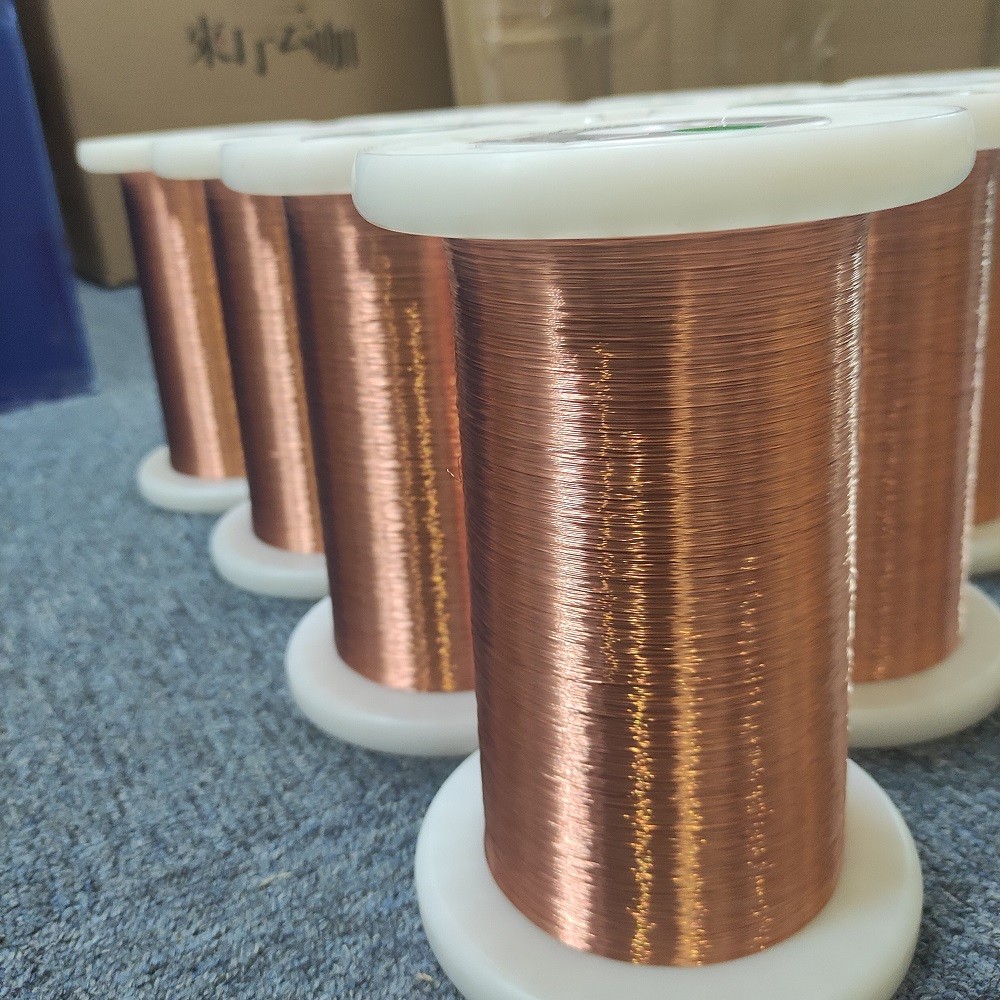

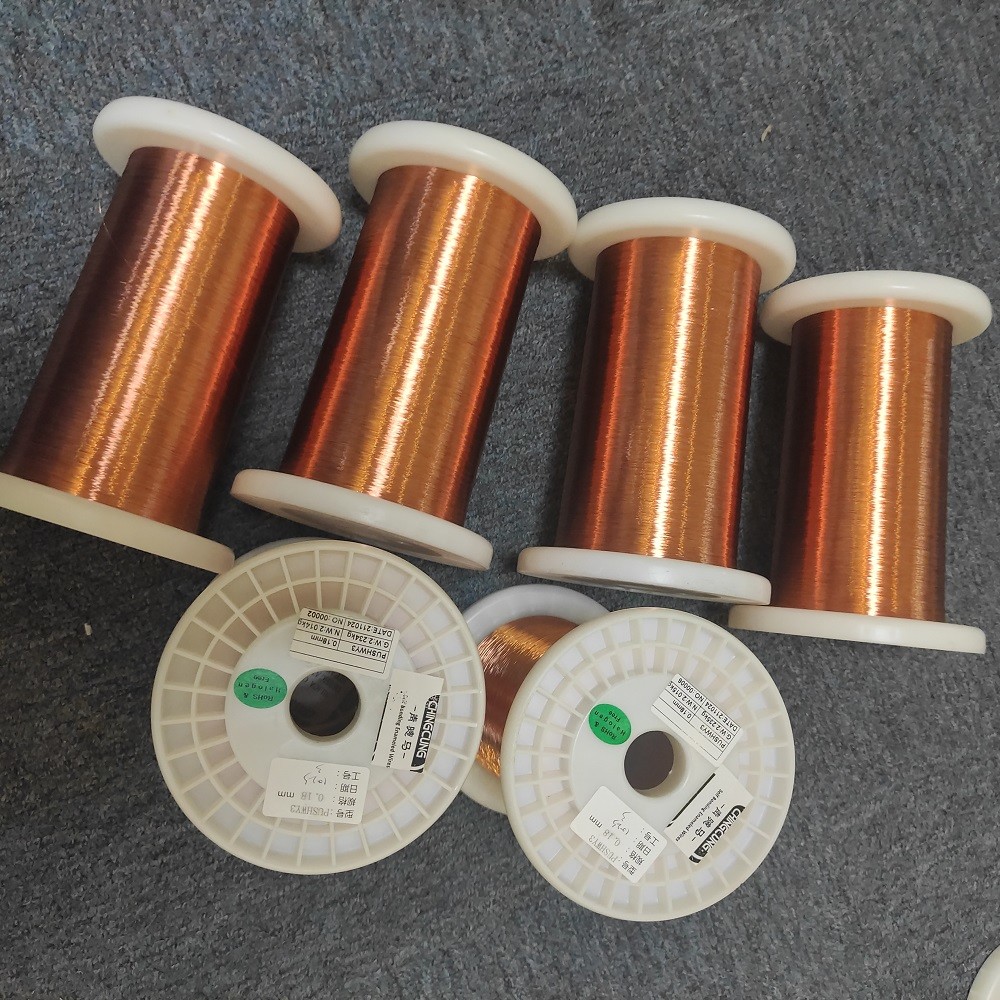

Polyesterimide Enameled 0.04mm Coated Magnet Wire For Speaker Voice Coils
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | AISVWY3-2B/220-0.04 |
| Minimum Order Quantity | 20 Kg |
| Price | Negotiation |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No | 30011241040 | Product Name | Ultra Fine Self Bonding Copper Wire |
|---|---|---|---|
| Enamel Thickness | 2B | Conductor Diameter | 0.04mm |
| Bonding Method | Hot Air | Class | 220 |
| Advantage | High Breakdown Voltage | Color | Nature And More |
| High Light | Polyesterimide Enameled Coated Magnet Wire,0.04mm Coated Magnet Wire,Speaker Voice Coils Coated Magnet Wire |
||
Product Description
0.04mm Self Bonding Enameled Copper Wire 220℃ Heat Resistant For Speaker Voice Coils
Price Description:
The cost of self-adhesive enameled wire must be considered in its application.From stick enameled wire and the tendency of price of ordinary enameled wire is same, wire diameter is finer the price is higher.Same line diameter (specification) below the case, from stick enameled wire to compare the price of ordinary enameled wire (every kg) 20-80 yuan high, but from stick enameled wire in the process of its application, save paint material, labor cost, dip paint equipment depreciation cost, and the benefit that the production cycle that saves forms is much larger than its price difference.
Application:
High temperature voltage devices, instrumentation and various types of electronic components windings
Features:
By making the micrograph of the section of the test coil, it can be observed that the interturns of the self-adhesive enameled wire coil are firmly glued together after forming.Because of composite self-adhesive coating enameled wire is heated, its outer layer can melt solidification painting, the turn-to-turn bonding layer permeability interact with each other, each other to make wire surface more viscous layer coating, there is no obvious adhesion interface between conductor, it also reduce wire bonding between the parts of stress concentration, to enhance the bond strength.
With the assistance of our advanced technology, we offer quality range of Copper Strips. Manufactured using finest grade of raw material our array is widely used in numerous industries for excellent finish, corrosion resistance and durability. We even custom design these strips and flats as per client specific requirement.
Specification:
| Product Name | Special Magnet Wires |
| Model Number | AISVWY3-2B/220-0.04 |
| Insulation Material | Polyamideimide composite polyester or polyesterimide enameled |
| Conductor Diameter | 0.04mm |
| Bonding Method | Hot Air |
| Thermal Class | 220 |
| Film Grade | 2B |
| Application | Coils, Windings, Voice coils |
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.
Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.
Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
