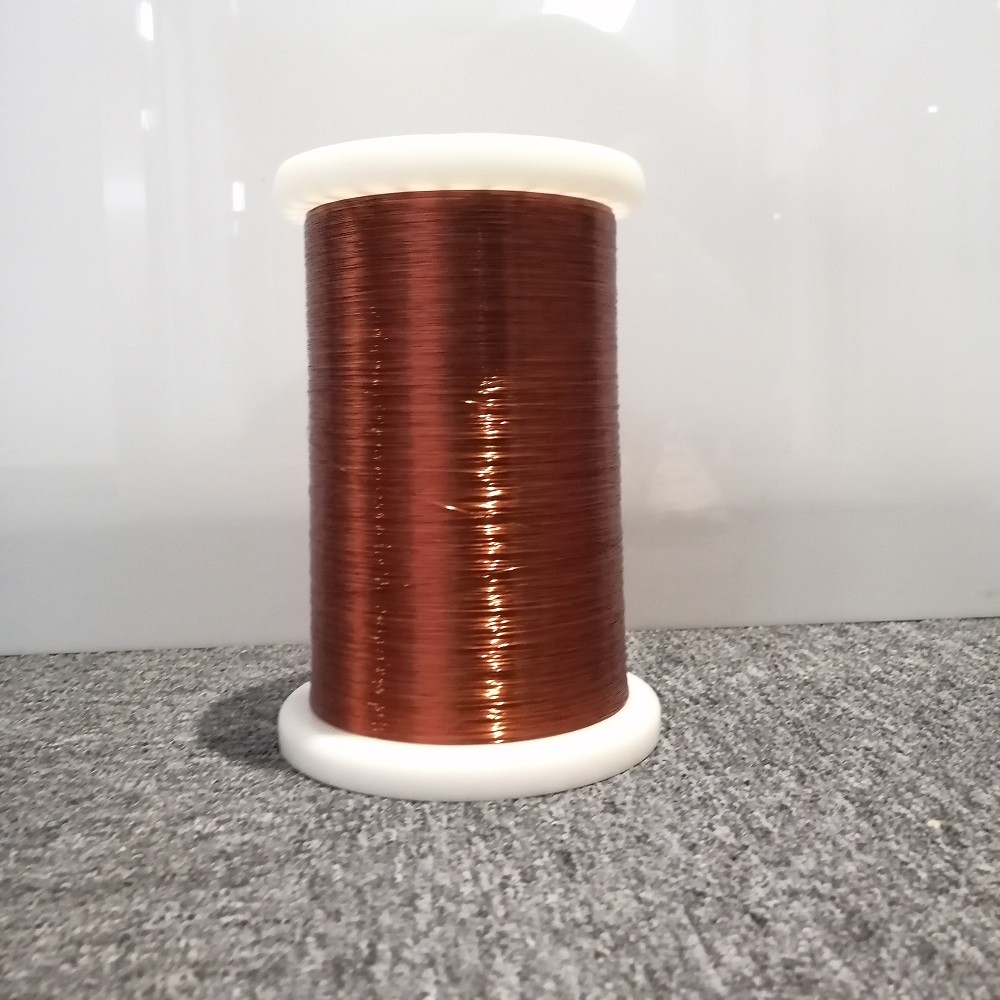

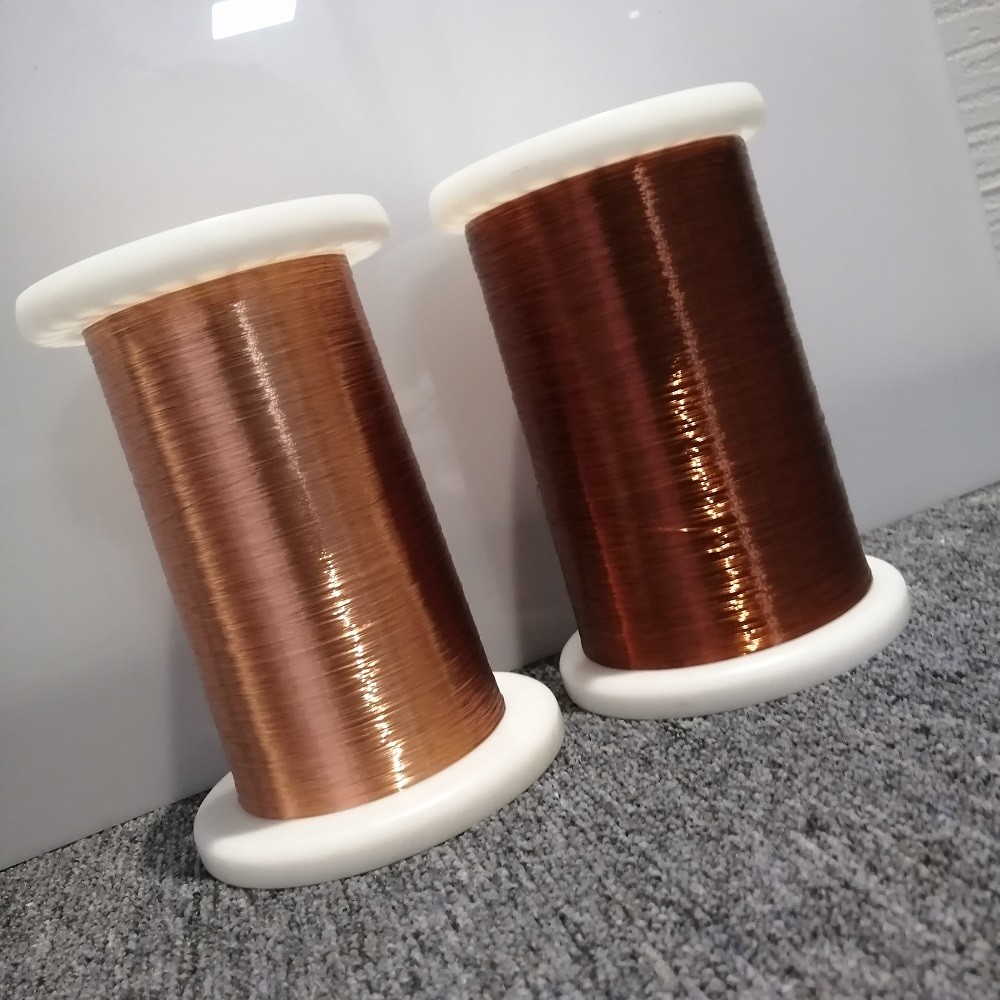

Self Adhesive Polyesterimide Enameled Copper Wire 0.24mm Class 200
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30013550240 | Product Name | Class 200 Self Bonding Enameled Copper Round Wire |
|---|---|---|---|
| Bonding Method | Alcohol Soluble | Film Grade | 1B |
| Conductor Diameter | 0.24mm | Standard | GB |
| Feature | High Tension Strength | Application | Relays / Transformer / Solenoids Coil / Motor Winding |
| High Light | Polyesterimide Enameled Copper Wire 0.24mm,Class 200 Enameled Copper Wire,OEM Self Adhesive Enameled Copper Wire |
||
Product Description
QZYN-1B/200-0.24mm Polyesterimide Coating Self Adhesive Enameled Copper Wire Special Magnet Wires
The composite coating on the surface of self-adhesive polyurethane enameled wire is self-adhesive direct welding paint, which has both self-adhesive and true weldability.With its winding coil can not only accompany the method of baking in a short time to self-bonding molding, but also in the welding head need not remove the paint film in advance, can be directly lined tin, welding.As a result, the process is greatly simplified and the production efficiency is improved.
Enameled wire is a main kind of winding wire, which is composedof conductor and insulating layer.The bare wire is annealed and softened, then painted and baked for many times.As a special kind of enameled wires, self bonding enameled wireis easy to be made into coils because of its special processability.The winding coil can be bonded to form after heating or solventtreatment. So the self-bonding enameled wire is very popularand widely used in the manufacturing of various complex or frameless electromagnetic coils.
We supply various types of special self-bonding enameled wiresmainly, including copper-clad aluminum self-bonding wires,alloyself-bonding wires, self-bonding stranded wires, silver-platedwires,240 grade high temperature self-bonding wires,etc. Weproduce all kinds of alloy self-bonding wires of 0.02mm-0.10mm,as well as copper-clad aluminum ultra-high tension self-bonding wires and copper self-bonding wires of 0.04mm-0.90mm.
| Model Number | QZYN-1B/200-0.24 | Place of Origin | Zhejiang,China |
| Conductor Material | Copper | Brand Name | CHINGCUNG |
| Conductor Diameter | 0.24mm | Feature | Pin Hole 0 |
| Bonding Method | Alcohol Soluble | Delivery Time | 3-10 work days |
| Thermal Class | 200 | Application | Magnetic Induction Coils |
| Film Grade | 1B | Packing | Plastic Spool |
| Insulation | Polyesterimide | OEM | Support |
Specification:
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
