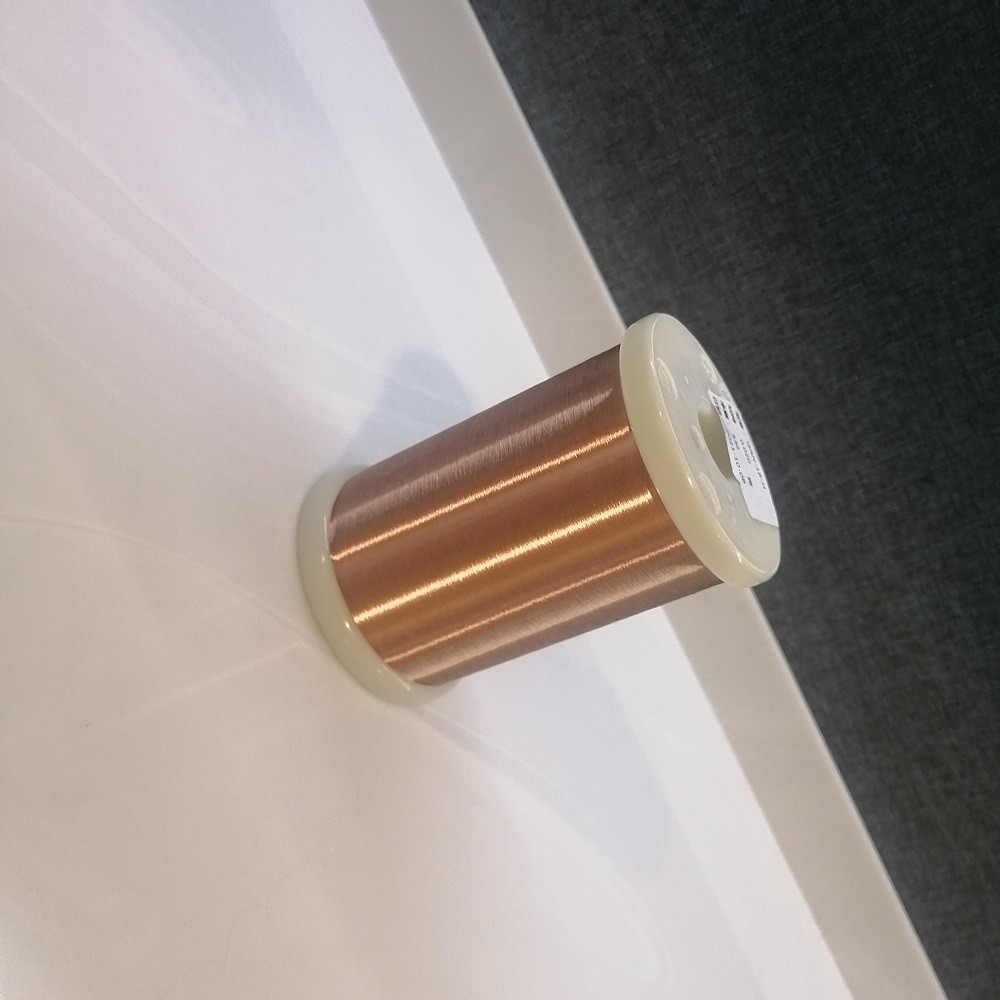

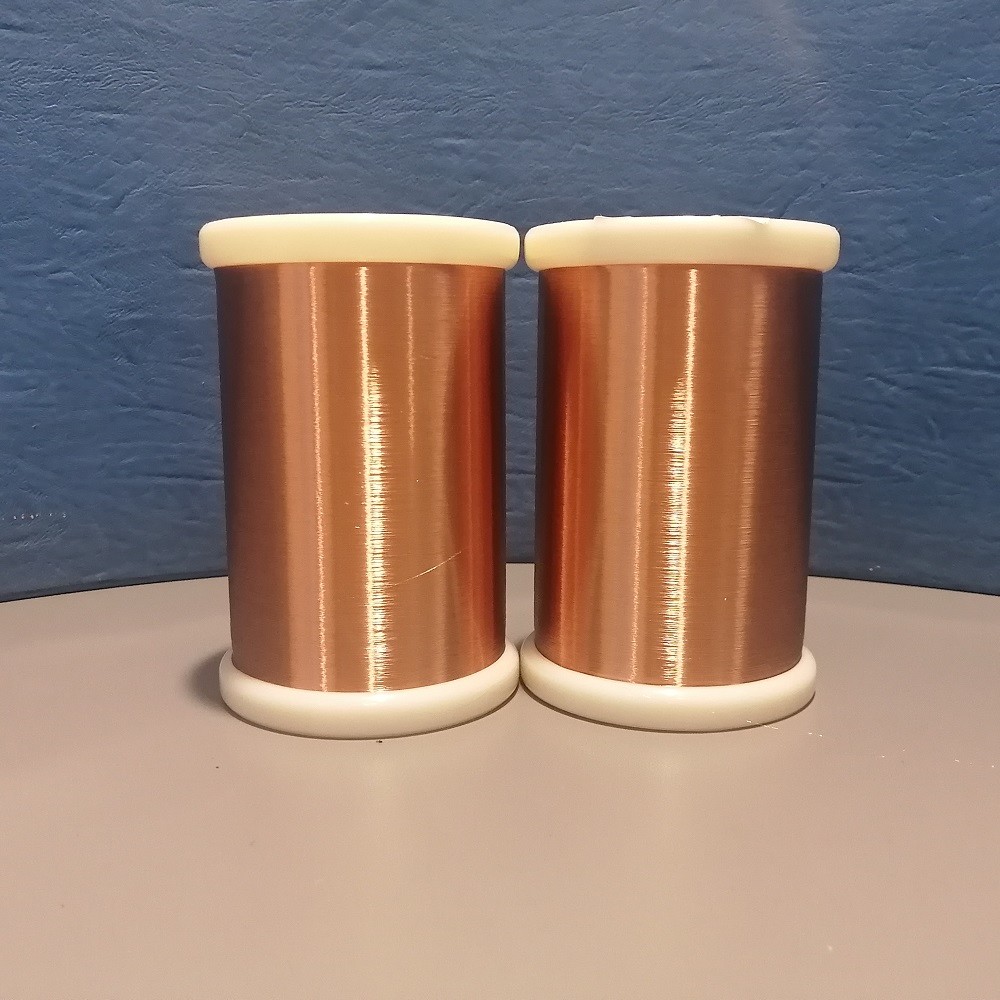

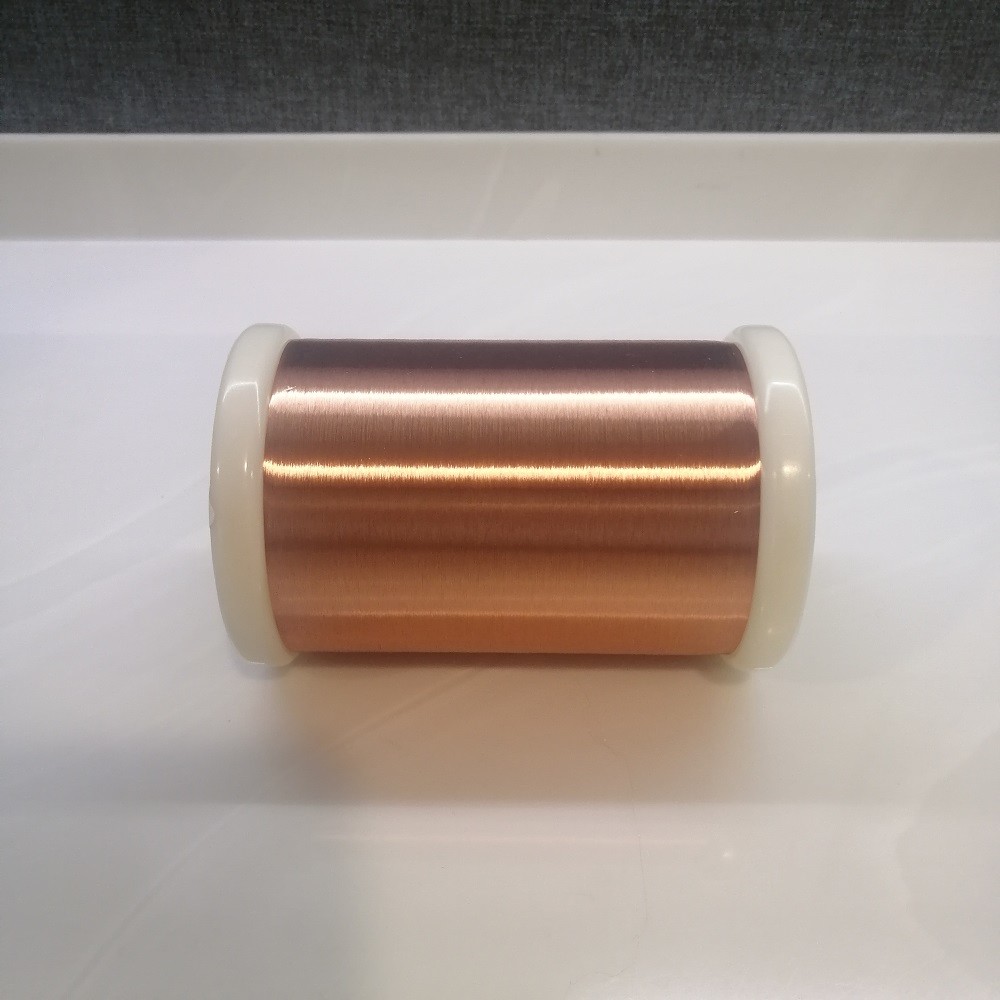

Thick Film Self Adhesive Enameled Copper Wire Round Shape Class 220
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | AISVWY3-2B/220-0.09 |
| Minimum Order Quantity | 20 Kg |
| Price | Negotiation |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No | 30011241090 | Product Name | Polyamideimide Composite Polyester Or Polyesterimide Enameled Copper Wires |
|---|---|---|---|
| Film Grade | 2B | Size | 0.09mm |
| Bonding Method | Hot Air | Thermal Class | 220 |
| Advantage | High Breakdown Voltage | Shape | Round |
| High Light | Self Adhesive Enameled Copper Wire,UL Thick Film Enameled Copper Wire,Class 220 Enameled Copper Wire |
||
Product Description
2B Super Thick Film Self Adhesive Enameled Wire
Enameled wire: the insulating paint is coated on the conductive wire core by drying the paint film as an insulating layer. Ordinary enameled wire can be divided into acetal, polyester, polyurethane, epoxy, polyester imine, oily enameled wire, special enameled wire has self-adhesive direct welding enameled wire, self-adhesive enameled wire, freeze-resistant agent enameled wire.
Special electromagnetic wire: electromagnetic wire with insulation structure and characteristics suitable for special occasions, such as medium and high frequency winding wire, polyethylene insulated nylon sheathed submersible motor winding and so on.
Features:
By making the micrograph of the section of the test coil, it can be observed that the interturns of the self-adhesive enameled wire coil are firmly glued together after forming.Because of composite self-adhesive coating enameled wire is heated, its outer layer can melt solidification painting, the turn-to-turn bonding layer permeability interact with each other, each other to make wire surface more viscous layer coating, there is no obvious adhesion interface between conductor, it also reduce wire bonding between the parts of stress concentration, to enhance the bond strength.
With the assistance of our advanced technology, we offer quality range of Copper Strips. Manufactured using finest grade of raw material our array is widely used in numerous industries for excellent finish, corrosion resistance and durability. We even custom design these strips and flats as per client specific requirement.
Specification:
| Product Name | 220℃ Self Bonding Enameled Copper Wire |
| Model Number | AISVWY3-2B/220-0.09 |
| Insulation Material | Polyamideimide composite polyester or polyesterimide enameled |
| Conductor Diameter | 0.09mm |
| Bonding Method | Hot Air |
| Thermal Class | 220 |
| Film Grade | 2B |
| Application | Coils, Windings, Voice coils |
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
