Self Bonding Round Copper Enameled Wire Polyamideimide Coating For Magnetic Induction Coils
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30011662180 | Product Name | EIW Self Adhesive Enamelled Copper Wires |
|---|---|---|---|
| Conductor Diameter | 0.18mm | Thermal Class | 200℃ |
| Conductor Material | Copper | Type | Round Copper Wire |
| Enamel Thickness | Customization | Color | Blue |
| High Light | Enameled Round Copper Wire Self Bonding,Polyamideimide Enamel Coated Copper Wire,Magnetic Induction Coils Enamel Insulated Wire |
||
Product Description

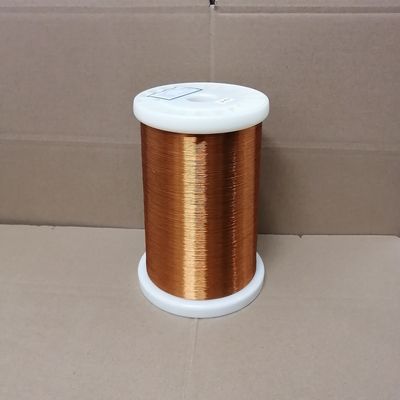

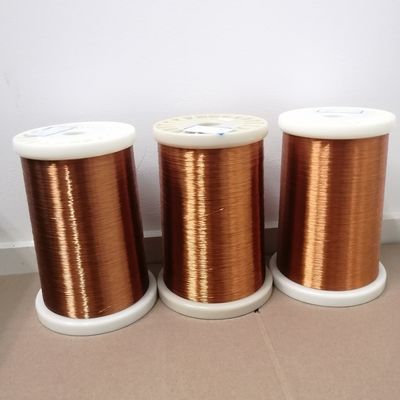

0.18mm Self Bonding Enameled Round Copper Wire With Polyamideimide Coating For Magnetic Induction Coils
Product information:
(1)Size range:0.02-0.9mm
(2)Heat resistance level:200
(3)Insulating material:Polyesterimide
(4)Since the stick way:Hot air/alcohol solution
(5)Application:Motor coils, medical instruments, voice coils, etc
Features:
By making the micrograph of the section of the test coil, it can be observed that the interturns of the self-adhesive enameled wire coil are firmly glued together after forming.Because of composite self-adhesive coating enameled wire is heated, its outer layer can melt solidification painting, the turn-to-turn bonding layer permeability interact with each other, each other to make wire surface more viscous layer coating, there is no obvious adhesion interface between conductor, it also reduce wire bonding between the parts of stress concentration, to enhance the bond strength.
With the assistance of our advanced technology, we offer quality range of Copper Strips. Manufactured using finest grade of raw material our array is widely used in numerous industries for excellent finish, corrosion resistance and durability. We even custom design these strips and flats as per client specific requirement.
Specification:
| Model Number | EISVW-GB/200-0.18 | Brand Name | CHINGCUNG |
| Conductor Material | Copper | Place of Origin | Zhejiang,China |
| Size | 0.02mm-0.9mm | Delivery Time | 3-10 work days |
| Bonding Method | Hot Air | Packing | spool |
| Thermal Class | 180℃-200℃ | OEM | Support |
| Film Grade | 1B,2B | Feature | Good Solderability Flexibility |
| Insulation Material | Polyesterimide | Application | Magnetic Induction Coils |
FAQ:
Q1:What can we buy from you?
A:Self Bonding Enamelled CCA Wire, Self Bonding Enamelled Aluminum Wire, Self Bonding Enamelled Copper Wire, etc.
Q2:What services can you provide?
A:Accepted Delivery Terms: FOB, CFR, CIF, EXW, DAP;
Accepted Payment Currency: USD, EUR, GBP,CNY;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal.
Language Spoken:English,Chinese
Q3:How long is your delivery time?
A:Generally it is 5-7 days if the goods are in stock, or it is 10-15 days if the goods are not in stock. It also depends on the order quantity.
Q4:How can you guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q5:How’s the package?
A:Normally are cartons, but also we can pack it according to your requirements.
