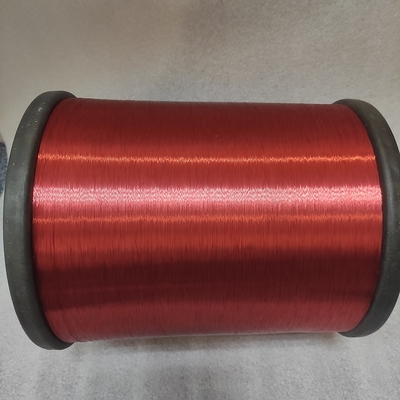

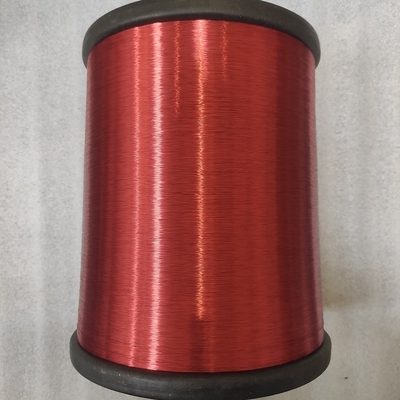

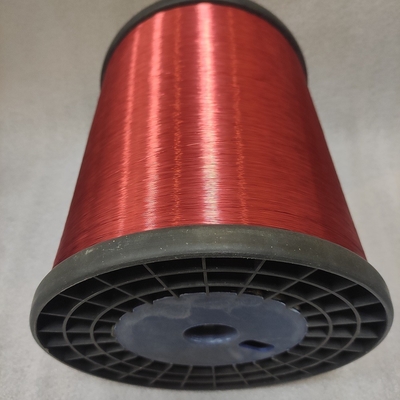

AIW 0.15mm Class H Coated Magnet Wire Red RFID Transformer Copper Round Wire
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | AISVWY3-1B/220-0.15 |
| Minimum Order Quantity | 20 Kg |
| Price | Negotiation |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No | 30011240150 | Product Name | Enameled Hot Air Wire |
|---|---|---|---|
| Film Grade | 1 | Size | 0.15mm |
| Insualtion Type | AIW | Thermal Class | 220℃ |
| Advantage | High Quality | Color | Red |
| High Light | AIW Coated Magnet Wire,0.15mm Coated Magnet Wire,RFID Transformer Copper Round Wire |
||
Product Description
Self Bonding Coated Copper Round Wire For High Frequency Transformer Compact Struture UL Standard
High Tension Wire: High tension wire is a copper alloy self-bonded enamelled wire specially designed for applications with high mechanical properties. The model names are DHT, SDHT, UDHT. For applications with high requirements for bending resistance and reliability. High tension wire has higher tension resistance, higher reliability, higher electrical conductivity, and better bending resistance than lacquered copper wire.
Features:
1, tensile strength is 20-90% higher than enameled copper wire, suitable for high-speed winding, welding foot is not easy to break the wire.
2. Electrical conductivity >77%.
3. The basic insulating layer, self-adhesive layer and lacquered copper wire are the same.
4. Straight welding performance is the same as lacquered copper wire.
Application:
Voice coil (such as miniature loudspeaker), vibration motor, receiver, printer head coil, speaker voice coil, magnetic head coil, high power output voice coil, watch coil, mobile phone voice coil, speaker voice coil and other special-shaped coil.
Sample testing:
For enameled wire customers, we can provide sample quality testing to ensure that our products can fulfill the customer's production needs before the customer orders.
Product quality:
The production process is subject to fine-meshed control of all product and process parameters. The effectiveness of the quality assurance measures has been confirmed by external auditors repeatedly in numerous certificates.
International certification:
Our products are all up to the international certification standards, and customers who need certification can provide international certification."
Specification:
| Model Number | AISVWY3-1B/220-0.15 | Brand Name | CHINGCUNG |
| Product Name | Enameled hot air wire | Place of Origin | Zhejiang,China |
| Conductor diameter | 0.15mm | Delivery Time | 3-10 work days |
| Bonding Method | Hot-Air | Packing | Plastic Spool/carton |
| Thermal Class | 220 | OEM | Yes |
| Conductor Material | 1B | Feature | High tension strength |
| Insulation Material | Red Copper | Application | Motor Winding Wire |
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
