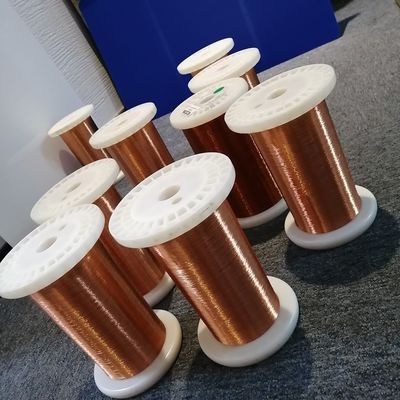

Hot Air Type Self Adhesive Copper Wire Coil Magnetic Induction 0.27mm
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | AISVWY3-1B/220-0.27 |
| Minimum Order Quantity | 20 Kg |
| Price | Negotiation |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No | 30011240127 | Product Name | Self Bonding Enameled Copper Wire |
|---|---|---|---|
| Conductor Material | Red Copper | Size | 0.27mm |
| Insualtion | 2UEW | Bonding Way | Hot Wind |
| Advantage | Excellent Film Adhesion | OEM | Support |
| High Light | Magnetic Induction Copper Wire Coil,Hot Air Type Enameled Copper Wire,0.27mm Self Adhesive Copper Wire Coil |
||
Product Description
0.27mm Hot Air Type Self-Adhesive Wire For Magnetic Induction Coils Spot Supplies
The HBAIW circular wire is a double layer paint film structure. The basic insulation layer is heat resistant grade 220 in polyamide imide material, and the surface self-adhesive layer is polyamide material.
Specification range: from 0.03mm to 0.95mm (AWG 46 to AWG 18.5)
Bonding mode: hot melt
Bonding conditions: 150~180°C
Softening temperature: 140~150°C
Heat resistance rating: 220,220
Product standard: IEC60317-26 NEMA MW81-C
Features:
Excellent insulation performance
Excellent heat resistance
High thermal shock temperature: 280°C
High softening breakdown temperature: up to 400°C (rising temperature method)
Meet multiple Air Reflow (peak Reflow temperature 265°C) requirements
Superior mechanical properties, scratch resistance.
Superior solvent resistance.
Application: Integrated molding inductor, special transformer, special micromotor, aviation technology and military electronics.
Sample testing:
For enameled wire customers, we can provide sample quality testing to ensure that our products can fulfill the customer's production needs before the customer orders.
Product quality:
The production process is subject to fine-meshed control of all product and process parameters. The effectiveness of the quality assurance measures has been confirmed by external auditors repeatedly in numerous certificates.
International certification:
Our products are all up to the international certification standards, and customers who need certification can provide international certification."
Specification:
| Model Number | AISVWY3-1B/220-0.27 | Brand Name | CHINGCUNG |
| Product Name | Special Magnet Wires | Place of Origin | Zhejiang,China |
| Conductor diameter | 0.27mm | Delivery Time | 3-10 work days |
| Bonding Method | Hot-Air | Packing | Plastic Spool/carton |
| Thermal Class | 220 | OEM | Yes |
| Conductor Material | 1B | Feature | High tension strength |
| Insulation Material | Red Copper | Application | Motor Winding Wire |
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
