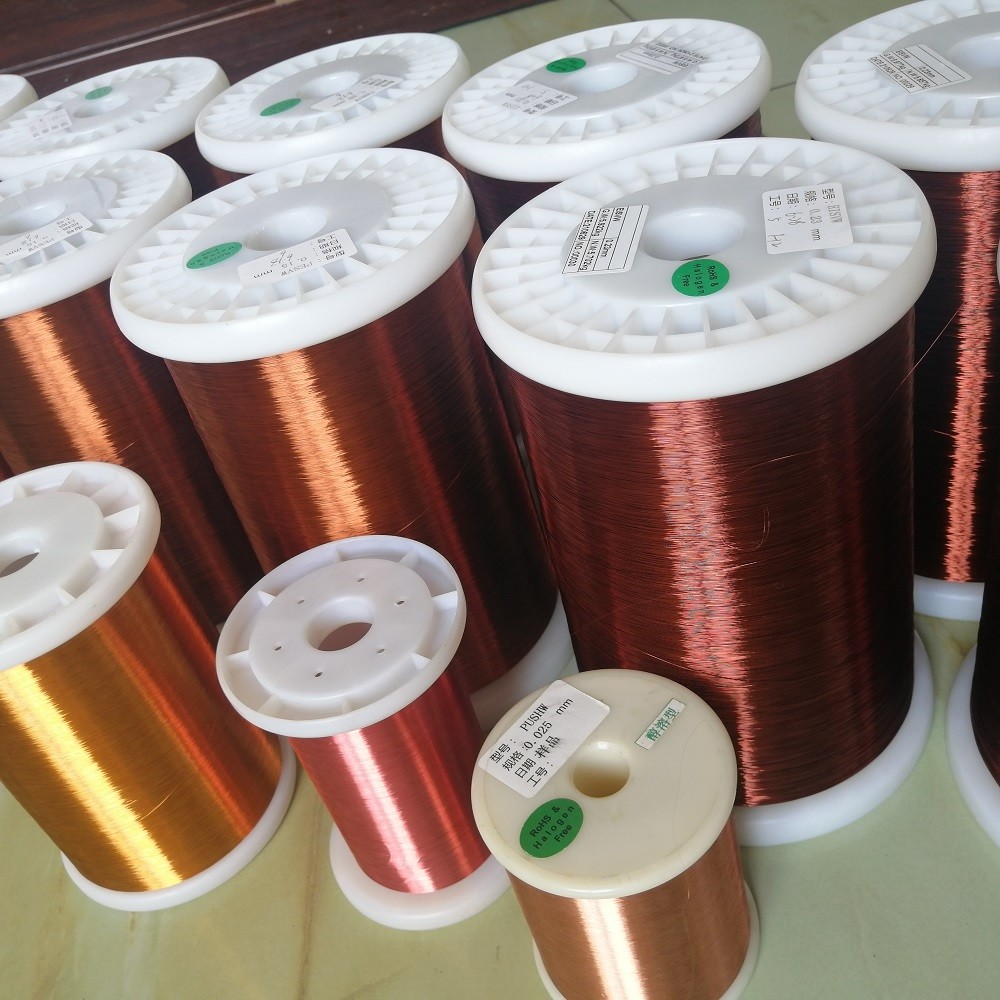

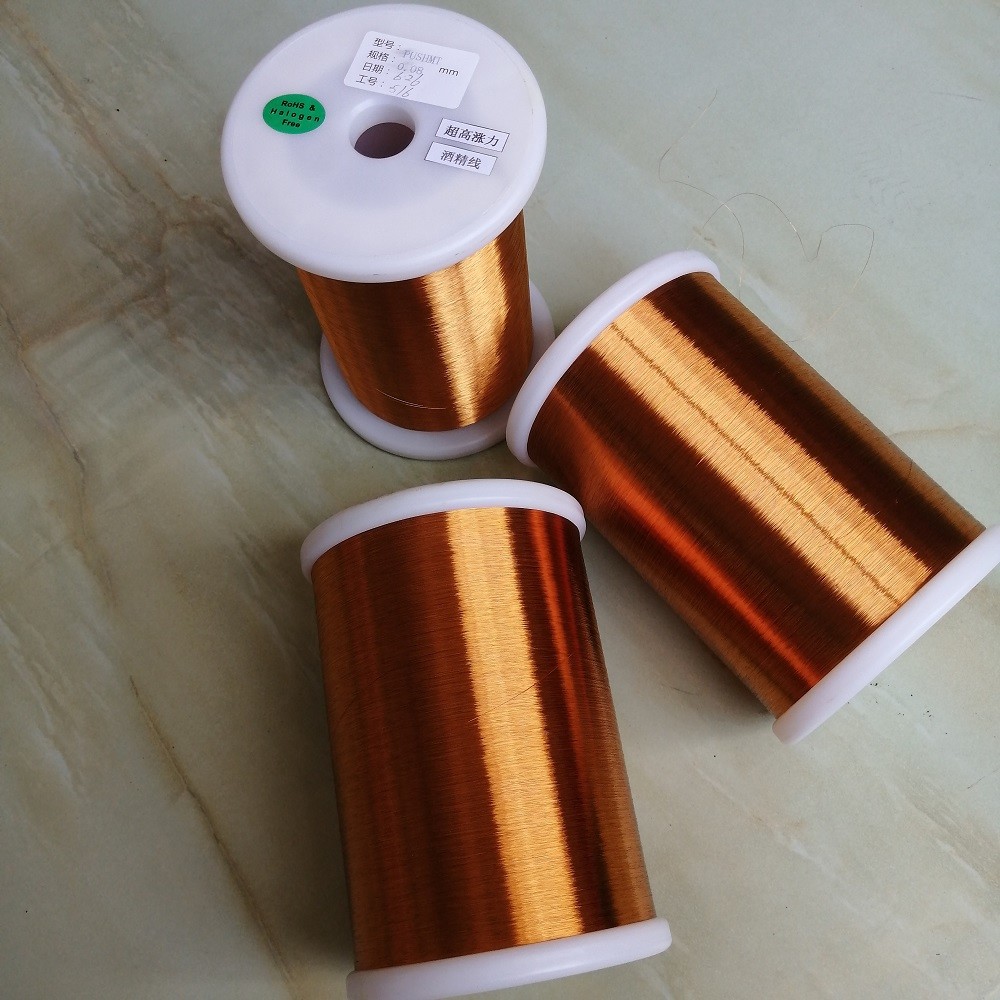

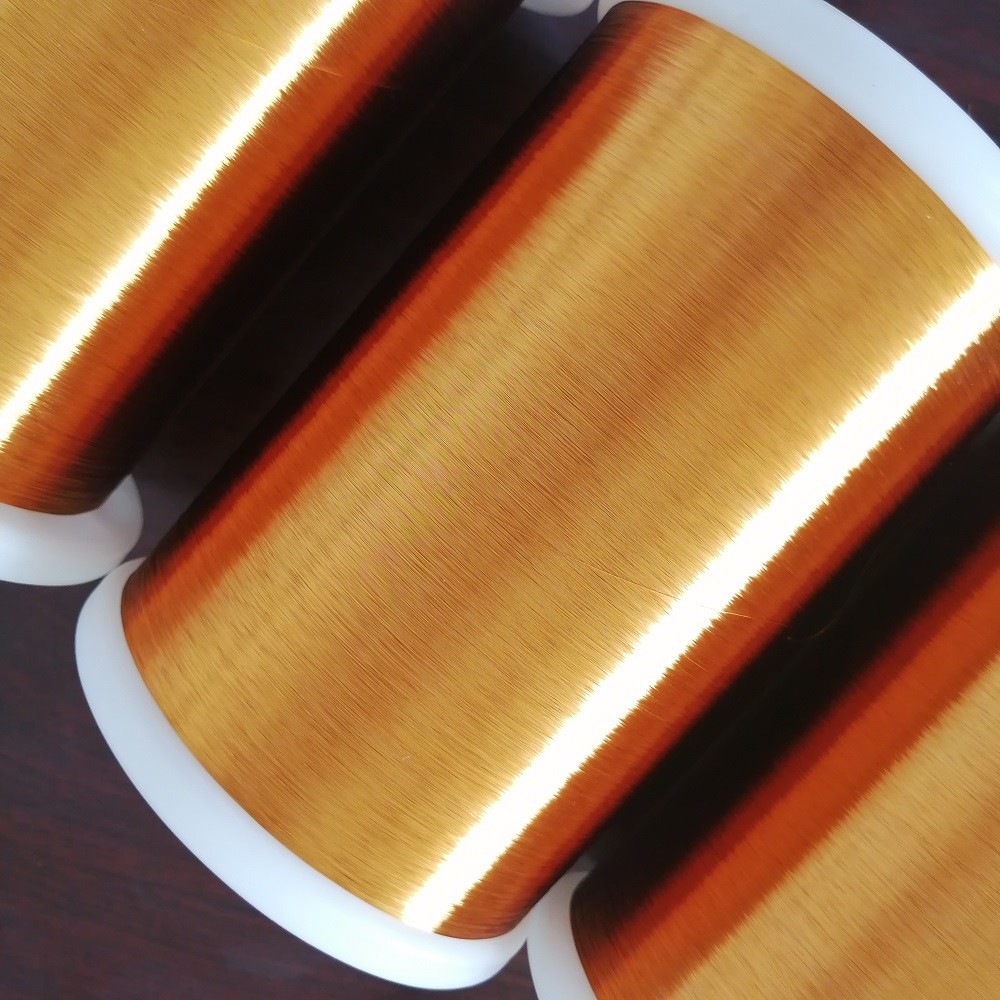

0.075mm Voice Coil Wire
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | EICCAW-1B/200-0.075 |
| Minimum Order Quantity | 30 Kg |
| Price | USD 233.33/Kg |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30021430075 | Name | Hot Enameled Copper Wire Magnet Winding Wire |
|---|---|---|---|
| Material | Aluminum And Copper | Standard | IEC NEMA |
| Class | 200 | Color | Nature/green/blue/red |
| Highlight | 0.075mm Voice Coil Wire,CCA Enameled Round Wire,IEC NEMA Voice Coil Wire |
||
Product Description
0.075mm Self Adhesive Polyesterimide CCA Enameled Round Wire With Different Color
Products Main Features:
This product provides high cut through, excellent heat shock and high heat resistance characteristics. The density of aluminum is low ( just 40 percent of copper enameled wire). It is light and the length in each unit weight can reach 2.5-2.7 times than that of copper enameled wire. By using this material, the cost can be reduced by 30 percent above.
Enameled wire is a main kind of winding wire, which is composedof conductor and insulating layer.The bare wire is annealed and softened, then painted and baked for many times.As a special kind of enameled wires, self bonding enameled wireis easy to be made into coils because of its special processability.The winding coil can be bonded to form after heating or solventtreatment. So the self-bonding enameled wire is very popularand widely used in the manufacturing of various complex or frameless electromagnetic coils.
We supply various types of special self-bonding enameled wiresmainly, including copper-clad aluminum self-bonding wires,alloyself-bonding wires, self-bonding stranded wires, silver-platedwires,240 grade high temperature self-bonding wires,etc. Weproduce all kinds of alloy self-bonding wires of 0.02mm-0.10mm,as well as copper-clad aluminum ultra-high tension self-bonding wires and copper self-bonding wires of 0.04mm-0.90mm.
Specification:
| Enameled Type | Polyester | Modified Polyester |
| Insulation Type | PEW/130 | PEW(G)/155 |
| Thermal class | 130, CLASS B | 155, CLASS F |
| Conductor | Cu | Cu |
| Size(mm) supply | 0.02-5.00 | 0.02-5.00 |
| Enamel thickness | Grade(0,1,2,3) | Grade(0,1,2,3) |
| Standard | NEMA, JIS, IEC, GB | NEMA, JIS, IEC, GB |
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
