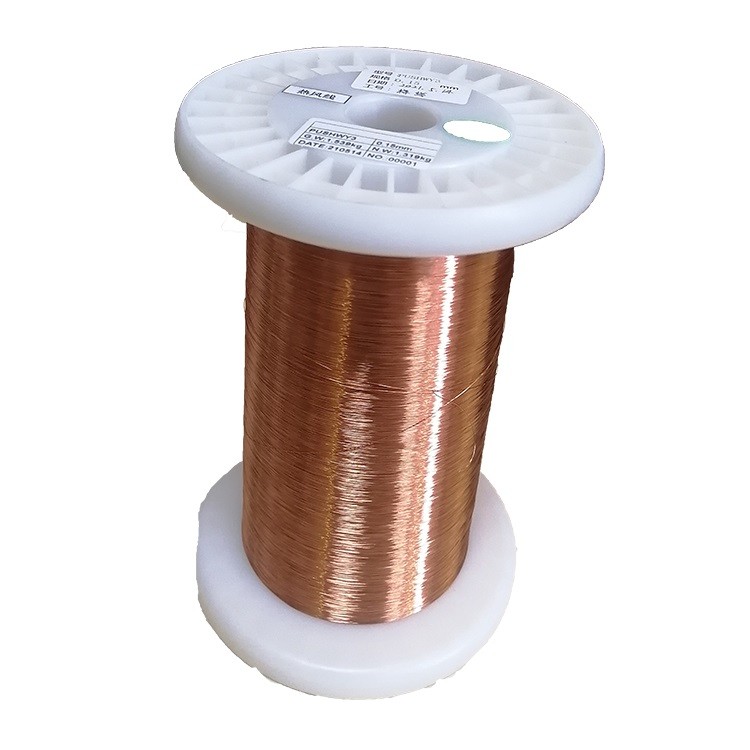

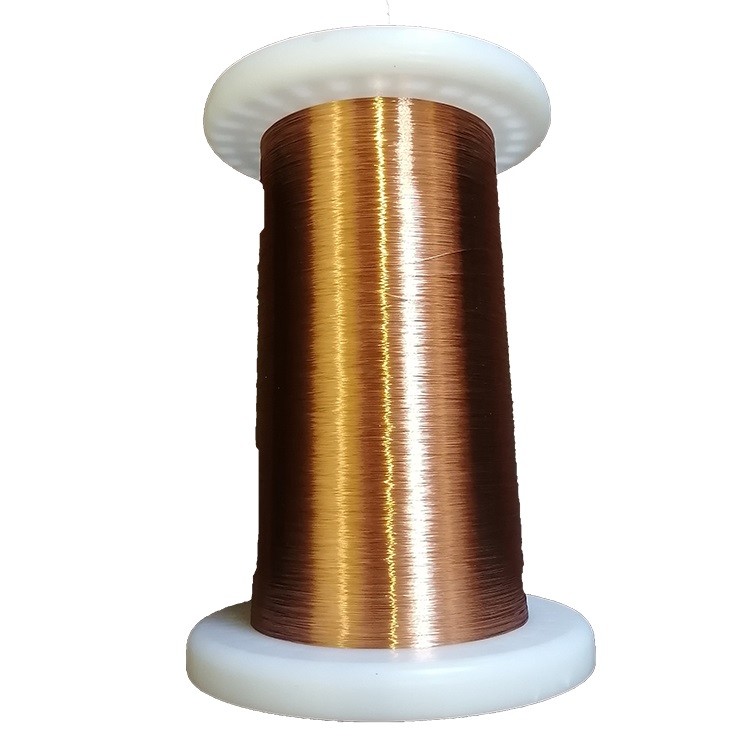

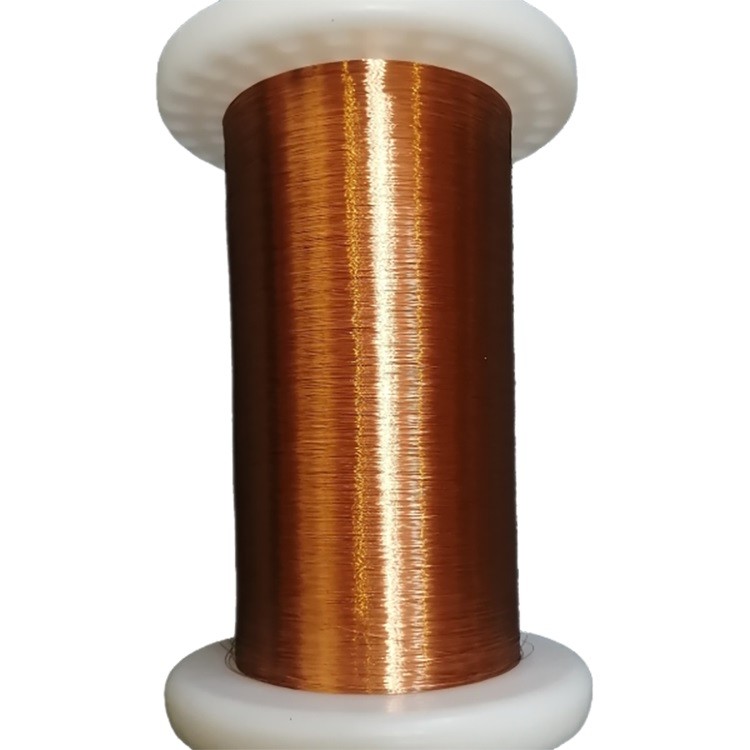

0.17mm Class 200 EIW Self Bonding Enamelled Copper Wires UL
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | EICCAW-1B/200-0.17 |
| Minimum Order Quantity | 30 Kg |
| Price | USD 56.67/Kg |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30021430170 | Product | Polyesterimide Enameled Round Copper Clad Aluminum Wires |
|---|---|---|---|
| Material | CCA | Type | Self-adhesive |
| Bonding Method | Alcohol Soluble/Hot Air | Color | Red And More |
| Feature | High Breakdown Voltage | Application | Motor,dry Transformer,generator,relays |
| High Light | Enamelled Copper Wires UL,EIW self bonding magnet wire,0.17mm Enamelled Copper Wires |
||
Product Description
0.17mm Class 200 EIW Self Bonding Enamelled Copper Wires UL Certificated
chemical resistance:Including solvent resistance, solderability.
Solvent resistance refers to the general enameled wire after winding into a coil: after the impregnation process, the solvent in the impregnating varnish has different degrees of swelling effect on the paint film at a higher temperature. The chemical resistance of the enameled wire paint film is mainly determined by the characteristics of the paint film itself: under certain conditions of the paint, the enamel process has acertain influence on the solvent resistance of the enameled wire.
Our factory is equipped with automatic manufacturing facilitiesand advanced testing and inspection equipments. We have anumber of patent certificates,strong technical strength.At thesame time, we also have perfect production management system and quality assurance system to maintain the stability and reliability of our products.
Specification:
| Copper Clad aluminum wire (CCA) | |||||||||
| Dia | Tolerance (mm) | Resistance/Ω/m20℃ | Elongation% | G2 | Min.Insulation(mm) | Min Adhesive (g) | |||
| (mm) | Max OD | ||||||||
| SKHT | KHT | SKHT | KHT | (mm) | Insulation | Bonding layer | |||
| 0.025 | 0.025±0.001 | 52.42±5% | 56.18±5% | 3 | 3 | 0.037 | 0.002 | 0.002 | 5 |
| 0.03 | 0.030±0.001 | 36.40±7% | 39.03±7% | 4 | 4 | 0.043 | 0.002 | 0.002 | 5 |
| 0.035 | 0.035±0.001 | 26.75±7% | 28.67±7% | 5 | 5 | 0.048 | 0.002 | 0.002 | 5 |
| 0.04 | 0.040±0.001 | 20.48±7% | 21.95±7% | 6 | 6 | 0.055 | 0.002 | 0.002 | 5 |
| 0.045 | 0.045±0.001 | 16.18±7% | 17.34±7% | 7 | 7 | 0.06 | 0.002 | 0.002 | 8 |
| 0.05 | 0.050±0.002 | 13.11±7% | 14.05±7% | 5 | 8 | 0.067 | 0.003 | 0.003 | 8 |
| 0.055 | 0.055±0.002 | 10.83±7% | 11.61±7% | 8 | 8 | 0.073 | 0.003 | 0.003 | 8 |
| 0.06 | 0.060±0.002 | 9.10±7% | 9.76±7% | 9 | 9 | 0.078 | 0.003 | 0.003 | 8 |
| 0.065 | 0.065±0.002 | 7.75±7% | 8.25±7% | 11 | 11 | 0.084 | 0.003 | 0.003 | 8 |
| 0.07 | 0.070±0.002 | 6.69±7% | 7.11±7% | 12 | 12 | 0.09 | 0.003 | 0.003 | 8 |
| 0.075 | 0.075±0.002 | 5.82±7% | 6.19±7% | 12 | 12 | 0.096 | 0.003 | 0.003 | 10 |
| 0.08 | 0.080±0.002 | 5.12±7% | 5.36±7% | 14 | 14 | 0.101 | 0.003 | 0.003 | 10 |
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Do you have your own R&D team?
A:Yes, we can customize products as your requirements.
Q3:What's the main market of your company?
A:We have customers all over the world.
Q4:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance, balance before shippment.
Q5:How does your factory do regarding quality control?
A:We have a special QC department, Quality inspection team including incoming material, process and finished product inspection.
