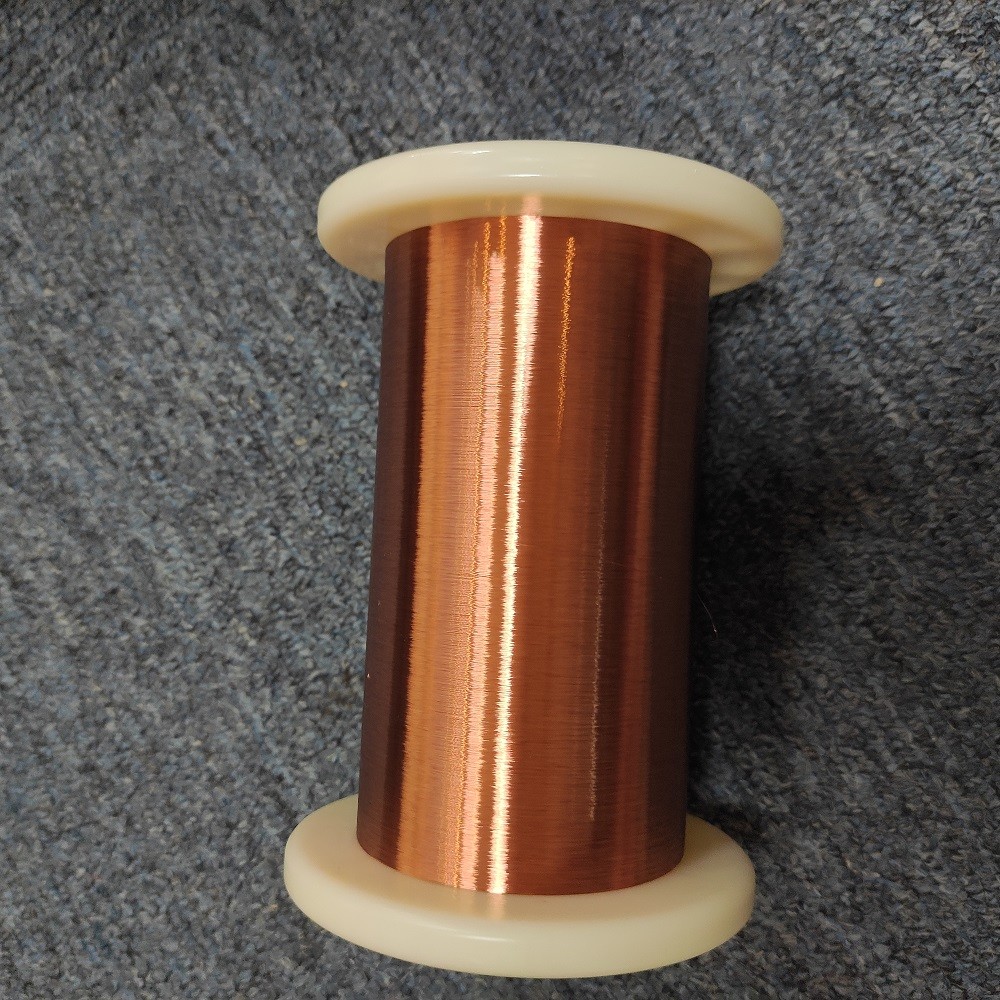

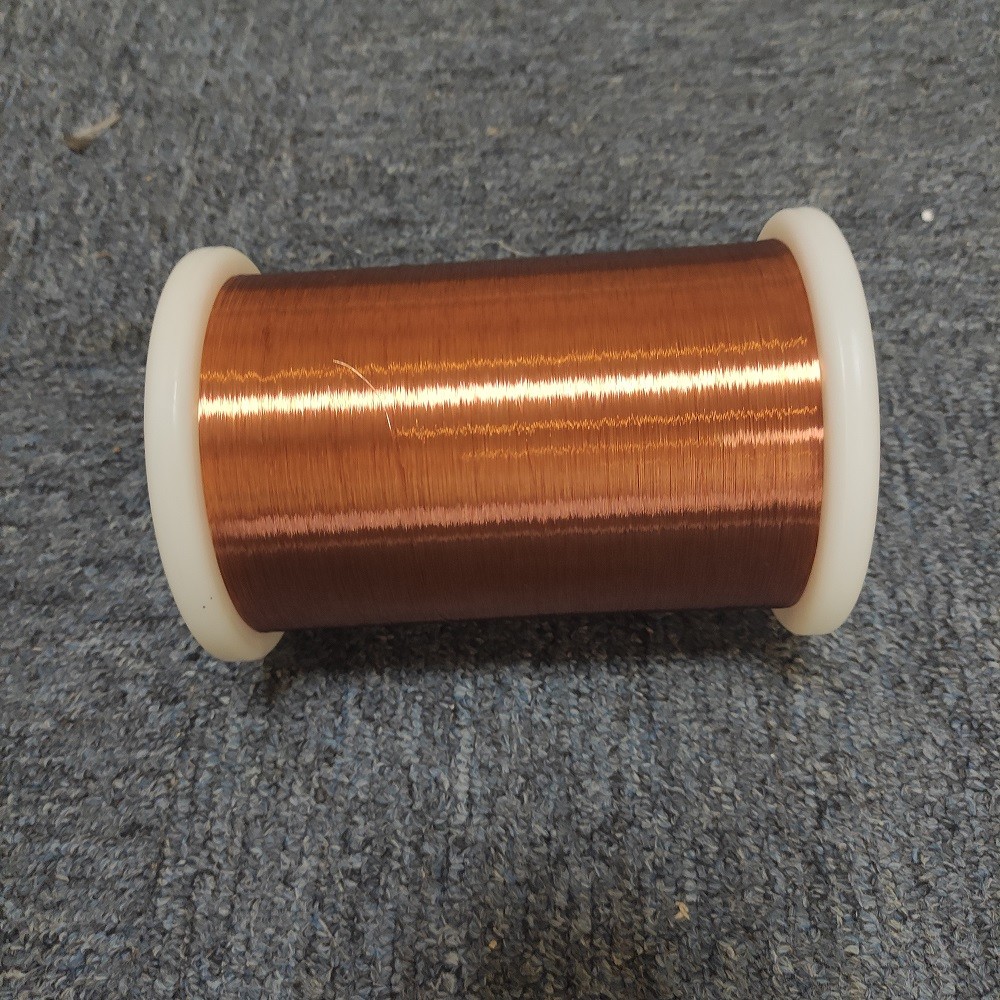

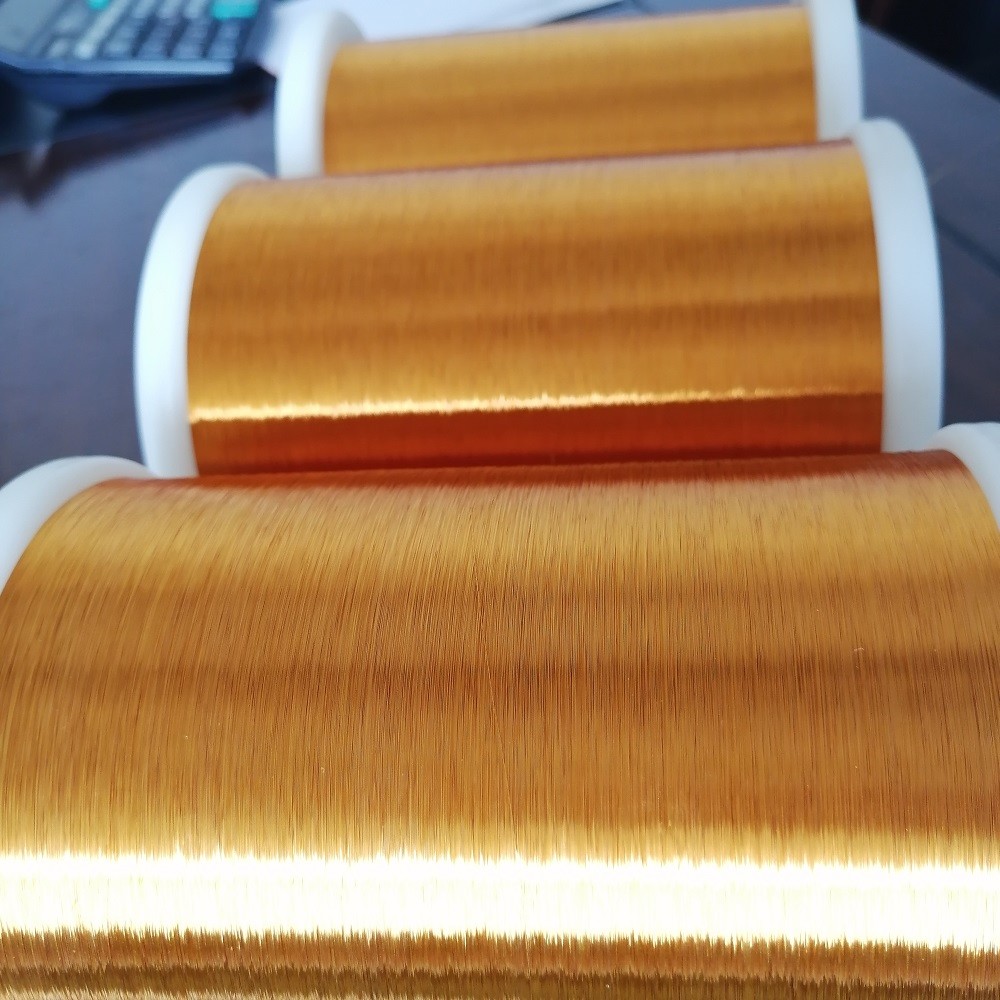

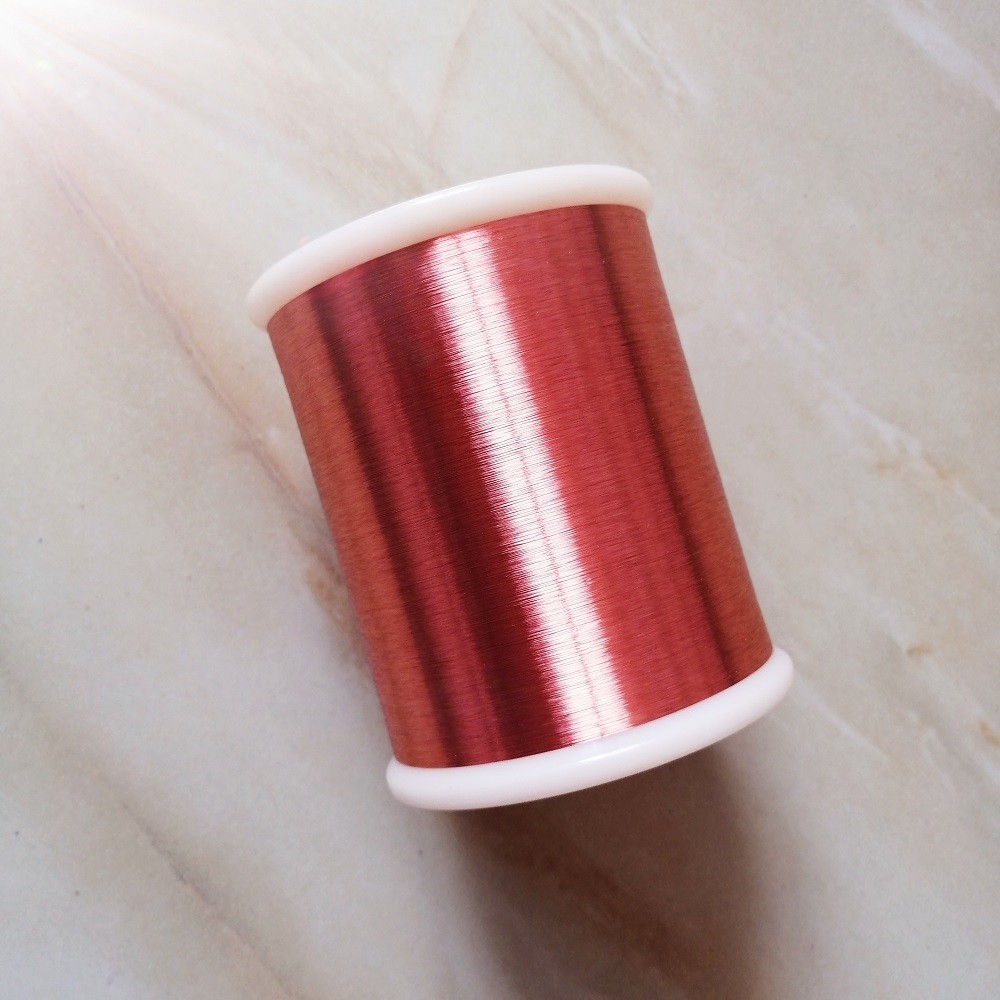

Self Bonding Voice Coil Wire
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | EICCAW-1B/200-0.085 |
| Minimum Order Quantity | 30 Kg |
| Price | USD 158.89/Kg |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30021430085 | Product | CCA Self Adhesive Enamelled Copper Wires |
|---|---|---|---|
| Insualtion | EIW | Material | Copper Clad Aluminum |
| Size | 0.085mm | Thermal Class | 200 |
| Self Adhesive Layer | Alcohol Soluble | Standard | IEC NEMA GB JIS |
| Highlight | Self Bonding Voice Coil Wire,Class 200 winding copper wire,0.085mm Voice Coil Wire |
||
Product Description
Voice Coil Wire Self Bonding Layer With Polyesterimide Enameled Wires High Tension Strength
Features:
Heat Bonding All bondcoats can be heat bonded, either by oven-heating or by directing hot air on to the wire during winding.Disadvantages of oven bonding are the longer bonding time as well as the potential need for many winding fixtures. Hot air bonding, though done typically at slower winding speed, has the advantage of the elimination of a secondary bonding operation.
The motor windings can be made entirely or partially without impregnation by using self-adhesive enameled wire.The so-called "partially omitted dipping process" refers to some windings considering the insulation and groove, iron core and other fixed or some special needs, can be appropriately made some additional dipping process.In addition, using self-adhesive enameled wire to manufacture motor windings can also realize continuous and automatic production, save production sites and improve the quality level of coils.
Our main application fields incude:
High temperature resistant self-bonding wires for aviation; Self-bonding wires for speakersin cars, voice coils, telephones and computers; Self-bondingwires for motors in medical instruments, precision instruments,electric tools, household appliances and robots, etc.
At the same time,we can also customize various.types ofself-bonding enameled wires to meet different national standardsfor customers, according to the technical parameters provided by customers.
Our factory is equipped with automatic manufacturing facilitiesand advanced testing and inspection equipments. We have anumber of patent certificates,strong technical strength.At thesame time, we also have perfect production management system and quality assurance system to maintain the stability and reliability of our products.
Specification:
| Enameled Type | polyester-imide | Polyamide-imide | Polyurethane |
| Insulation Type | EIW/180 | EI/AIW/200 | UEW/130,155,180 |
| Thermal class | 180, CLASS H | 200, CLASS C | B,F,H CLASS |
| Conductor | Cu | Cu | Cu |
| Size(mm) supply | 0.02-5.00 | 0.02-5.00 | 0.11-5.00 |
| Enamel thickness | Grade(1B,2B,GB) | Grade(1B,2B,GB) | Grade(1B,2B,GB) |
| Standard | NEMA, JIS, IEC, GB | NEMA, JIS, IEC, GB | NEMA, JIS, IEC, GB |
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.
Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.
Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
