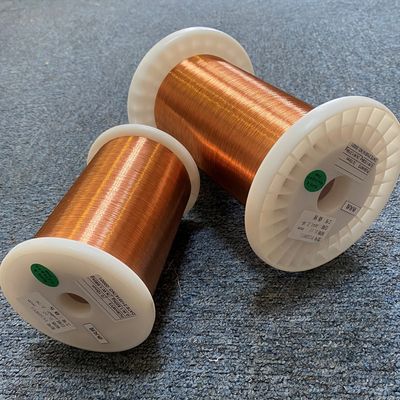

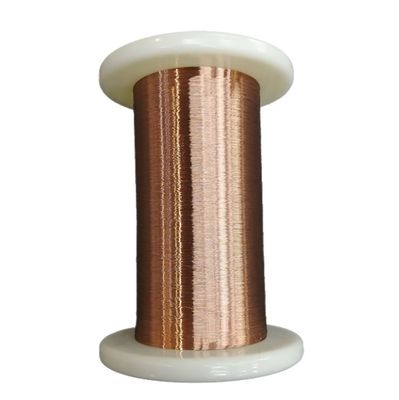

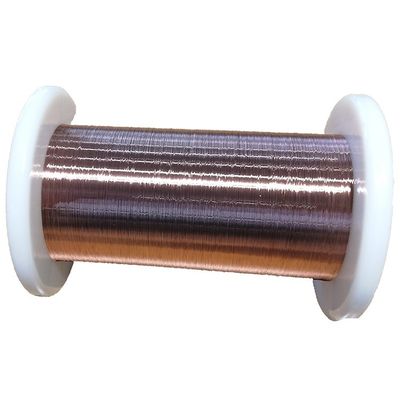

Class H Self Bonding Coated Copper Round Wire AWG 33 Solderable Wire For Motor

  • Class H Self Bonding Coated Copper Round Wire AWG 33 Solderable Wire For Motor
  • Class H Self Bonding Coated Copper Round Wire AWG 33 Solderable Wire For Motor
  • Class H Self Bonding Coated Copper Round Wire AWG 33 Solderable Wire For Motor
Place of Origin Zhejiang, China
Brand Name CHINGCUNG
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number PESHW-1B/180-0.17
Minimum Order Quantity 30 Kg
Price Negotiation
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Order No. 30011530170 Product Name Hot Air/Alcohol Soluble Polyesterimide Self Adhesive Wires
Enamel Thickness Grade 1B Insualtion EIW
Class 180 Material High Purity Copper
Application Speaker Voice Coil Advantage High Breakdown Voltage
High Light

Class H Copper Round Wire

,

AWG 33 motor magnet wire

,

CHINGCUNG Self Bonding Copper Round Wire
Leave a Message
Product Description

Class H Self Bonding Coated Copper Round Wire AWG 33 Solderable Wire For Motor


Ultra Fine Magnet Wires:
generally 0. 050mm following specifications self sticking enamels wire products, its characteristics are small specifications, thick paint film, so the existence of paint film fluctuation, unstable thickness of adhesive layer shortcomings, affect bonding characteristics, affect user product quality.Because self-adhesive enamels are composite layer products, bottom coating determines product performance characteristics, surface coating affects bonding performance, both need to take into account, especially bonding paint due to process differences, generally can not bake with primer, using the same furnace to produce primer layer and bonding layer performance can not guarantee good.


Our factory is equipped with automatic manufacturing facilitiesand advanced testing and inspection equipments. We have anumber of patent certificates,strong technical strength.At thesame time, we also have perfect production management system and quality assurance system to maintain the stability and reliability of our products.

Specification:

AWG line diameter comparison table
AWG Overall Diameter Area
(mm2)		 Electrical Resistance(Ohm/km)
mm inch
22 0.643 0.0253 0.3247 54.3
23 0.574 0.0226 0.2588 66.8
24 0.511 0.0201 0.2047 89.4
25 0.44 0.0179 0.1624 106
26 0.404 0.0159 0.1281 143
27 0.361 0.0142 0.1021 168
28 0.32 0.0126 0.0804 227
29 0.287 0.0113 0.0647 289
30 0.254 0.0100 0.0507 361
31 0.226 0.0089 0.0401 430
32 0.203 0.0080 0.0316 583
33 0.18 0.0071 0.0255 944
34 0.16 0.0063 0.0201 956
35 0.142 0.0056 0.0169 1,200
36 0.127 0.0050 0.0127 1,530
37 0.114 0.0045 0.0098 1,788
38 0.102 0.0040 0.0081 2,400
39 0.089 0.0035 0.0062 2,740
40 0.079 0.0031 0.0049 4,080
41 0.071 0.0028 0.0040 4,264
42 0.064 0.0025 0.0032 6,300
43 0.056 0.0022 0.0025 6,936
44 0.051 0.0020 0.0020 9,180
45 0.046 0.0018 0.0016 10,200
46 0.041 0.0016 0.0013 16,300



FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.

Q2:Do you have your own R&D team?
A:Yes, we can customize products as your requirements.

Q3:What's the main market of your company?
A:We have customers all over the world.

Q4:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance, balance before shippment.

Q5:How does your factory do regarding quality control?
A:We have a special QC department, Quality inspection team including incoming material, process and finished product inspection.
