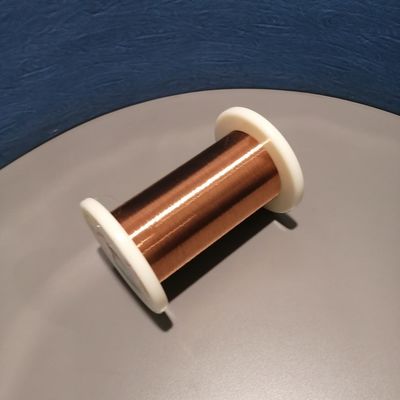

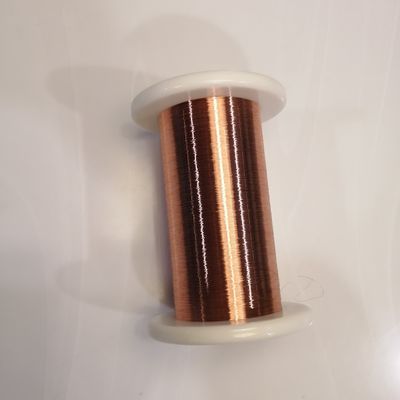

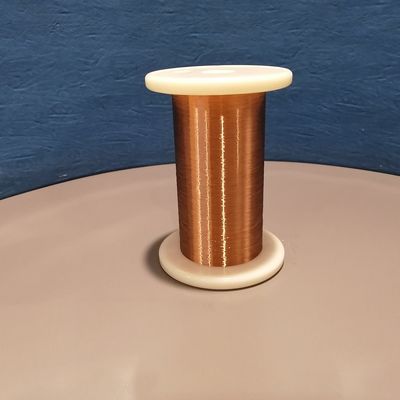

AWG 37 Self Bonding Wire PE/AIW Insulation Motor Winding Copper Wire 0.11mm
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | AISVWY3-1B/200-0.11 |
| Minimum Order Quantity | 20 Kg |
| Price | Negotiation |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No | 30011220110 | Product Name | 0.11mm High Temperature Resistant Enameled Wire |
|---|---|---|---|
| Insualtion | Polyamideimide Composite Polyester/polyesterimide | Class | 200 |
| Film Grade | 1B/2B/GB | Product Conductor | Round Copper |
| Application | Coils, Windings, Voice Coils | Advantage | Excellent Film Adhesion |
| High Light | Insulation motor winding copper wire,37 awg magnet wire,AIW motor winding copper wire |
||
Product Description
AWG 37 Self Bonding Wire PE/AIW Insulation Motor Winding Copper Wire
Product Description:
The use of high heat resistance electromagnetic wire and the corresponding insulation system can not only make the electrical products adapt to higher working temperature, but also have better safety, reliability and longer service life.High heat resistance polyester imide and polyamide-imide composite polyester or polyester imide enamel-coated wire can meet the requirements of IEC 317-8, 317-42 and NEMA MW30, MW72 or MW74 standards, is a kind of heat resistance to 200-220 level and balanced comprehensive performance of the enamel-coated wire, its temperature index can reach 220-240℃,The softening breakdown temperature is 360-420℃, the heat shock 1d winding non-cracking temperature is 220-240℃, and the medium loss steep rise temperature can reach 200-220℃.Used as winding wires for high temperature resistant motors, transformers and electronic components.
Sample testing:
For enameled wire customers, we can provide sample quality testing to ensure that our products can fulfill the customer's production needs before the customer orders.
Product quality:
The production process is subject to fine-meshed control of all product and process parameters. The effectiveness of the quality assurance measures has been confirmed by external auditors repeatedly in numerous certificates.
International certification:
Our products are all up to the international certification standards, and customers who need certification can provide international certification."
Specification
| 0.11mm Self bonding polyamideimide composite polyester or polyesterimide enameled round copper wires | |
| Brand Name | CHINGCUNG |
| *Model Number | AISVWY3-1B/200-0.11 |
| Conductor Diameter(mm) | 0.11 |
| *Conductor | Copper |
| *Insulation | polyamideimide composite polyester or polyesterimide |
| Thermal Class | 200 |
| *Feature | High Temperature Resistant |
| *Delivery Time | 3-10 work days |
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.
Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.
Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
