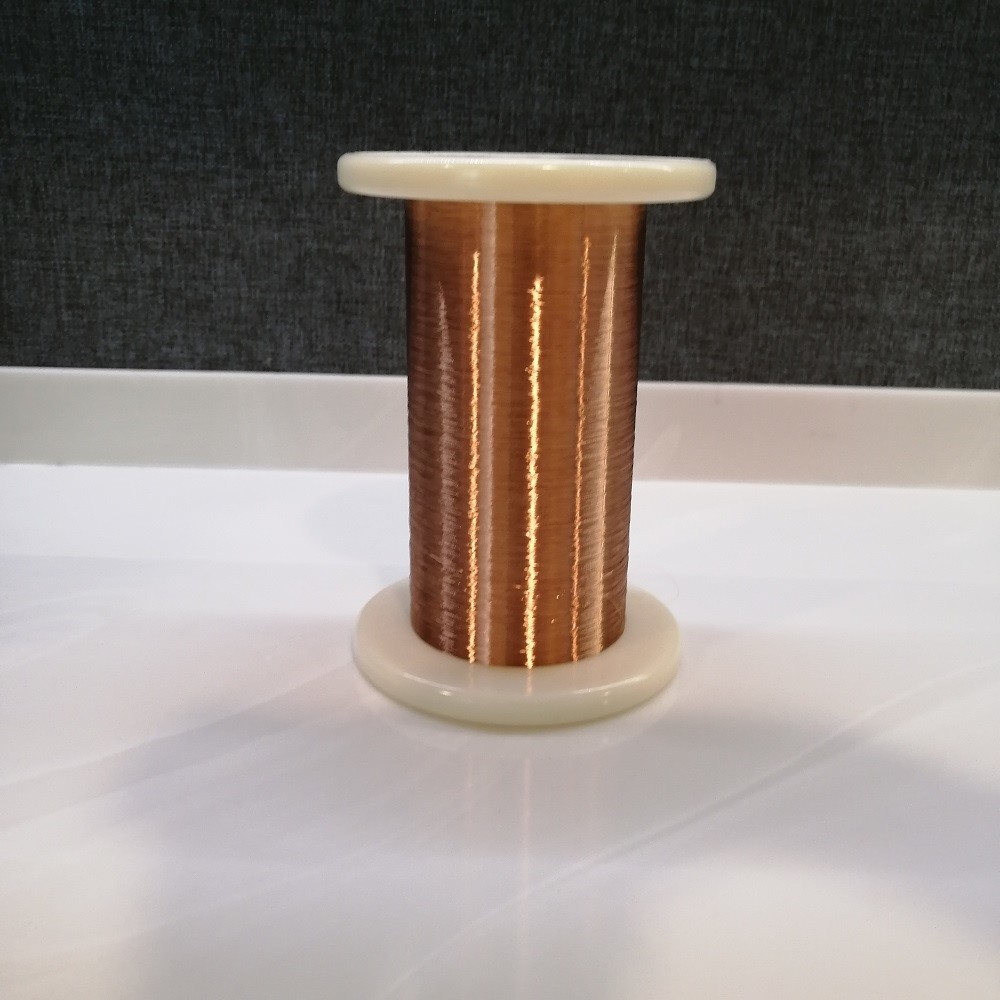

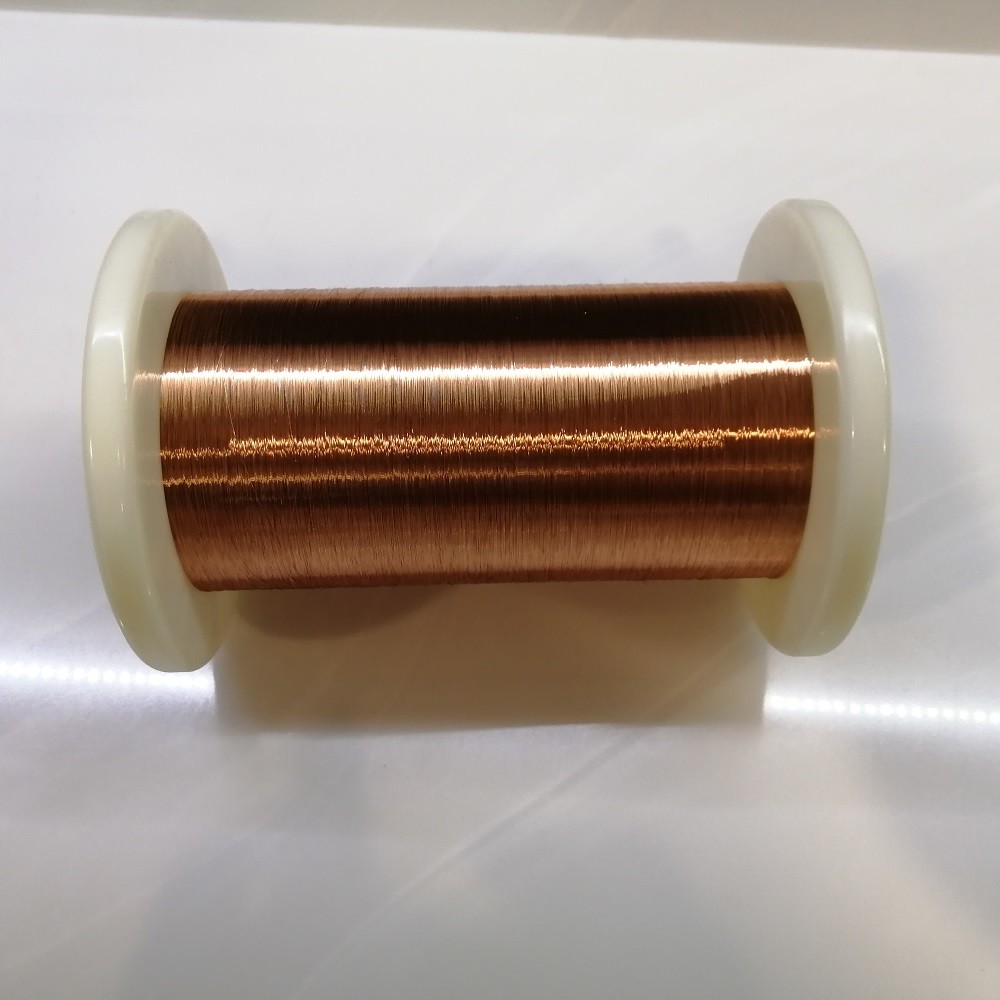

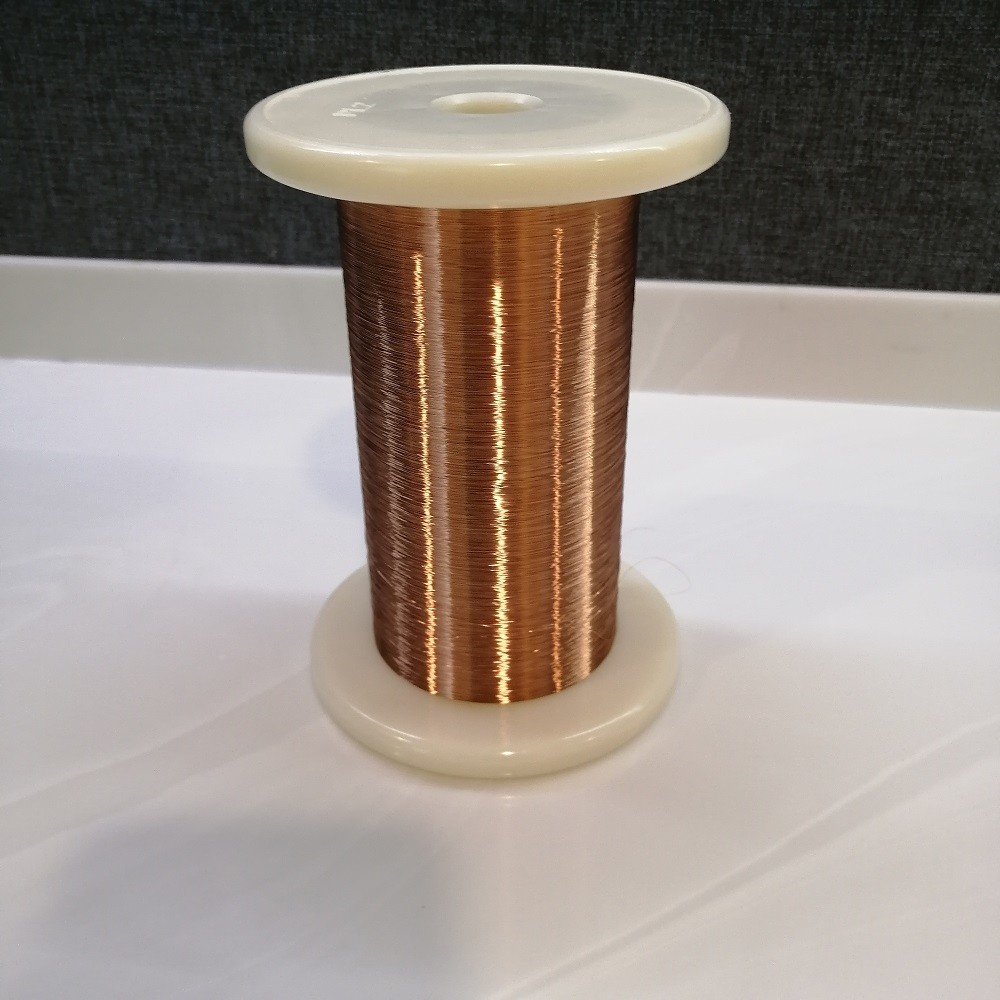

UL Enameled Magnet Wire Class 200 Polyesterimide Self Bonding Wire
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | AISVWY3-2B/200-0.08 |
| Minimum Order Quantity | 20 Kg |
| Price | Negotiation |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No | 30011221080 | Name | PE/AIW Self Bonding Enameled Copper Wires |
|---|---|---|---|
| Insualtion | Polyamideimide Composite Polyester、polyesterimide | Type | High Temperature Enameled Wire |
| Enamel Thickness | Grade 2B | Material | Pure Copper |
| Usage | Winding Wire | Advantage | Good Chemical Resistance |
| High Light | UL Enameled Magnet Wire,Polyesterimide Self Bonding Wire,Enameled Magnet Wire Class 200 |
||
Product Description
UL Certification Class 200 Polyamideimide Composite Polyester/Polyesterimide Self Bonding Wire
Features:
This enameled wire wound coil in the range of 200 ~ 240℃, after half an hour baking bonding molding;Can also be energized, but due to the wire diameter is different, the voltage and current can not be consistent, can refer to the above temperature range or determine in a certain voltage, current flow, forming coil bonding force, to determine the process parameters.
Sample testing:
For enameled wire customers, we can provide sample quality testing to ensure that our products can fulfill the customer's production needs before the customer orders.
Product quality:
The production process is subject to fine-meshed control of all product and process parameters. The effectiveness of the quality assurance measures has been confirmed by external auditors repeatedly in numerous certificates.
International certification:
Our products are all up to the international certification standards, and customers who need certification can provide international certification."
Specification
| item | value | ||
| Place of Origin | Zhejiang,China | ||
| Brand Name | CHINGCUNG | ||
| Model Number | AISVWY3-2B/200-0.08 | ||
| Type | Self bonding wires | ||
| Application | Motor, Transformer,Rectifier and such coil | ||
| Conductor Material | Copper | ||
| Insulation Material | Polyamideimide composite polyester or polyesterimide | ||
| Thermal Class | 200 | ||
| Size(mm) supply | 0.08 | ||
| Enamel thickness | Grade 2B | ||
| Color | All color supply | ||
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.
Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.
Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
