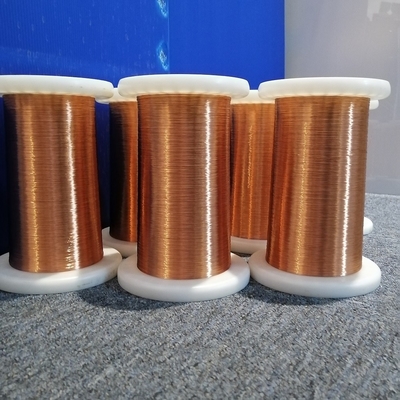

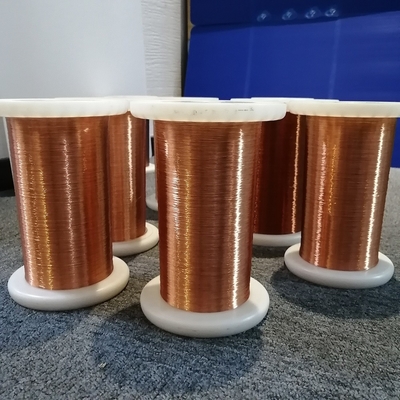

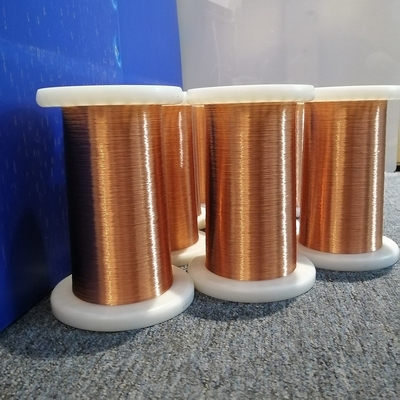

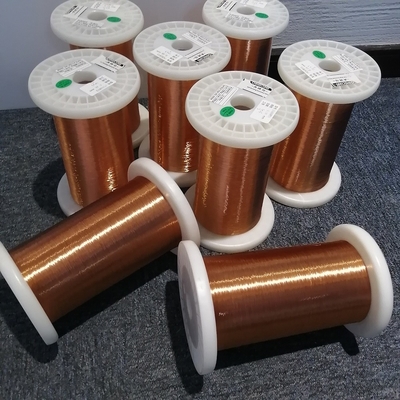

All Colors Self Adhesive Enameled Copper Winding Wire 0.22mm Diameter
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30011252220 | Product Name | Ultra Fine Self Bonding Copper Wire |
|---|---|---|---|
| Conductor Diameter | 0.22mm | Bonding Method | Alcohol Soluble |
| Class | 155℃ | Applications | Transformers / Lgnition Coils |
| Insulation Material | Polyester | Certification | ISO9001/ISO14001 |
| High Light | ISO14001 0.22mm Enameled Wire,0.22mm Diameter Enamelled Round Copper Wire,Enameled Copper Round Wire Polyester |
||
Product Description
Enameled Wire In All Colors Self Adhesive Enameled Copper Winding Wire
In the process of winding, the coil is heated by electrification so as to achieve the effect of self-bonding. The voltage gradually increases according to the diameter of the wire, so that heat is generated inside the wire, so that the product forms a self-bonding method. The heat dissolves from the stick line and the alcohol dissolves from the stick line comparison, the material of the paint is not the same, generally speaking the heat dissolves the strength of the alcohol dissolves the strength is high, not easy to soften the loose circle, the winding efficiency is high. Star technology winding equipment is suitable for alcohol dissolution and hot air curing, high degree of automation, fine control, winding coil line neat, high precision, coil can reach mirror effect.
The application of self-adhesive enameled wire in motor windings shows that the motor windings made by self-adhesive enameled wire can meet the technical requirements of the corresponding motor and have reliable performance.Self-adhesive enameled wire can be used to manufacture motor windings, which can omit the process of soaking, save energy, eliminate pollution and reduce labor intensity. It has good technical and economic effect and is worthy of popularization and application.
Specification:
| Model Number | PESVW-GB/155-0.22 | Place of Origin | Zhejiang,China |
| Conductor Material | Copper | Brand Name | CHINGCUNG |
| Conductor Diameter | 0.22mm | Feature | Excellent Film Adhesion |
| Bonding Method | Alcohol Soluble | Delivery Time | 3-10 work days |
| Thermal Class | 155 | Application | Motor Winding Wire |
| Film Grade | GB | Packing | Plastic Spool |
| Insulation | Polyester | OEM | Support |
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.
Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.
Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
